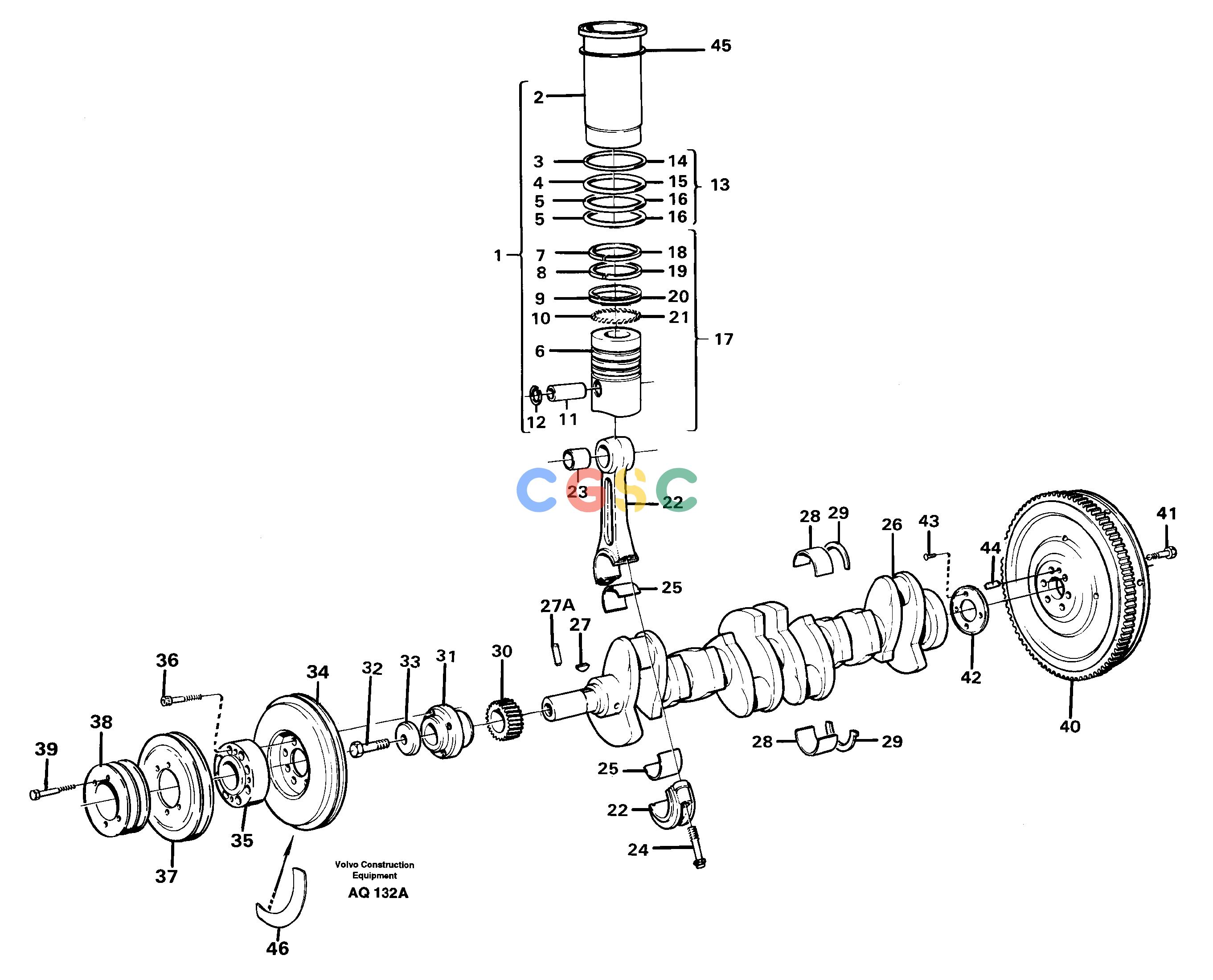

沃尔沃零件查询L120C Crankshaft and related partsS/N 11319-SWE, S/N 61677-USA, S/N 70075-BRA NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
756 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE275641
|
[6] |
Cylinder liner kit
|
ENG - 97292
|
| |
VOE276900
|
[6] |
Cylinder liner kit
|
ENG 97293 -
|
| 2. |
VOE3978530
|
[1] |
Cylinder Liner
|
|
| 3. |
VOE271159
|
[1] |
Sealing ring kit
|
|
| 4. |
VOE471419
|
[1] |
Sealing ring
|
|
| 5. |
VOE471424
|
[2] |
Oil feed pipe
|
|
| 6. |
VOE477470
|
[1] |
Piston
|
|
| 7. |
VOE864158
|
[1] |
Compression ring
|
|
| 8. |
|
[1] |
Piston ring
|
|
| 9. |
|
[1] |
Oil ring
|
|
| 10. |
|
[1] |
Expanding ring
|
|
| 11. |
VOE3978589
|
[1] |
Gudgeon pin
|
|
| 12. |
VOE914525
|
[2] |
Retaining ring
|
|
| 13. |
VOE271159
|
[6] |
Sealing ring kit
|
|
| 14. |
|
[1] |
Sealing strip
|
|
| 15. |
|
[1] |
Sealing strip
|
|
| 16. |
|
[2] |
Sealing strip
|
|
| 17. |
VOE276037
|
[6] |
Piston ring kit
|
|
| 18. |
|
[1] |
Compression ring
|
|
| 19. |
|
[1] |
Piston ring
|
|
| 20. |
|
[1] |
Oil ring
|
|
| 21. |
|
[1] |
Expanding ring
|
|
| 22. |
VOE471523
|
[6] |
Connecting rod
|
|
| 23. |
VOE471364
|
[1] |
Bushing
|
|
| 24. |
VOE465815
|
[2] |
Screw
|
|
| 25. |
VOE270115
|
[6] |
Big End Brg Kit
|
STD D
|
| |
VOE270116
|
[6] |
Big End Brg Kit
|
0,25 U SZ
|
| |
VOE270117
|
[6] |
Big End Brg Kit
|
0,50 U SZ
|
| |
VOE270118
|
[6] |
Big End Brg Kit
|
0,75 U SZ
|
| |
VOE270119
|
[6] |
Big End Brg Kit
|
1,00 U SZ
|
| |
|
|
None
|
|
| 26. |
VOE24424609
|
[1] |
Crankshaft
|
ENG - 97292
|
| 27. |
VOE422253
|
[1] |
Key
|
ENG - 97292
|
| |
VOE24424609
|
[1] |
Crankshaft
|
ENG 97293 -
|
| 27A. |
VOE950681
|
[1] |
Pin
|
ENG 97293 -
|
| 28. |
VOE270432
|
[7] |
Main bearing kit
|
STD. ENG - 97292
|
| |
VOE276894
|
[7] |
Main bearing
|
STD, ENG 97293 -
|
| |
VOE270433
|
[7] |
Main bearing kit
|
0,25 U SZ. ENG - 97292
|
| |
VOE276895
|
[7] |
Main bearing kit
|
0.25 U SZ. ENG 97293 -
|
| |
VOE270434
|
[7] |
Main bearing kit
|
0,50 U SZ.ENG - 97292
|
| |
VOE276896
|
[7] |
Main bearing kit
|
0.50 U SZ. ENG 97293 -
|
| |
VOE270435
|
[7] |
Main bearing kit
|
0,75 U SZ. ENG - 97292
|
| |
VOE276897
|
[7] |
Main bearing kit
|
0.75 U SZ. ENG 97293 -
|
| |
VOE270436
|
[7] |
Main bearing kit
|
1,00 U SZ
|
| |
VOE276898
|
[7] |
Main bearing kit
|
1.00 U SZ. ENG 97293 -
|
| |
VOE270437
|
[7] |
Main bearing kit
|
1,25 U SZ. ENG - 97292
|
| |
VOE276899
|
[7] |
Main bearing kit
|
1.25 U SZ. ENG 97293 -
|
| 29. |
VOE276754
|
[1] |
Thrust washer
|
STD. ENG - 97292
|
| |
VOE276890
|
[1] |
Thrust washer
|
STD, ENG 97293 -
|
| |
VOE276755
|
[1] |
Thrust washer
|
0,1 O SZ
|
| |
VOE276891
|
[1] |
Thrust washer
|
0,1 U SZ, ENG 97293 -
|
| |
VOE276756
|
[1] |
Thrust washer
|
0,2 O SZ
|
| |
VOE276892
|
[1] |
Thrust washer
|
0.2 U SZ. ENG 97293 -
|
| |
VOE276757
|
[1] |
Thrust washer
|
0,3 O SZ
|
| |
VOE276893
|
[1] |
Thrust washer
|
0.3 U SZ. ENG 97293 -
|
| 30. |
VOE471528
|
[1] |
Gear
|
|
| 31. |
VOE465779
|
[1] |
Hub
|
|
| 32. |
VOE470366
|
[1] |
Screw
|
|
| 33. |
VOE420124
|
[1] |
Washer
|
|
| 34. |
VOE421515
|
[1] |
Vibration damper
|
|
| 35. |
VOE4772218
|
[1] |
Hub
|
|
| 36. |
VOE4772247
|
[8] |
Screw
|
|
| 37. |
VOE4772217
|
[1] |
Pulley
|
For AC.
|
| 38. |
VOE4772236
|
[1] |
Pulley
|
|
| 39. |
VOE13965187
|
[4] |
Screw
|
|
| 40. |
VOE11030882
|
[1] |
Flywheel
|
|
| |
VOE420794
|
[1] |
Gear ring
|
|
| 41. |
VOE465815
|
[6] |
Screw
|
|
| 42. |
VOE786589
|
[1] |
Deflector
|
|
| 43. |
VOE905654
|
[4] |
Drive screw
|
|
| 44. |
VOE950677
|
[1] |
Pin
|
|
| 45. |
VOE466878
|
[REQ] |
Shim
|
THICK = 0,12
|
| |
VOE466114
|
[REQ] |
Shim
|
THICK = 0,20
|
| |
VOE466183
|
[REQ] |
Shim
|
THICK = 0,30
|
| |
VOE466184
|
[REQ] |
Shim
|
THICK = 0,50
|
| 46. |
VOE467834
|
[1] |
Sign
|
|
