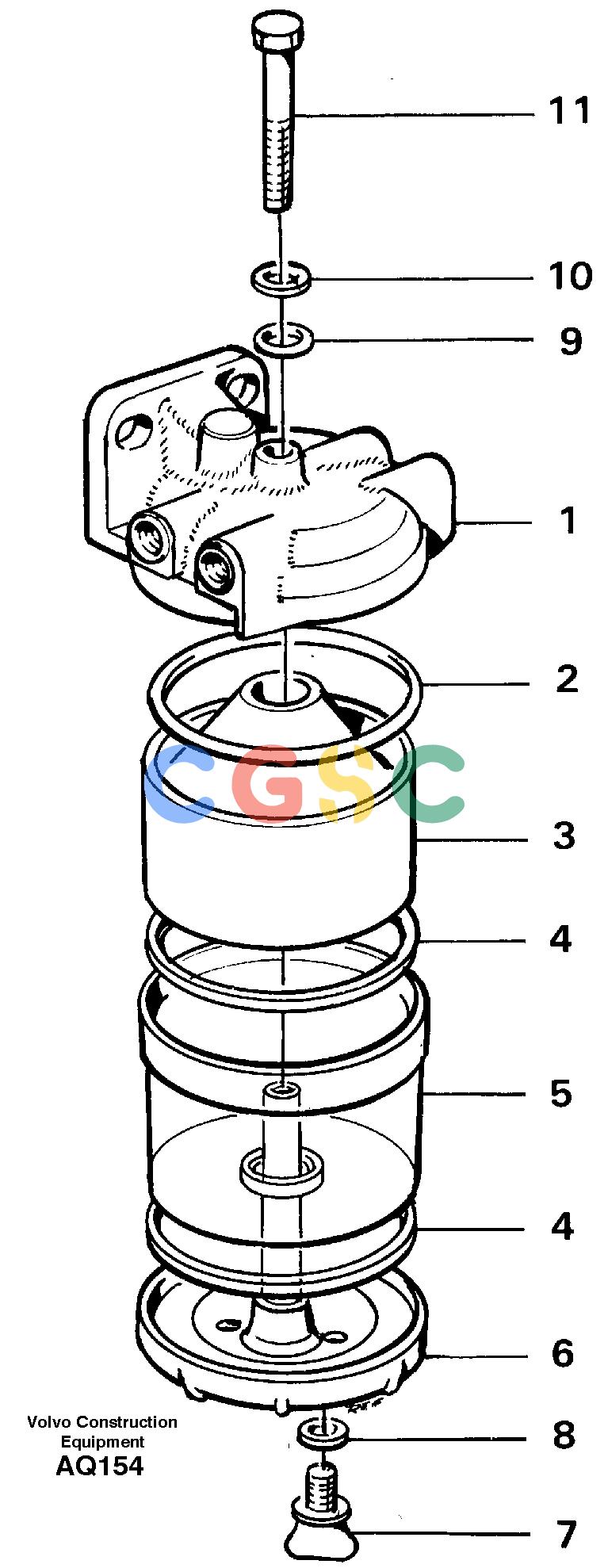

沃尔沃零件查询L120C Slurry separatorS/N 11319-SWE, S/N 61677-USA, S/N 70075-BRA NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
650 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE4880463
|
[0001] |
Water separator
|
|
| 1. |
|
[0001] |
Cover
|
|
| 2. |
VOE1695001
|
[0001] |
Gasket
|
|
| 3. |
VOE829666
|
[0001] |
Separator
|
|
| 4. |
VOE1695000
|
[0002] |
Gasket
|
|
| 5. |
VOE818407
|
[0001] |
Reservoir
|
|
| 6. |
VOE6213506
|
[0001] |
Base plate
|
|
| 7. |
VOE242595
|
[0001] |
Plug
|
|
| 8. |
VOE6643249
|
[0001] |
Gasket
|
|
| 9. |
VOE236570
|
[0001] |
O-ring
|
|
| 10. |
VOE6648589
|
[0001] |
Washer
|
|
| 11. |
VOE7192545
|
[0001] |
Screw
|
|
