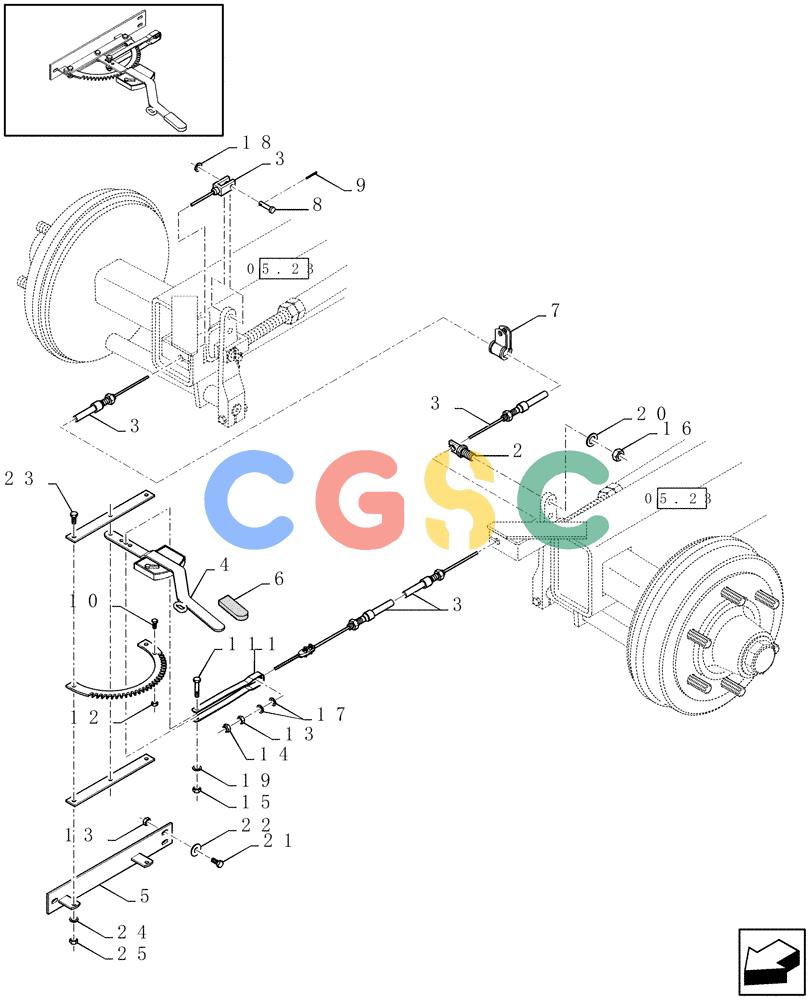

凯斯零件查询(RBX341) - SILAGE PACK ROUND BALER (3/03-12/05) (05.24[01]) - PARKING BRAKE Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
608 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84007264
|
[1] |
GUIDE
|
A
|
| 2. |
84818983
|
[1] |
PIN
|
PLO
|
| 3. |
84818985
|
[1] |
CABLE
|
PLO
|
| 4. |
84818988
|
[1] |
HANDLE
|
PLO
|
| 5. |
84818989
|
[1] |
SUPPORT
|
PLO
|
| 6. |
9839186
|
[1] |
KNOB
|
ZED
|
| 7. |
9837692
|
[3] |
CLAMP,16.67mm ID, 13.46mm Bolt Hole, P Type
|
ZED
|
| 8. |
322901
|
[1] |
PIN,10mm OD x 30mm L
|
ZED
|
| 9. |
130003
|
[1] |
COTTER PIN,3mm OD x 30mm OAL
|
ZED
|
| 10. |
86511830
|
[1] |
SCREW,Phillips Drive, Pan HD, M6 x 20mm, Cl 4.8
|
ZED
M6x20
|
| 11. |
43144
|
[1] |
BOLT,Hex, M10 x 70mm, Cl 8.8
|
NH
Superseded by part number: 87015537
|
| 12. |
412152
|
[1] |
NUT,M6 x 1, Cl 8.8
|
ZED
|
| 13. |
9706690
|
[4] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 14. |
412250
|
[1] |
NUT,M8 x 1.25, Cl 8
|
WIN
Superseded by part number: 86528579
|
| 15. |
100037
|
[1] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
|
| 16. |
412370
|
[1] |
NUT,M14 x 2, Cl 8
|
ZED
M14
|
| 17. |
378243
|
[2] |
WASHER,8.4mm ID x 21mm OD x 1.6mm Thk
|
NH
Superseded by part number: 63707, 63707, 86625263
|
| 18. |
86511323
|
[1] |
WASHER,10.5mm ID x 20mm OD x 2mm Thk
|
NH
Superseded by part number: 14496621
|
| 19. |
378244
|
[1] |
WASHER,10.5mm ID x 24mm OD x 2mm Thk
|
NH
|
| 20. |
140069
|
[1] |
WASHER,M15 x 24 x 2 Thk
|
ZED
|
| 21. |
43127
|
[3] |
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
|
NH
|
| 22. |
322358
|
[3] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 23. |
9706704
|
[3] |
BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8
|
NH
|
| 24. |
140045
|
[3] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 25. |
100016
|
[3] |
NUT,M10 x 1.5, Cl 8
|
NH
|
