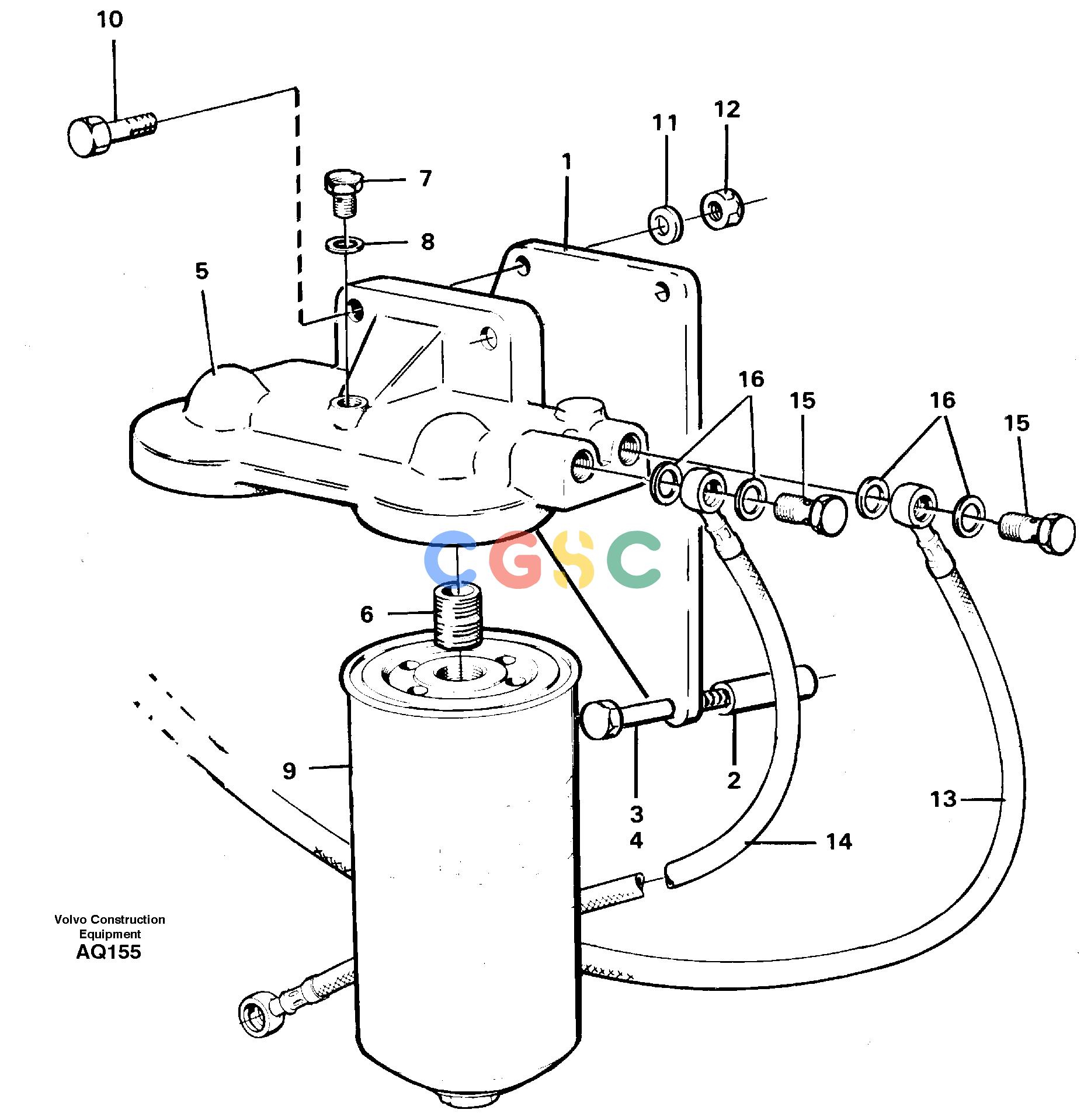

沃尔沃零件查询L120C Extra fuel filterS/N 11319-SWE, S/N 61677-USA, S/N 70075-BRA NoneNone90656Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
794 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE4898613
|
[1] |
Anchorage
|
|
| 2. |
VOE930456
|
[3] |
Spacer ring
|
E PROD
|
| |
VOE930457
|
[3] |
Spacer ring
|
L PROD
|
| 3. |
VOE13955311
|
[3] |
Screw
|
E PROD
|
| |
VOE955312
|
[3] |
Hexagon screw
|
L PROD
|
| 4. |
VOE13955894
|
[3] |
Washer
|
|
| 5. |
VOE787029
|
[1] |
Cover
|
|
| 6. |
VOE781644
|
[2] |
Nipple
|
|
| 7. |
VOE11000051
|
[1] |
Screw
|
|
| 8. |
VOE957171
|
[1] |
Gasket
|
|
| 9. |
VOE795210
|
[2] |
Fuel filter
|
|
| 10. |
VOE60111880
|
[2] |
Hexagon screw
|
|
| 11. |
VOE13955894
|
[2] |
Washer
|
|
| 12. |
VOE955782
|
[2] |
Hexagon nut
|
|
| 13. |
VOE4771392
|
[1] |
Fuel hose
|
E PROD
|
| |
VOE11014944
|
[1] |
Fuel hose
|
L PROD
|
| 14. |
VOE4774632
|
[1] |
Fuel hose
|
|
| 15. |
VOE60113509
|
[0002] |
Hollow screw
|
|
| 16. |
VOE13947621
|
[0004] |
Plane gasket
|
|
| |
VOE4881440
|
[0003] |
Cable tie
|
|
