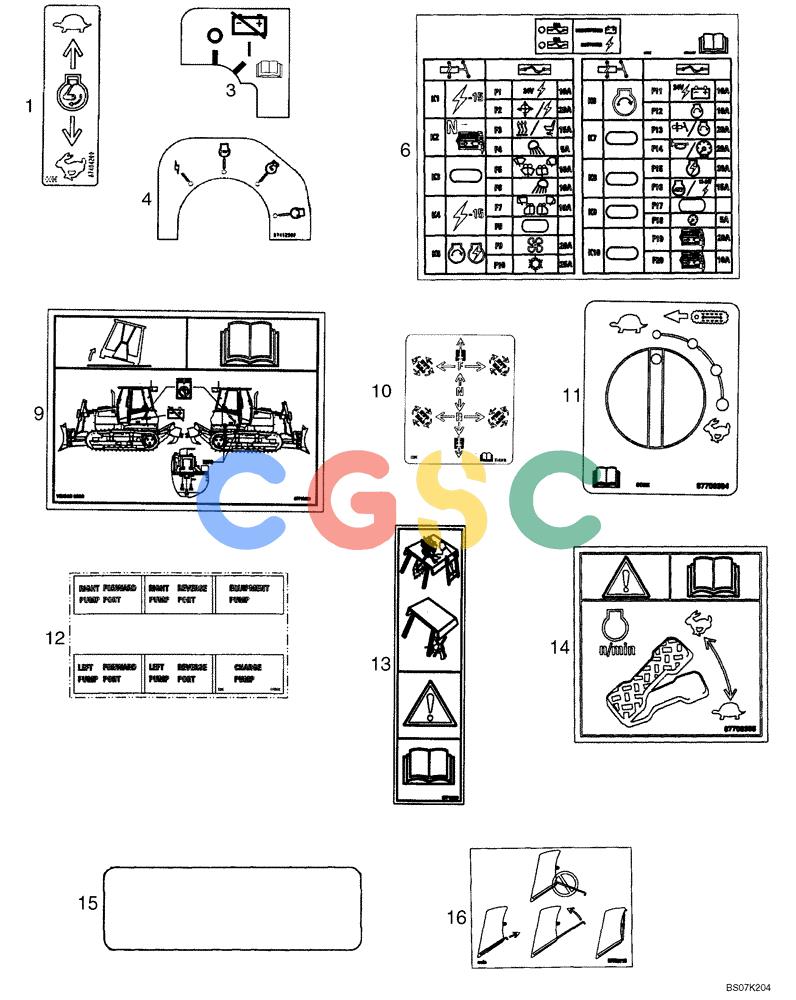

纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (09-39) - DECALS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
856 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87422188 | [1] | DECAL | BURThrottle |
| 3. | 379422A1 | [1] | DECAL | CASMaster Disconnect Switch |
| 4. | 87412595 | [1] | DECAL | BURIgnition Switch |
| 6. | 87580675 | [1] | DECAL | BURDECAL, Fuse/Relays Decal; No Longer Used, Order 84124150 Superseded by part number: 84132149 |
| 6A. | 84124150 | [1] | DECAL, Fuse/Relays Decal | |
| 9. | 87715062 | [1] | DECAL | BURDECAL, Cab Tilting Procedure |
| 10. | 87422184 | [1] | DECAL | BURForward/Neutral/Reverse |
| 11. | 87706394 | [1] | DECAL | BURDECAL, Reverse Controller |
| 12. | 87435632 | [1] | DECAL | BURDiagnostics; No Longer Used, Order 84124148 |
| 12A. | 84124148 | [1] | DECAL | BURDiagnostic Port |
| 13. | 87715063 | [1] | WARNING DECAL | BURDECAL, Warning, Do Not Modify or Repair ROPS or FOPS In Any Manner |
| 14. | 87706395 | [1] | DECAL | BURDECAL, Warning, Engine Decelerator Pedal |
| 15. | 449842A1 | [2] | REFLECTOR | BURReflector, Rectangular; 50.8 (2 in) x 160 mm (6-5/16 in) |
| 16. | 87550110 | [1] | DECAL | BURConsole Lockup Kit Instruction 50.0 mm x 66.0 mm |
