纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (09-40) - DECALS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
816 次

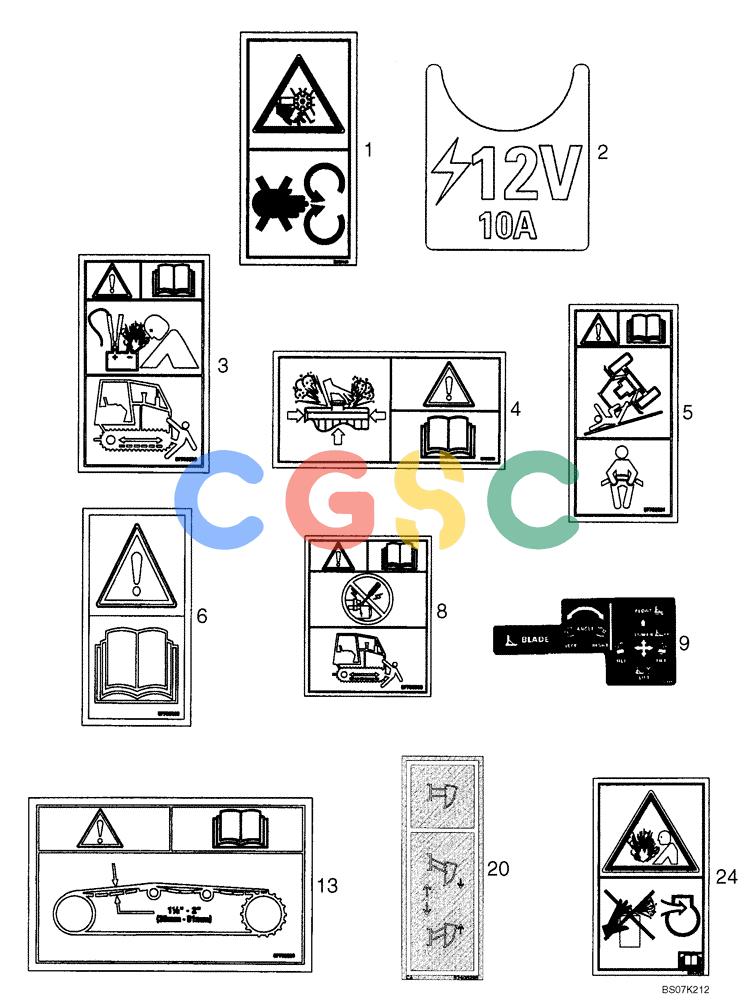

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 332511A1 | [2] | DECAL | CASWarning; Entanglement Hazard |
| 2. | 87601526 | [1] | DECAL | BURDECAL, 12 Volt |
| 3. | 87706390 | [2] | DECAL | BURDECAL, Danger; Jump Start, Battery |
| 4. | 87706392 | [1] | DECAL | BURDECAL, Warning; Radiator Cap |
| 5. | 87706391 | [1] | DECAL | BURDECAL, Warning; Do Not Jump |
| 6. | 87706389 | [1] | DECAL | BURDECAL, Warning; Read the Operator's Manual |
| 7. | 87750415 | [1] | DECAL | BURSound Level |
| 8. | 87706393 | [1] | DECAL | BURDECAL, Danger; Engine Start Warning |
| 9. | 87420954 | [1] | DECAL | BURDozer Blade Control Pattern; No Longer Used, Order 84124149 |
| 9A. | 84124149 | [1] | DECAL | BHBDECAL, Dozer Blade Control |
| 13. | 87706396 | [1] | DECAL | BURDECAL, Important; Track Tension |
| 20. | 87422190 | [1] | DECAL | BURRipper Control Pattern |
| 24. | 8603095 | [1] | WARNING DECAL | FARWarning, Explosion Hazard, Do Not Use Ether |
