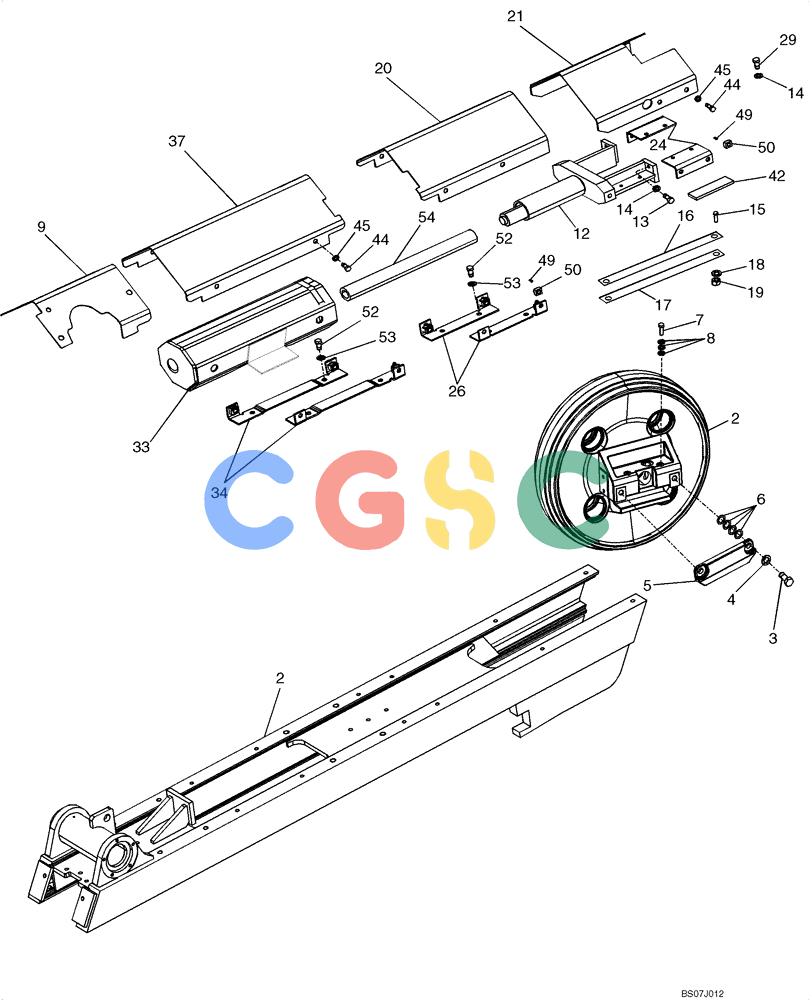

| . . | 87649103 | [2] | Kit, Track Frame Covers, XLT & LGP (Extra Long Track & Low Ground Pressure); Incl Ref. 9, 20, 21, 37 | |
| 2. | 87589400 | [2] | IDLER | BURFront, Painted, See Figure 05-05 |
| 3. | 604-20045 | [8] | BOLT,Hex, M20 x 45mm, Cl 8.8 | CASBOLT |
| 4. | 86625260 | [8] | WASHER,21.8mm ID x 37.5mm OD x 4mm Thk | FAR |
| . . | 87649097 | [4] | COVER PLATE | BURPainted; Incl. R56668, Ref 5 Superseded by part number: R56668 |
| 5. | R56668 | [4] | LARGE PLATE | CASPLATE, LARGE Unpainted |
| 6. | 87567391 | [32] | SHIM,22.8mm ID x 34.9mm OD x 0.8mm Thk | BUR |
| 7. | 627-12035 | [8] | BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd | CAS Superseded by part number: 626-12035 |
| 8. | 86625255 | [8] | WASHER,13.3mm ID x 24.5mm OD x 3mm Thk | GI |
| 9. | 87546596 | [2] | COVER | BURCOVER, Rear Track |
| 12. | 87652975 | [2] | YOKE | BURTensioner, See Figure 05-04 |
| 13. | 87584292 | [8] | BOLT,Hex, M12 x 40mm, Cl 10.9 | BRRLocking |
| 15. | 614-16070 | [4] | BOLT,Hex, M16 x 2 x 70mm, Cl 8.8, Full Thd | CAS Superseded by part number: 320246 |
| 16. | 87549688 | [8] | SHIM,31.8mm OD x 0.8mm Thk | BUR |
| 17. | 87579980 | [4] | PLATE | BHBBar, Idler Wear, With Bolt Holes |
| 19. | 832-10416 | [4] | NUT,M16 x 2, Cl 8 | CAS Superseded by part number: 412066 |
| 20. | 87546595 | [2] | COVER | BURCOVER, Front Track |
| 21. | 87546593 | [2] | COVER | BURCOVER, Yoke |
| 24. | 87567390 | [4] | BRACKET | BURBRACKET, Idler Cover Mounting |
| 26. | 87549669 | [4] | BRACKET | BURBRACKET, Front Cover |
| 27. | 814-12050 | [10] | BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8 | CAS Superseded by part number: 9706702 |
| 28. | 892-11012 | [10] | LOCK WASHER,M12 | CAS Superseded by part number: 412123 |
| 29. | 604-12030 | [8] | BOLT,Hex, M12 x 30mm, Cl 8.8 | CAS Superseded by part number: 86624975 |
| 33. | 87606556 | [2] | HOUSING ASSY. | BURHOUSING ASSY., Final Recoil |
| 34. | 87542305 | [4] | BRACKET | BURBRACKET, Recoil Mount |
| 37. | 87546594 | [2] | COVER | BURCOVER, Housing |
| 42. | 87567392 | [4] | BAR | BURBAR, Idler Wear Without Bolt Holes |
| 44. | 87563128 | [36] | LOCK BOLT,Hex, M16 x 2 x 35mm, Cl 8.8, Full Thd | BRRBOLT |
| 45. | 86625266 | [36] | WASHER,17.5mm ID x 30mm OD x 4mm Thk | GI |
| 49. | 336371A1 | [14] | PIN | CAS |
| 50. | 405737A2 | [14] | SQUARE NUT | BUR |
| 54. | 87543825 | [2] | TUBE,38.1 mm ID x 620.2 mm L | BURTUBE, Track Adjuster |
