纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (05-03) - SPROCKET, TRACK New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
825 次

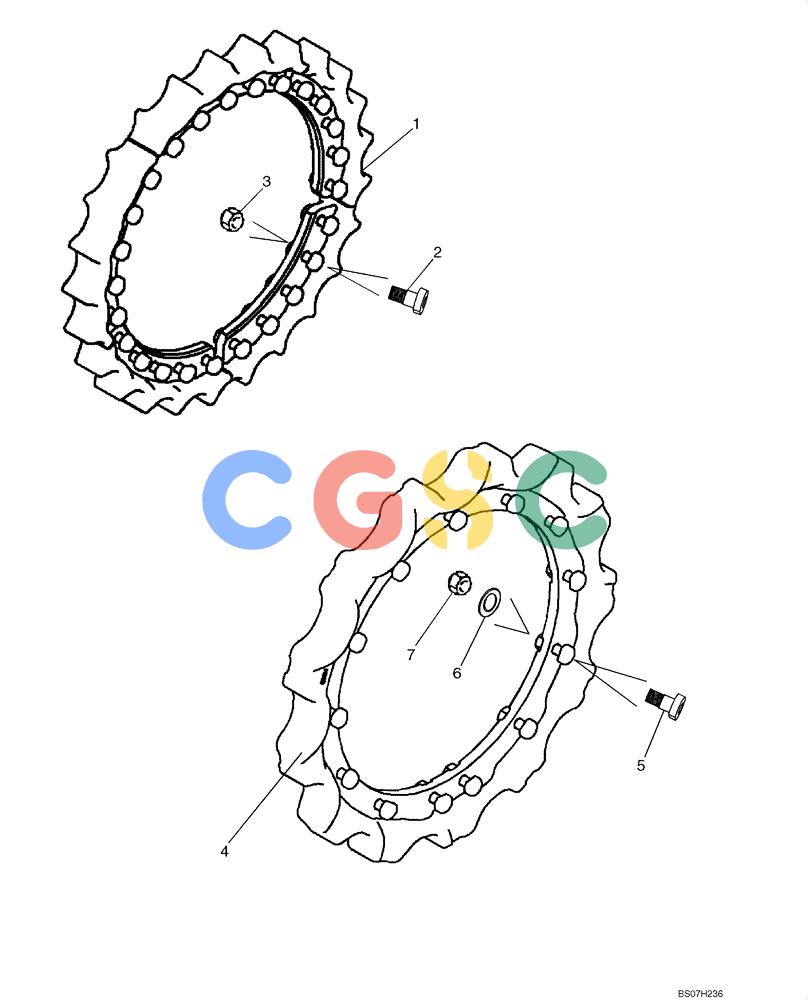

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 87649365 | [1] | SPROCKET ASSEMBLY, Used On Models With Lubricated Track, (CLT) 22, 24, 28 or 34 Inch 1 Bar Closed Grouser; Incl. Ref 1 - 3; Used In Production, Order Components | |
| 1. | 87589399 | [10] | SPROCKET | BURSEGMENTS Superseded by part number: 47680438 |
| 2. | 79074169 | [50] | BOLT,M18 x 1.5 x 60mm, Cl 10.9 | LECM18 x 60 mm |
| 3. | 79074170 | [50] | NUT | LECM18 |
| . . | 87649375 | [1] | SPROCKET ASSEMBLY, Used On Models With Extended Life Track, (CELT) 22, 24, 28 or 34 Inch 1 Bar Open, Open Grouser; Incl. Ref 4 - 7; Used In Production, Order Components | |
| 4. | 87649376 | [2] | SPROCKET | BURSPROCKET, Drive Superseded by part number: 47681893 |
| 6. | 87522124 | [26] | WASHER | BURWASHER, 18.5 x 34 x 3 mm |
