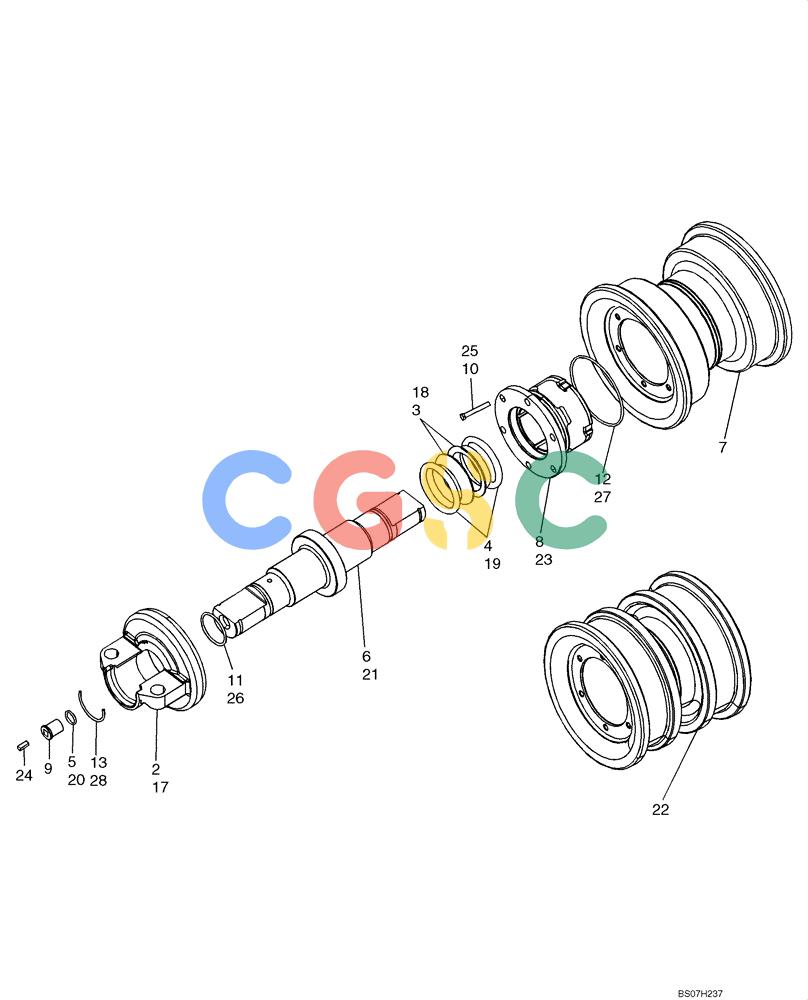

纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (05-06) - TRACK ROLLER New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
815 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 87582767 | [8] | ROLLER | BURSingle Flanged; For Long Track Models (LT); Painted; Incl Ref 1 - 13 |
| 2. | 87580616 | [2] | BRACKET, Track Roller End | |
| . . | 87580614 | [2] | SEAL,63.5mm ID x 82.4mm OD x 31.8mm Thk | BURIncl. 3, 4 |
| 3. | 87582778 | [4] | RING | BURMetal |
| 4. | 87582777 | [4] | O-RING,66mm ID x 9.5mm Width | BUR |
| 5. | 87580601 | [1] | O-RING,17.7mm ID x 1.72mm Width | BUR |
| 6. | 87580608 | [1] | SHAFT, Track Roller | |
| 7. | 87580607 | [1] | SHELL | |
| 8. | 87580609 | [2] | BUSHING ASSY. | |
| 9. | 87580603 | [1] | PLUG | BURHex Socket |
| 10. | 13-620 | [12] | BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd | CAS Superseded by part number: 88011 |
| 11. | 87582779 | [2] | O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro | BUR Superseded by part number: 272380 |
| 12. | 87421147 | [2] | O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro | IMO |
| 13. | 87580615 | [2] | SNAP RING | BUR |
| . . | 87582768 | [6] | ROLLER | BURDouble Flanged; Painted; Incl Ref 17 - 28, This Qty is Used for All Models |
| 22. | 87580619 | [1] | SHELL | |
