纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (05-05) - TRACK IDLER - MOUNTING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
838 次

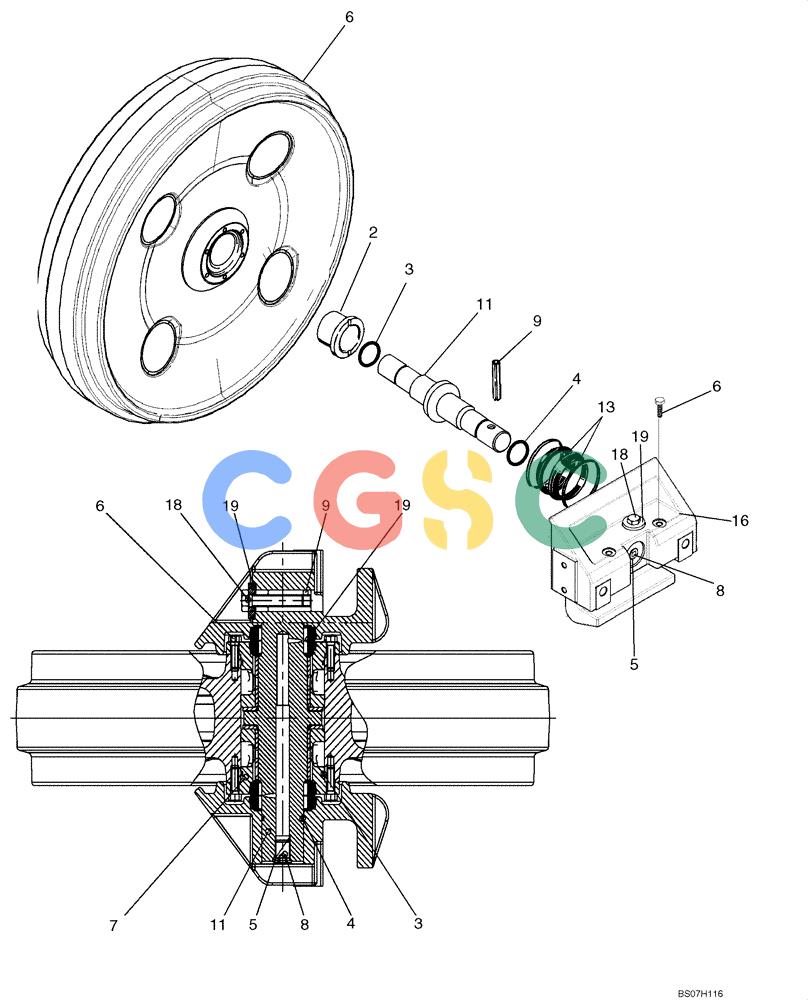

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 87589400 | [1] | IDLER | BURAssembly, Painted; Includes 87599533, Ref 1 - 19 |
| . . | 87599533 | [1] | IDLER WHEEL | BURIDLER/A, Unpainted; Includes 1 - 19 Superseded by part number: 87589400 |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONHub, Order 87589398, Inc. 2 |
| 2. | 87582782 | [2] | BUSHING | BUR |
| 3. | 87421147 | [2] | O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro | IMO |
| 4. | 87582779 | [2] | O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro | BUR Superseded by part number: 272380 |
| 5. | 87580601 | [1] | O-RING,17.7mm ID x 1.72mm Width | BUR |
| 6. | 13-620 | [12] | BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd | CAS Superseded by part number: 88011 |
| 8. | 87580603 | [1] | PLUG | BUR |
| 9. | 87582785 | [2] | PIN,26mm OD x 55mm L | BUR |
| 11. | 87582781 | [1] | IDLE SHAFT | BUR |
| . . | 87580614 | [2] | SEAL,63.5mm ID x 82.4mm OD x 31.8mm Thk | BURIncl. 13, 14 |
| 13. | 87582778 | [4] | RING | BUR |
| 14. | 87582777 | [4] | O-RING,66mm ID x 9.5mm Width | BUR |
| 16. | 87609263 | [1] | BRACKET | BURRight Hand |
| 17. | 87609262 | [1] | BRACKET | BURLeft Hand; Not Illustrated |
| 18. | 87609265 | [2] | SCREW,Hex, M14 x 70mm, Cl 8.8, Full Thd | BHBBOLT, M14 X 70 Full 8.8 PLN DIN |
| 19. | 87609264 | [2] | WASHER | BUR |
