纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (05-09[01]) - TRACK CHAIN, CASE LUBRICATED (CLT) CLOSED GROUSER - LT MODELS, 22 INCH 40 LINK New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
136 次

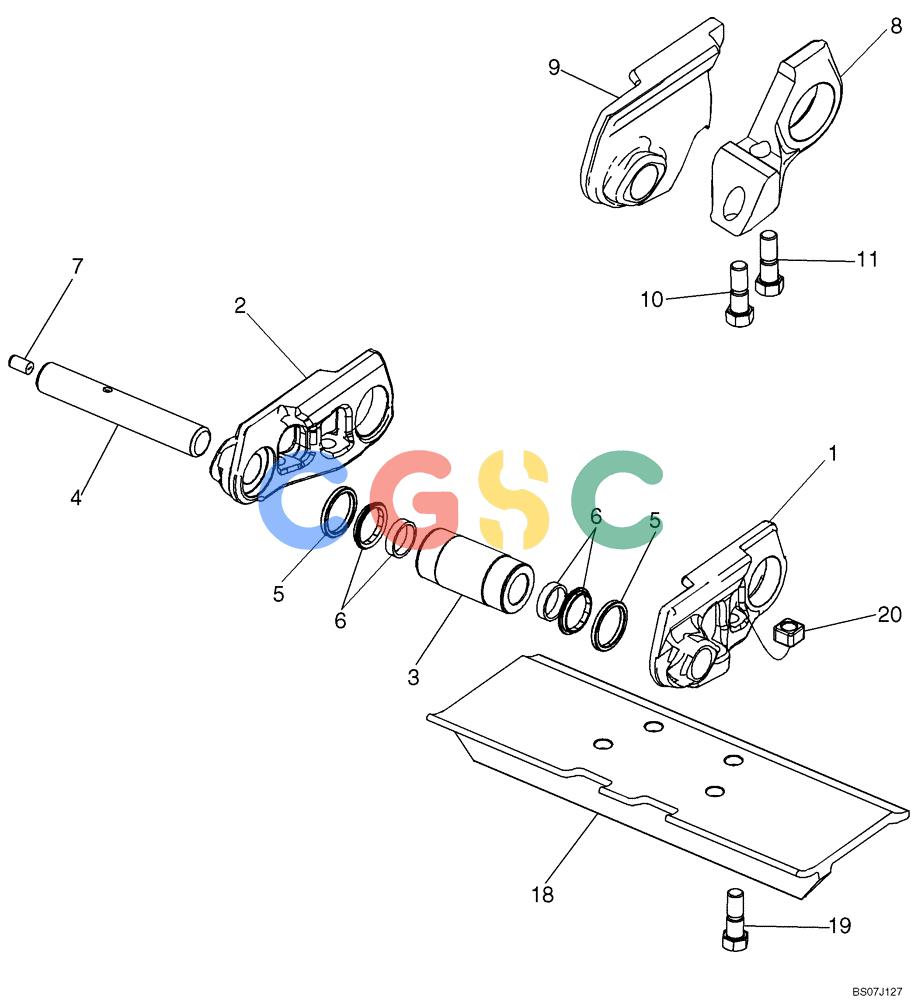

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 87582737 | [2] | CHAIN ASSY, Painted Gray; 40 Link Case Lubricated Track (CLT) 22 inch 1 Bar Closed; Incl (1) 87582733 Chain Assy; Incl Ref 1 - 21 | |
| . . | 87582733 | [1] | CHAIN ASSY, Unpainted; 40 Link CLT 22 in 1 Bar Closed; Incl. (1) 87582730 Chain Assy; Incl Ref 1 - 21 | |
| . . | 87582730 | [1] | TRACK CHAIN | BURCHAIN ASSY, Unpainted; 40 Link CLT; Incl Ref 1 - 14 |
| 1. | 87582720 | [39] | TRACK LINK | BURRight Hand Track Link |
| 2. | 87582719 | [39] | TRACK LINK | BURLeft Hand Track Link |
| 3. | 87582715 | [40] | BUSHING,38.45mm ID x 65mm OD x 131.4mm L | BURBushing |
| 4. | 87582716 | [40] | LARGE PIN | BURPIN, LARGE Pin |
| 5. | 87582717 | [80] | THRUST RING | BURThrust Ring |
| 6. | 87582727 | [80] | SEAL,55mm ID x 63mm OD x 10.7mm Thk | BURSeal |
| 7. | 87582718 | [40] | PLUG | BUROil Plug |
| . . | 87582786 | [1] | TRACK LINK | BURMASTER LINK, Service, Right Hand, Replaces 87582722 Link Used In Production; Incl Ref 8, 9 |
| 8. | NSS | [1] | NOT SERVICED SEPARATELY | CONLink, Fits Over Track Pin on Outside of Regular Track Link |
| 10. | 87582725 | [2] | BOLT | BUR3/4 NF x 75 mm Special Bolt |
| 11. | 87582724 | [2] | BOLT | BUR3/4 NF x 99.3 mm Special Bolt |
| . . | 87624375 | [1] | TRACK LINK | BURMASTER LINK, Service, Left Hand, Replaces 87582721 Link Used In Production; Incl Ref 13, 14; Not Illustrated |
| 18. | 87582770 | [1] | TRACK SHOE | BURShoe, Track, Master, 559 mm (22 in) 1 Bar Closed |
| 18. | 87582729 | [39] | TRACK SHOE | BURShoe, Track, 559 mm (22 in) 1 Bar Closed |
| 19. | 87582726 | [156] | BOLT | BUR3/4 NF x 60.4 mm Special Bolt; Quantity is for One Side |
| 20. | 87582723 | [156] | SQUARE NUT | BUR3/4 NF Square Nut; Quantity is for One Side |
| 21. | 345-49 | [1] | SEALANT | CASAdhesive, 1 ml Loctite 242; Master Link Bolts; Not Illustrated Superseded by part number: NLS |
