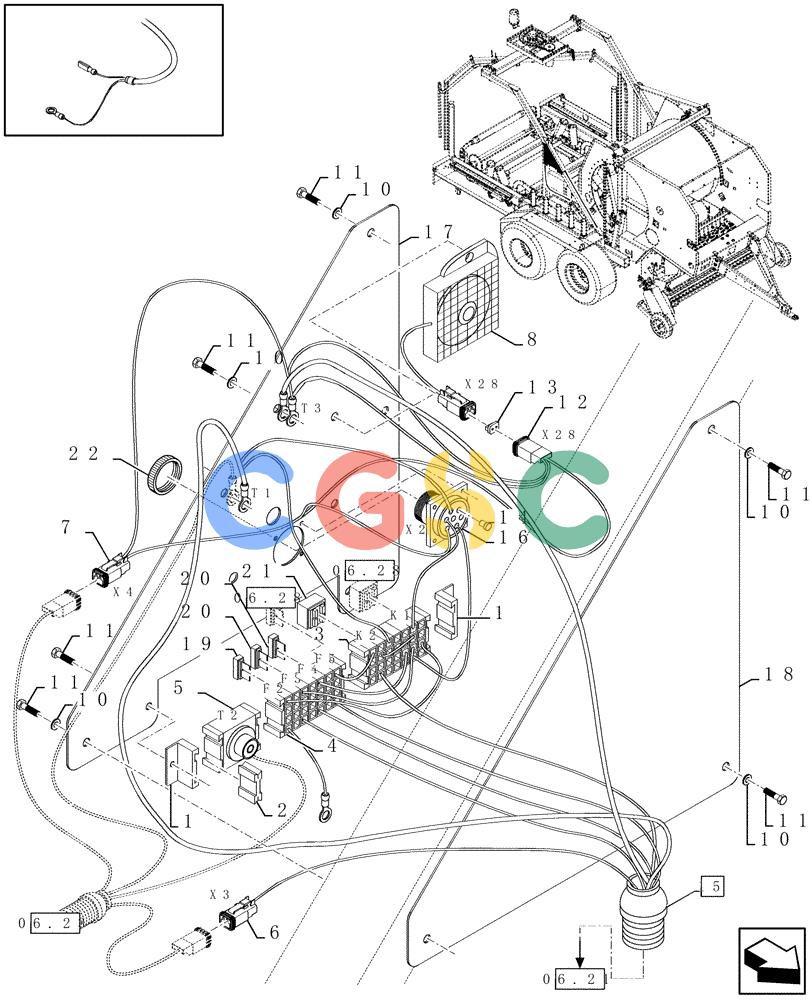

凯斯零件查询(RBX341) - SILAGE PACK ROUND BALER (3/03-12/05) (06.24[01]) - CONNECTIONS Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
150 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84818933
|
[2] |
|
|
| 2. |
84818934
|
[4] |
|
|
| 3. |
84818930
|
[1] |
|
|
| 4. |
84818931
|
[1] |
|
|
| 5. |
84818932
|
[1] |
|
|
| 6. |
84818766
|
[1] |
|
|
| 7. |
80334699
|
[1] |
WIRE CONNECTOR
|
ZED
Superseded by part number: 87680401
|
| 8. |
87010223
|
[1] |
BUZZER
|
RAC
Superseded by part number: 325258A1
|
| 9. |
832-46408
|
[2] |
NUT,M8 x 1.25, Cl 8
|
CAS
Superseded by part number: 86528579
|
| 10. |
80140016
|
[2] |
WASHER
|
ZED
8MM Superseded by part number: 86624184
|
| 11. |
80120103
|
[2] |
BOLT,M8 x 1.25 x 16mm, Cl 8.8
|
ZED
M8x16 Superseded by part number: 16043224
|
| 12. |
84074631
|
[1] |
CONTACT HOUSING,Female, 2 Pole
|
ZED
Superseded by part number: 87695582
|
| 13. |
84074638
|
[1] |
LOCKING TAB,Locking Wedge, Green
|
ZED
|
| 14. |
84068583
|
[2] |
PLUG,12 - 16 Ga, White
|
ZED
Superseded by part number: 87695652
|
| 15. |
84446643
|
[1] |
WIRE HARNESS
|
PLO
(1 to 7, Serial Range: 12-16)
|
| 16. |
84074254
|
[1] |
CONTACT HOUSING,Male, 9 Pole
|
ZED
Superseded by part number: 310057A1
|
| 17. |
84447243
|
[1] |
PLATE
|
PLO
|
| 18. |
84446915
|
[1] |
PLATE
|
PLO
|
| 19. |
84032356
|
[1] |
FUSE
|
ZED
30A Superseded by part number: 92277
|
| 20. |
89504308
|
[2] |
FUSE,Lt Blue, 15 Amp
|
ZED
15A Superseded by part number: 84090658
|
| 21. |
84000651
|
[1] |
RELAY
|
ZED
Superseded by part number: 86529089
|
| 22. |
84074633
|
[1] |
COVER
|
ZED
|
