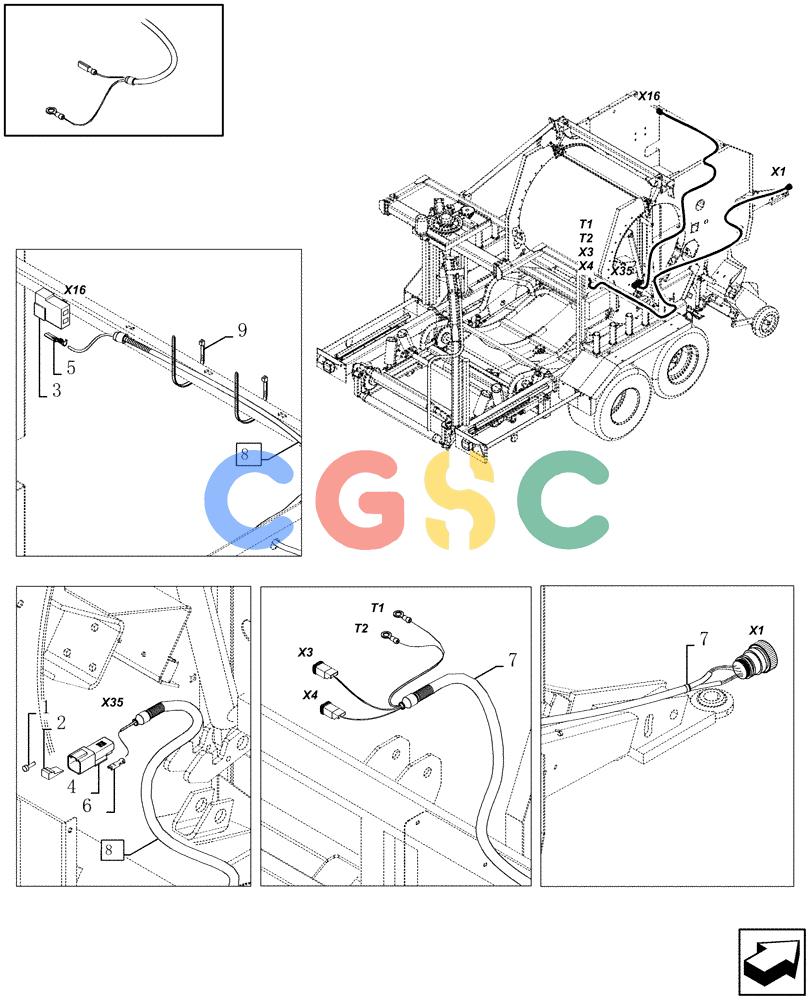

凯斯零件查询(RBX341) - SILAGE PACK ROUND BALER (3/03-12/05) (06.23[01]) - MAIN CONNECTION Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
452 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84068583
|
[1] |
PLUG,12 - 16 Ga, White
|
ZED
Superseded by part number: 87695652
|
| 2. |
86500166
|
[1] |
ELEC CONNECTOR
|
ZED
Superseded by part number: 225318C1
|
| 3. |
84038366
|
[1] |
ELEC CONNECTOR,Male
|
ZED
|
| 4. |
84074630
|
[1] |
CONTACT HOUSING,Male, 2 Pole
|
ZED
|
| 5. |
80334724
|
[1] |
TERMINAL
|
ZED
Superseded by part number: 334724
|
| 6. |
86500035
|
[1] |
ELEC. TERMINAL PIN,Male, 0.75 - 2mm
|
GI
Superseded by part number: 87695607
|
| 7. |
84446912
|
[1] |
WIRE HARNESS
|
PLO
|
| 8. |
84446864
|
[1] |
WIRE HARNESS
|
PLO
, Serial Range: (1-6)
|
| 9. |
NS
|
[1] |
NOT SERVICED
|
BAS
|
