神钢零件查询(PE6T04) - NISSAN DIESEL ENGINE - LK900 & LK700A W/TURBO (1/03-12/06) (04-004[01]) - FILTER-OIL, (FITTING PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
812 次

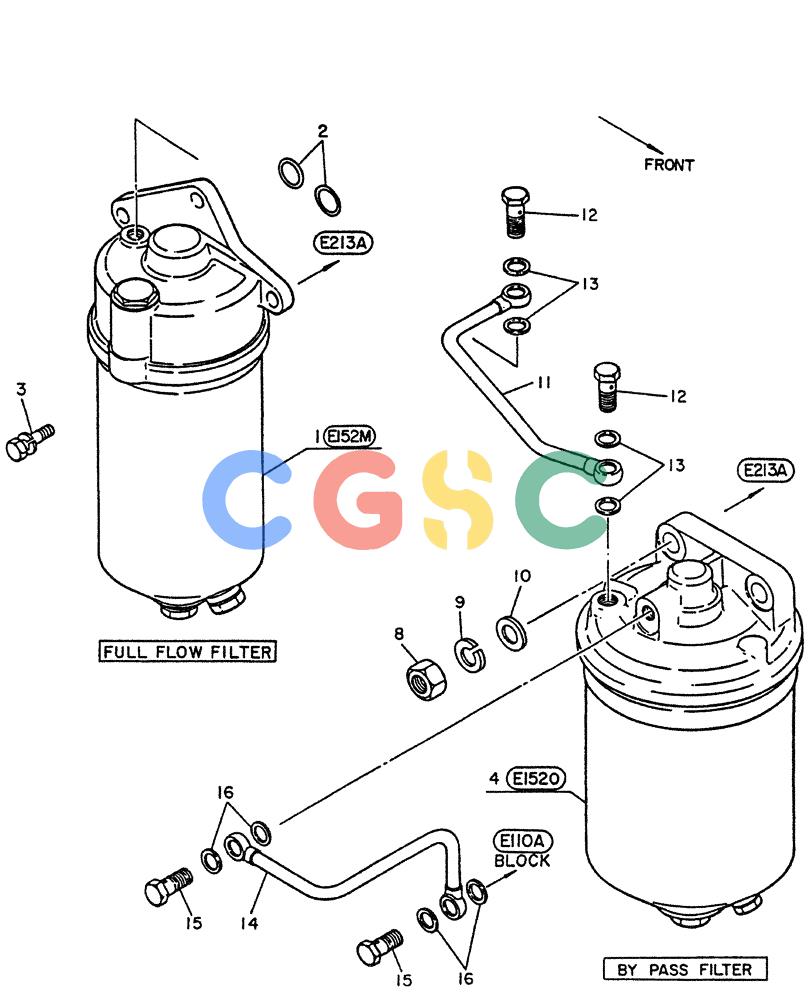

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VG1520096004 | [1] | FILTER ASSY-OIL (FULL FLOW) (TSUCHIYA MAKE) (INNER PARTS E152M) (FOR A1) | |
| 1. | VG1520096005 | [1] | FILTER ASSY-OIL (FULL FLOW) (NICHIRO MAKE) (INNER PARTS E152H) (FOR A1) | |
| 1. | VG1520096007 | [1] | FILTER ASSY FILTER ASSY-OIL (FULL FLOW) (INNER PARTS E152N (FOR B2,B3) | FILTER ASSY FILTER ASSY-OIL (FULL FLOW) (INNER PARTS E152N (FOR B2,B3) |
| 2. | VG2138790001 | [2] | RUBBER RING | KOBRING-RUBBER |
| 3. | VG0112100044 | [3] | BOLT BOLT,W/WASHER (FOR A1) | BOLT BOLT,W/WASHER (FOR A1) |
| 3. | VG0112100054 | [3] | BOLT BOLT,W/WASHER (FOR B2,B3) | BOLT BOLT,W/WASHER (FOR B2,B3) |
| 4. | VG1520496061 | [1] | FILTER ASSY-OIL (BY PASS) (TSUCHIYA MAKE) (INNER PARTS E1520) (FOR A1) | |
| 4. | VG1520496002 | [1] | FILTER ASSY-OIL (BY PASS) (TSUCHIYA MAKE) (INNER PARTS E1520) (FOR A1) | |
| 4. | VG1520496011 | [1] | ENGINE OIL FILTER | KOBFILTER ASSY-OIL (BY PASS) (NICHIRO MAKE) (INNER PARTS E1520) (FOR A1) |
| 4. | VG1520496014 | [1] | FILTER | KOBFILTER ASSY-OIL (BY PASS) (INNER PARTS El520) (FOR B2,B3) |
| 5. | VG1520596004 | [1] | BRACKET-FILTER (FOR B2,B3) | |
| 6. | VG0812082528 | [4] | BOLT BOLT,W/WASHER (FOR B2,B3) | BOLT BOLT,W/WASHER (FOR B2,B3) |
| 7. | VG0115105124 | [2] | STUD | KOBSTUD (FOR B2,B3) |
| 8. | VG0891124210 | [2] | NUT NUT | NUT NUT |
| 9. | VG0891514210 | [2] | WASHER | KOBWASHER WASHER-SPRING Superseded by part number: VG089151421A |
| 10. | VG2111390005 | [2] | WASHER | KOBWASHER-PLAIN |
| 11. | VG1510496007 | [1] | TUBE-OIL (FOR A1) | |
| 12. | VG1643490000 | [2] | SPECIAL BOLT | KOBBOLT-EYE (FOR A1) Superseded by part number: 1643490000 |
| 13. | VG0135121144 | [4] | GASKET | KOBGASKET (FOR A1) |
| 14. | VG1510696000 | [1] | TUBE-OIL (FOR A1) | |
| 15. | VG1515290017 | [2] | SCREW | KOBBOLT-EYE (FOR A1) |
| 16. | VG0135121124 | [4] | GASKET | KOBGASKET (FOR A1) |
| 17. | VG1510496016 | [1] | KIT | KOBTUBE-OIL (FOR B2,B3) |
| 18. | VG1643490000 | [2] | SPECIAL BOLT | KOBBOLT-EYE (FOR B2,B3) Superseded by part number: 1643490000 |
| 19. | VG0135121144 | [4] | GASKET | KOBGASKET (FOR B2,B3) |
| 20. | VG1510696002 | [1] | INJECTION PIPE | KOBTUBE-OIL (FOR B2) |
| 20. | VG1510696006 | [1] | TUBE TUBE-OIL (FOR B3) | TUBE TUBE-OIL (FOR B3) |
| 21. | VG1515290017 | [1] | SCREW | KOBBOLT-EYE (FOR B3) |
| 22. | VG0135121124 | [4] | GASKET | KOBGASKET (FOR B2) |
| 23. | VG2031196004 | [1] | PLATE-SHIELD (FOR B2,B3) | |
| 24. | VG4879390000 | [2] | SPACER (FOR B2,B3) | |
| 25. | VG0811083062 | [2] | BOLT,W/WASHER (FOR B2,B3) | |
