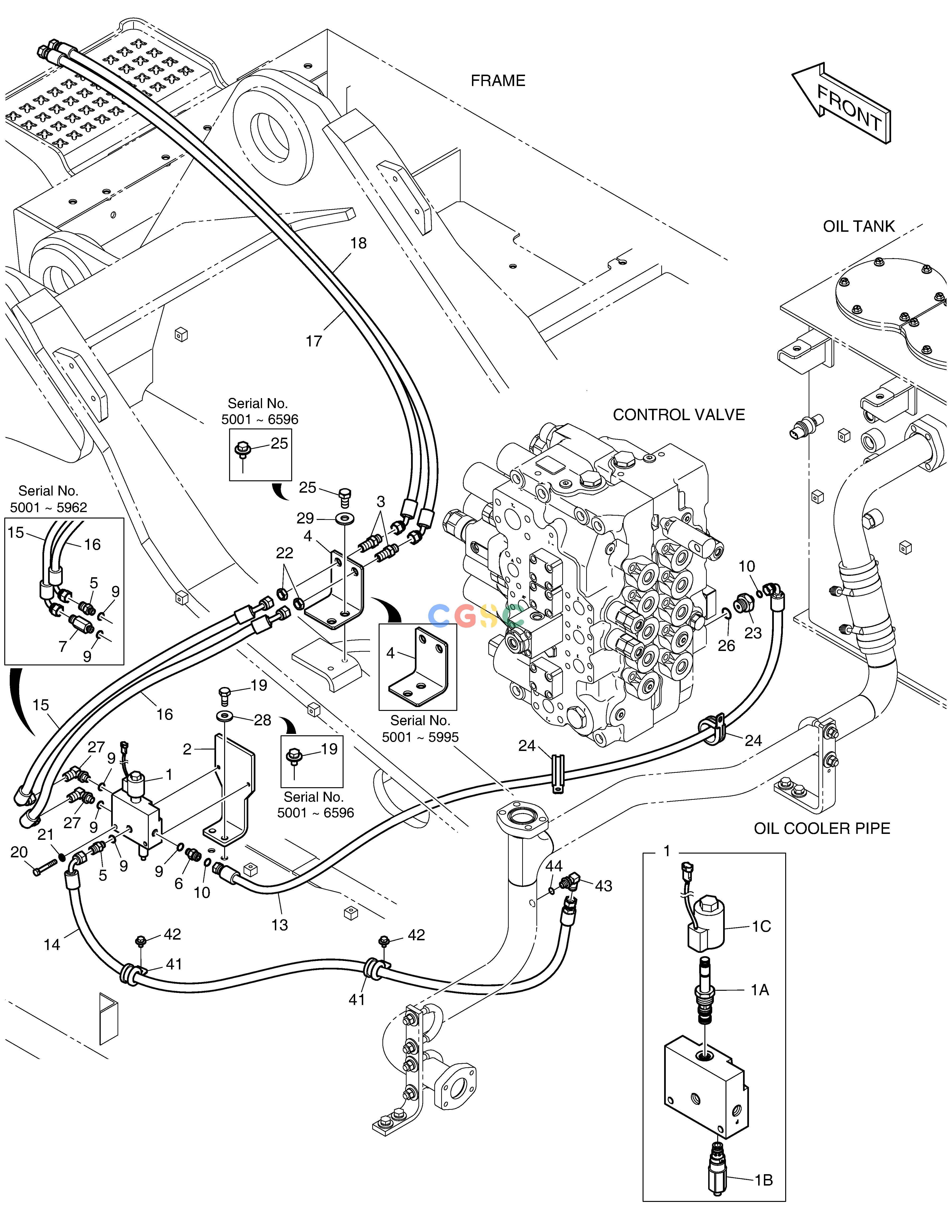

斗山零件查询MAIN PIPING - QUICK FIT DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
689 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1005116B
|
[-] |
MAIN PIPING-QUICK FIT
|
|
| -. |
420212-00699
|
[-] |
MAIN PIPING-QUICK FIT
|
|
| 1. |
426-00287
|
[1] |
VALVE;QUICK-FIT
|
426-00287B
|
| 1. |
426-00287B
|
[1] |
VALVE,QUICK-FIT
|
|
| 10. |
S8030061
|
[1] |
O-RING
|
|
| 13. |
DS2013607
|
[1] |
HOSE
|
|
| 14. |
DS2093097
|
[1] |
HOSE
|
|
| 14. |
DS2093668
|
[1] |
HOSE
|
|
| 15. |
DS2058268
|
[1] |
HOSE
|
|
| 15. |
DS2058318
|
[1] |
|
|
| 16. |
DS2058269
|
[1] |
HOSE
|
|
| 16. |
DS2058319
|
[1] |
|
|
| 17. |
DS2054350
|
[1] |
HOSE
|
|
| 18. |
DS2054351
|
[1] |
HOSE
|
|
| 19. |
DS0025017
|
[2] |
BOLT
|
|
| 19. |
S0512066
|
[2] |
. BOLT
|
|
| 1A. |
410135-00109
|
[1] |
. VALVE,SOLENOID
|
|
| 1B. |
410126-00019
|
[1] |
. VALVE,REDUCING
|
|
| 1C. |
300715-00127
|
[1] |
|
|
| 2. |
195-03123E
|
[1] |
BRACKET
|
|
| 20. |
S0556466
|
[2] |
BOLT
|
|
| 21. |
S5102503
|
[2] |
. WASHER
|
|
| 22. |
121-00010D1
|
[2] |
NUT
|
|
| 23. |
DS2404024
|
[1] |
ADAPTER
|
|
| 24. |
124-00208D7
|
[2] |
CLIP
|
|
| 25. |
DS0025019
|
[2] |
BOLT
|
|
| 25. |
S0515066
|
[2] |
BOLT
|
|
| 26. |
S8000231
|
[1] |
O-RING
|
|
| 27. |
2181-1702D3
|
[2] |
ELBOW
|
|
| 28. |
120804-00078
|
[2] |
WASHER
|
|
| 29. |
120804-00079
|
[2] |
WASHER
|
|
| 3. |
181-00078D1
|
[2] |
ADAPTER
|
|
| 4. |
K1002573B
|
[1] |
PLATE
|
110406-00130
|
| 4. |
110406-00130
|
[1] |
PLATE
|
|
| 41. |
124-00208D3
|
[2] |
CLIP
|
|
| 42. |
K1001029
|
[2] |
BOLT
|
|
| 43. |
2181-1702D3
|
[1] |
ELBOW
|
|
| 44. |
S8000111
|
[1] |
O-RING
|
|
| 5. |
2181-1126D85
|
[2] |
ADAPTER
|
|
| 5. |
2181-1126D85
|
[1] |
ADAPTER
|
|
| 6. |
2181-4133D40
|
[1] |
ADAPTER
|
|
| 7. |
2181-1126D31
|
[1] |
ADAPTER
|
|
| 9. |
S8000111
|
[4] |
O-RING
|
|
