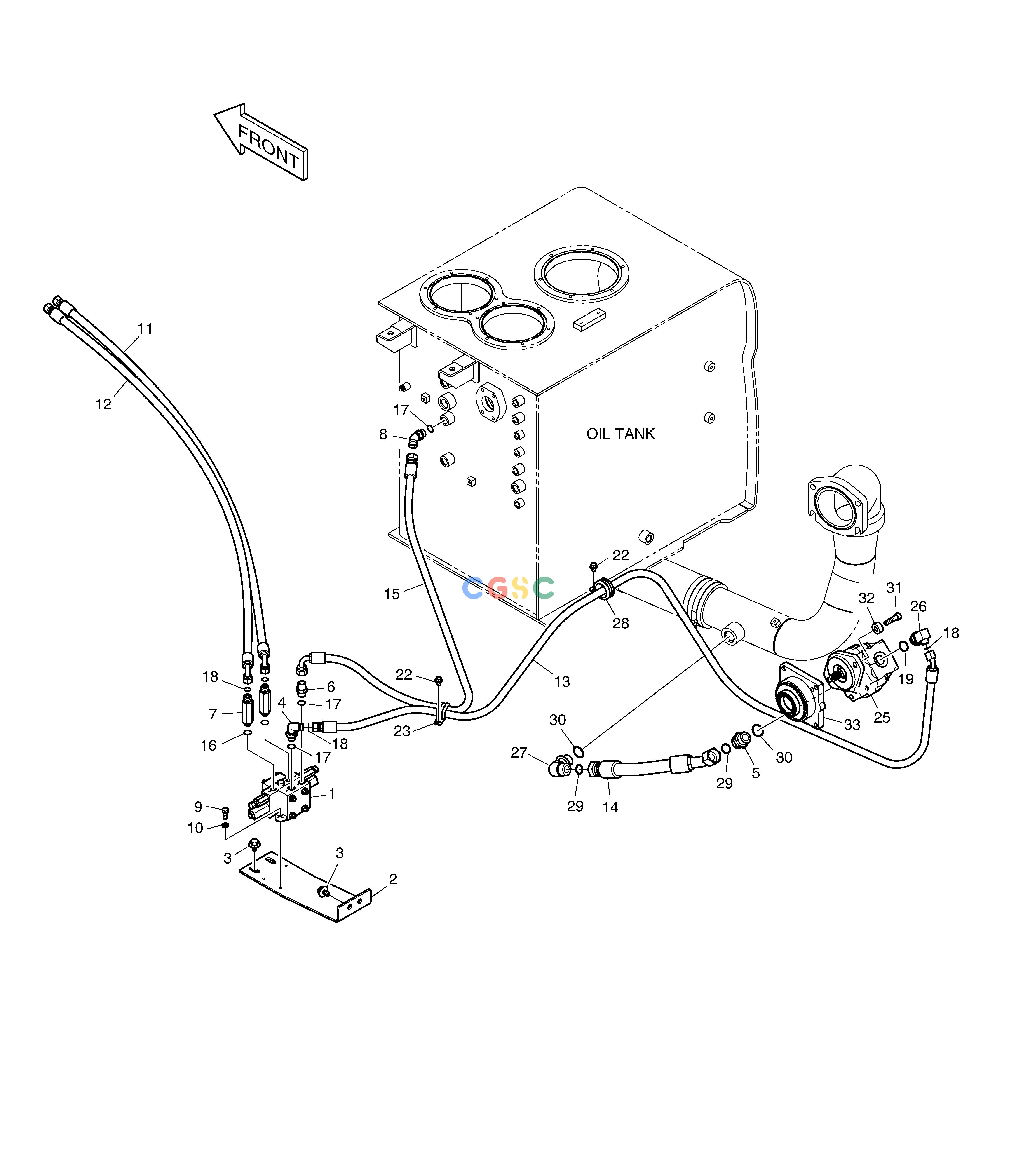

斗山零件查询MAIN PIPING - ROTATING DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
785 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1005115C
|
[-] |
MAIN PIPING-ROTATING
|
|
| -. |
420212-13278
|
[-] |
|
|
| 1. |
426-00284B
|
[1] |
VALVE;ONE SPOOL
|
|
| 10. |
S5102503
|
[3] |
. WASHER
|
|
| 10. |
S5110503
|
[3] |
WASHER
|
|
| 11. |
DS2013674
|
[1] |
HOSE
|
|
| 12. |
DS2013675
|
[1] |
HOSE
|
|
| 13. |
DS2012281
|
[1] |
HOSE
|
|
| 14. |
DS2012282
|
[1] |
HOSE
|
|
| 15. |
DS2055887
|
[1] |
HOSE
|
|
| 16. |
S8000141
|
[2] |
O-RING
|
|
| 17. |
S8000181
|
[3] |
O-RING
|
|
| 18. |
S8030081
|
[4] |
O-RING
|
|
| 19. |
S8000231
|
[1] |
O-RING
|
|
| 2. |
K1006400B
|
[1] |
BRACKET
|
|
| 22. |
K1001029
|
[2] |
BOLT
|
|
| 23. |
124-00209D1
|
[1] |
CLIP
|
|
| 25. |
K1007973
|
[1] |
PUMP;GEAR
|
|
| 26. |
DS2304014
|
[1] |
ELBOW
|
|
| 27. |
2181-2815D1
|
[1] |
ELBOW
|
DS2304004
|
| 27. |
DS2304004
|
[1] |
ELBOW
|
|
| 28. |
124-00208D7
|
[1] |
CLIP
|
|
| 29. |
S8030161
|
[2] |
O-RING
|
|
| 3. |
DS0025019
|
[4] |
BOLT
|
|
| 30. |
S8000291
|
[2] |
O-RING
|
|
| 31. |
S2215566
|
[2] |
BOLT;SOCKET
|
|
| 32. |
K1007011
|
[2] |
SPACER
|
|
| 33. |
K1007517
|
[1] |
POWER TAKE OFF
|
|
| 4. |
2181-2815D3
|
[1] |
ELBOW
|
DS2304007
|
| 4. |
DS2304007
|
[1] |
ELBOW
|
|
| 5. |
2181-4133D6
|
[1] |
ADAPTER
|
DS2232004
|
| 5. |
DS2232004
|
[1] |
ADAPTER
|
|
| 6. |
2181-1126D6
|
[1] |
ADAPTER
|
|
| 7. |
DS2232108
|
[2] |
ADAPTER
|
|
| 8. |
2181-2419D3
|
[1] |
ELBOW
|
|
| 9. |
S0508966
|
[3] |
BOLT
|
|
| 9. |
S2209066
|
[3] |
BOLT
|
|
