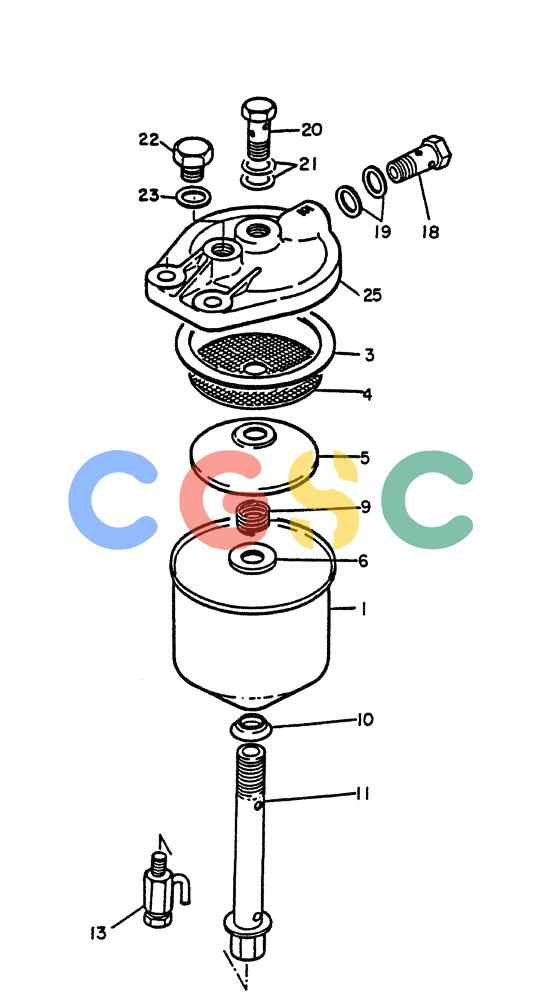

神钢零件查询(PE6T04) - NISSAN DIESEL ENGINE - LK900 & LK700A W/TURBO (1/03-12/06) (04-013) - STRAINER-FUEL, (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
248 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-25. | VG1640090107 | [1] | FUEL ELEMENT STRAINER (FOR A1) | FUEL ELEMENT STRAINER (FOR A1) |
| 1-25. | VG1640096016 | [1] | STRAINER ELEMENT | KOBFUEL (FOR A2) |
| 1. | VG1644599000 | [1] | BODY | |
| 3. | VG1644390000 | [1] | GASKET | KOB |
| 4. | VG1642199002 | [1] | SCREEN | KOB |
| 5. | VG1644899006 | [1] | BAFFLE | |
| 6. | VG1644999007 | [1] | STOP | KOB |
| 9. | VG1644999006 | [1] | SPRING | KOB |
| 10. | VG1642837701 | [1] | GASKET | KOB |
| 11. | VG1644699013 | [1] | PRESSURE SWITCH | KOBCENTER |
| 13. | VG1645299015 | [1] | COCK | KOBASSY-DRAIN (FOR A2) |
| 13. | VG1645299004 | [1] | COCK | KOBDRAIN (FOR A1) |
| 18. | VG1645499002 | [1] | SPECIAL BOLT | KOBBOLT-CONNECTOR Superseded by part number: 76550954 |
| 19. | VG0135122144 | [2] | GASKET | KOB |
| 20. | VG1645499002 | [1] | SPECIAL BOLT | KOBBOLT-CONNECTOR Superseded by part number: 76550954 |
| 21. | VG0135122144 | [2] | GASKET | KOB |
| 22. | VG1530337500 | [1] | DRAIN PLUG | KOB |
| 23. | VG0135122144 | [1] | GASKET | KOB |
| 25. | VG1644290000 | [1] | COVER | KOBUPPER |
