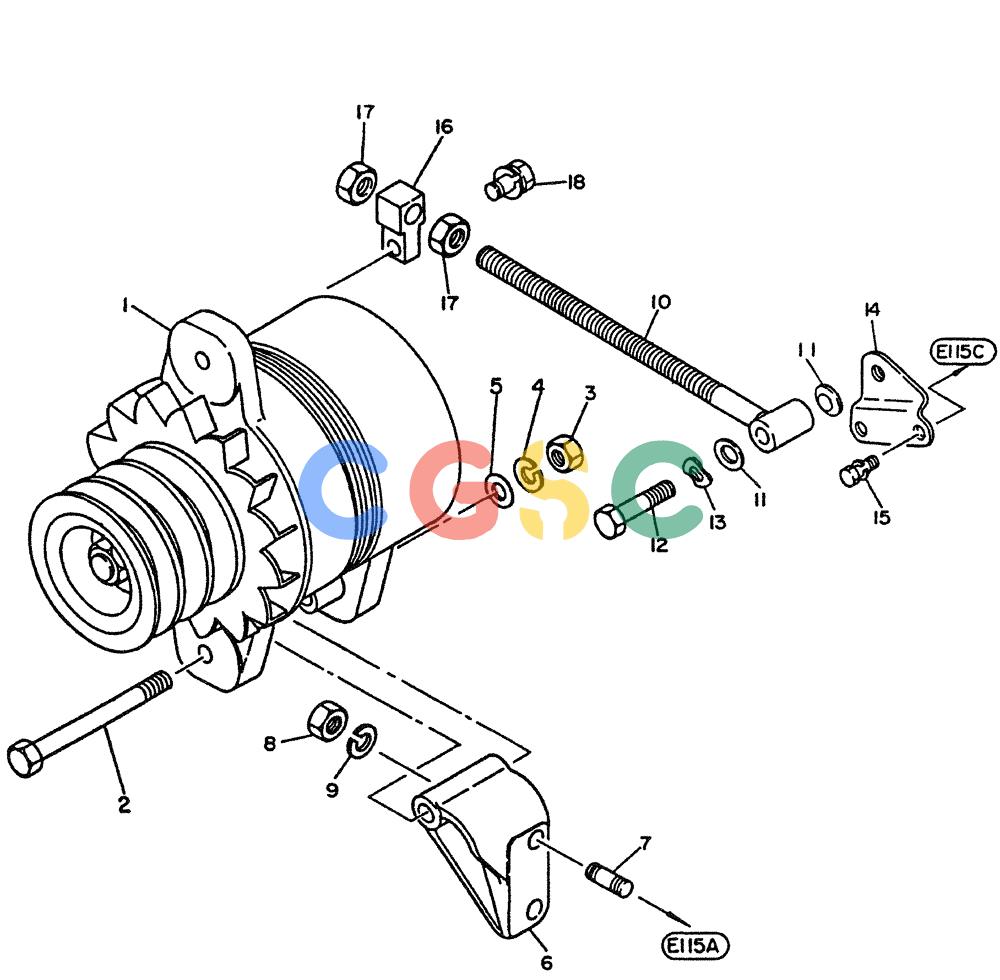

神钢零件查询(PE6T04) - NISSAN DIESEL ENGINE - LK900 & LK700A W/TURBO (1/03-12/06) (07-002) - GENERATOR, (FITTING PARTS), (NIKKO MAKE) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
773 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VG2310096269 | [1] | GENERATOR | KOB(50A-BX3) |
| 2. | VG34615T9000 | [1] | BOLT | |
| 3. | VG0891114210 | [1] | NUT | NUT |
| 4. | VG0891514210 | [1] | WASHER | KOBWASHER SPRING Superseded by part number: VG089151421A |
| 5. | VG0891544210 | [2] | WASHER PLAIN | WASHER PLAIN |
| 6. | VG2316896004 | [1] | BRACKET | |
| 7. | VG0115105104 | [2] | STUD | |
| 8. | VG0891124210 | [2] | NUT | NUT |
| 9. | VG0891514210 | [2] | WASHER | KOBWASHER SPRING Superseded by part number: VG089151421A |
| 10. | VG2317496071 | [1] | BENDING MACHINE | KOBBAR-ADJUST |
| 11. | VG2317396002 | [2] | SHIM | KOB |
| 12. | VG0812425510 | [1] | BOLT | |
| 13. | VG0132300124 | [1] | WASHER | KOBWAVE |
| 14. | VG2317696013 | [1] | BRACKET-ADJUST | |
| 15. | VG0812084528 | [2] | SCREW | KOBW/WASHER |
| 16. | VG2317597009 | [1] | BRACKET-ADJUST | |
| 17. | VG0891134610 | [2] | NUT LOCK | NUT LOCK |
| 18. | VG0812423528 | [1] | BOLT,W/WASHER | |
