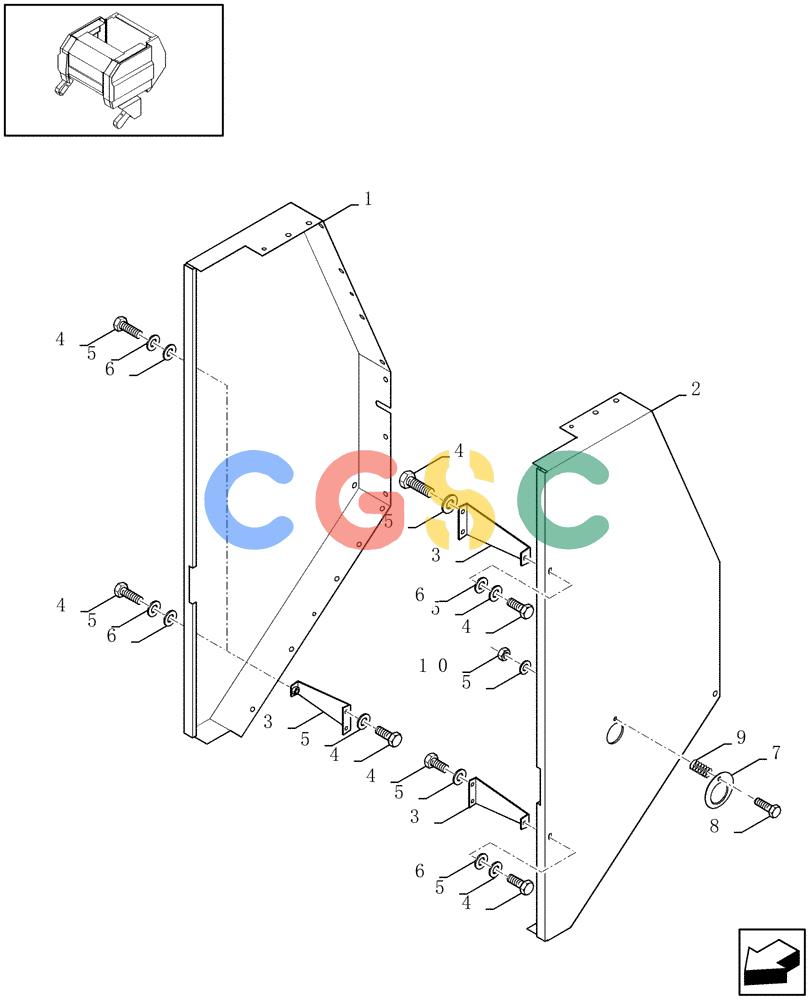

凯斯零件查询(RBX341) - SILAGE PACK ROUND BALER (3/03-12/05) (08.06[01]) - SHIELDS TAILGATE Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
614 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84822220
|
[1] |
SHIELD
|
PLO
RH
|
| 2. |
84822224
|
[1] |
SHIELD
|
PLO
LH
|
| 3. |
84024418
|
[4] |
COVER PLATE
|
PLO
|
| 4. |
16043224
|
[1] |
BOLT,Hex, M8 x 16mm, Cl 8.8
|
NH
|
| 5. |
80322358
|
[1] |
LOCK WASHER
|
ZED
8MM Superseded by part number: 322358
|
| 6. |
80378243
|
[1] |
WASHER
|
ZED
8MM Superseded by part number: 378243
|
| 7. |
80429855
|
[2] |
COVER
|
ZED
Superseded by part number: 429855
|
| 8. |
80043127
|
[2] |
SCREW,M8 x 25mm
|
ZED
M8x25 Superseded by part number: 43127
|
| 9. |
80398765
|
[2] |
SPRING
|
PLO
|
| 10. |
80100067
|
[2] |
NUT
|
ZED
M8 Superseded by part number: 86528579
|
