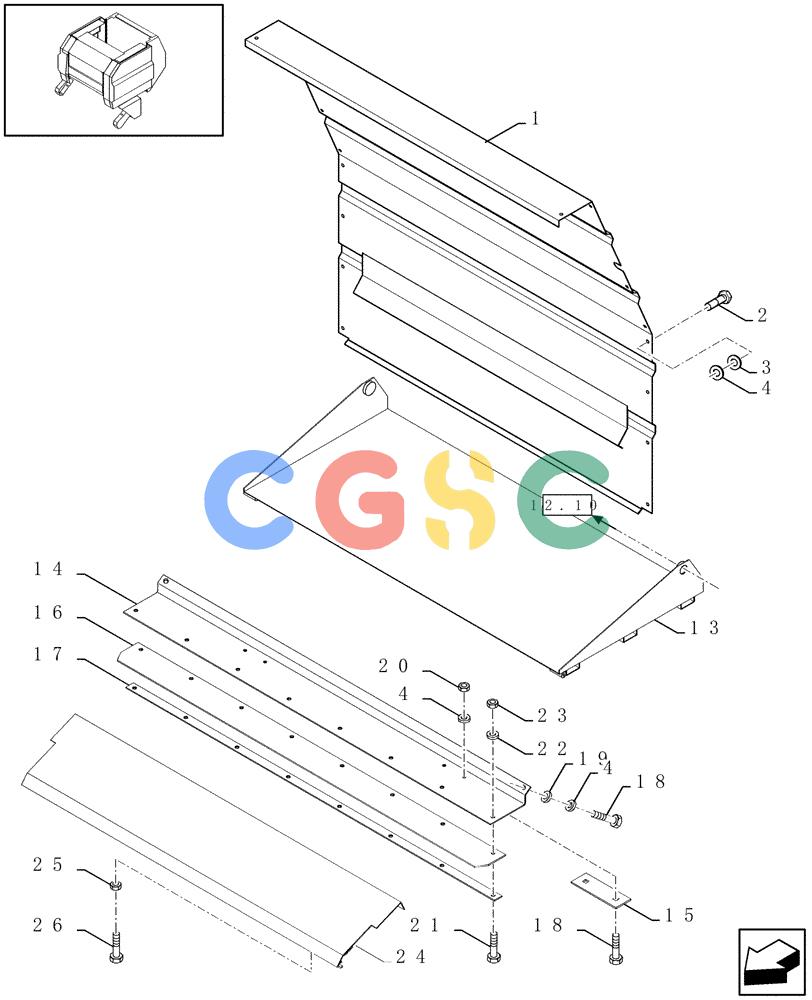

凯斯零件查询(RBX341) - SILAGE PACK ROUND BALER (3/03-12/05) (08.07[01]) - SHIELDS TAILGATE Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
285 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84822203
|
[1] |
SHIELD
|
PLO
|
| 2. |
120104
|
[1] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 3. |
80378243
|
[1] |
WASHER
|
ZED
8MM Superseded by part number: 378243
|
| 4. |
80322358
|
[1] |
LOCK WASHER
|
ZED
8MM Superseded by part number: 322358
|
| 13. |
84822243
|
[1] |
SHIELD
|
PLO
|
| 14. |
84822245
|
[1] |
CROSSRAIL
|
PLO
|
| 15. |
84024341
|
[2] |
SHIM
|
PLO
|
| 16. |
84024417
|
[1] |
PLATE
|
PLO
|
| 17. |
84100674
|
[1] |
PLATE
|
PLO
|
| 18. |
80308761
|
[6] |
SCREW,M8 x 25mm
|
ZED
M8x25 Superseded by part number: 308761
|
| 19. |
86592711
|
[2] |
WASHER,8.4mm ID x 21mm OD x 4mm Thk
|
PLO
8MM
|
| 21. |
80043139
|
[8] |
BOLT,M10 x 25mm
|
ZED
Superseded by part number: 11106231
|
| 22. |
80140045
|
[8] |
WASHER
|
ZED
10MM Superseded by part number: 140045
|
| 23. |
100016
|
[8] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 24. |
84429160
|
[1] |
PLATE
|
PLO
Superseded by part number: 84973070
|
| 25. |
80100037
|
[5] |
NUT,M10 x 1.5, Class 8
|
ZED
M10 Superseded by part number: 100037
|
| 26. |
80120069
|
[5] |
SCREW
|
ZED
M10x50 Superseded by part number: 120069
|
| 20. |
89706690
|
[1] |
NUT,M8, Cl 8
|
ZED
Superseded by part number: 43362
|
