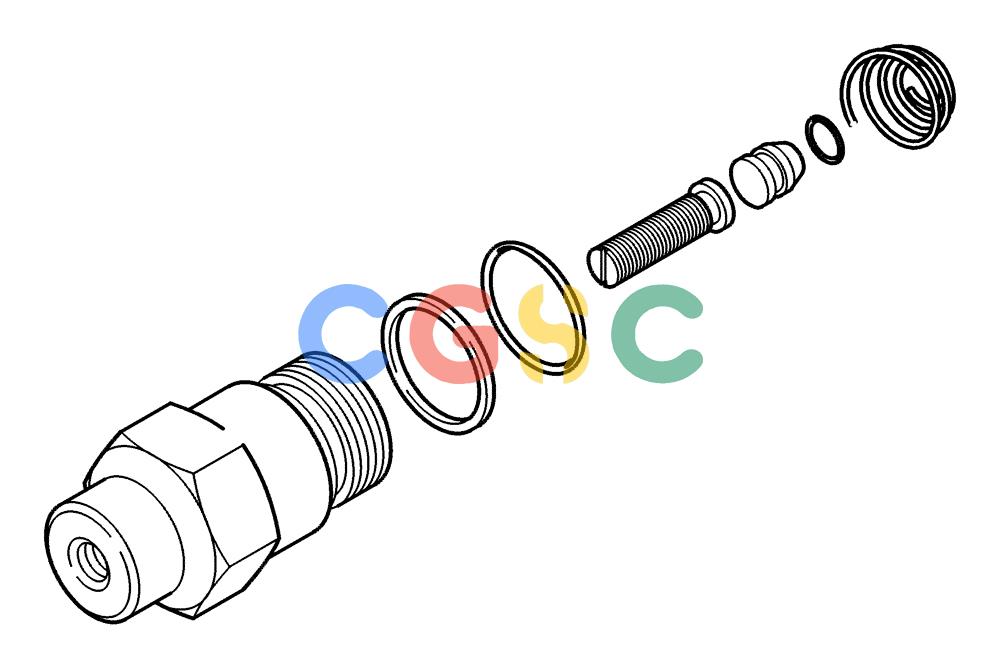

纽荷兰零件查询(DC100) - CRAWLER DOZER (N.A. VERSION) (4/00-) (2.325[04B]) - HYDROSTATIC DRIVE PUMPS - HYD. LIMIT VALVE DC100 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
320 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76609842 | [1] | HYDRAULIC VALVE | MACReplaces 420614A1 Superseded by part number: 47628203 |
| 105. | 1456665 | [1] | SPRING | BERReplaces 420608A1 |
| 106. | 1456666 | [1] | SPRING | BERReplaces 420610A166 Superseded by part number: 285921A1 |
| 107. | 1481988 | [1] | SET SCREW | BERReplaces 420611A1 |
| 108. | 8486167 | [1] | SET SCREW | BERReplaces 420612A1 |
| 109. | 971901 | [1] | O-RING | BERReplaces 420615A1 Superseded by part number: 73170756 |
| 110. | 2976143 | [1] | O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro | BER Superseded by part number: 86512844 |
| 111. | 8487655 | [1] | NUT | BERReplaces 420619A1 |
| 112. | 1472253 | [1] | RING | BERReplaces 420620A1 |
