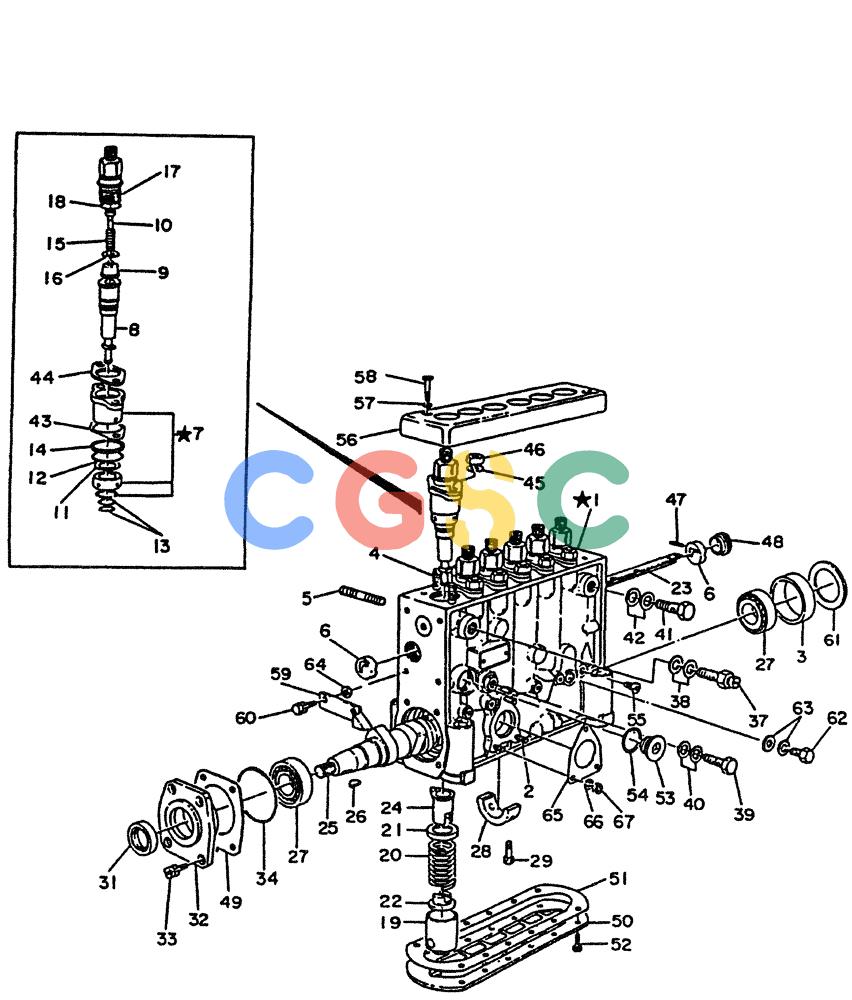

神钢零件查询(PE6T04) - NISSAN DIESEL ENGINE - LK900 & LK700A W/TURBO (1/03-12/06) (05-005) - PUMP-INJECTION, (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
776 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-67. | VG1670196515 | [1] | PUMP-INJECTION (FOR A1) | |
| 1-67. | VG1670196560 | [1] | PUMP-INJECTION (FOR A2) | |
| 1-67. | VG1671196500 | [1] | PUMP-INJECTION (FOR A3) | |
| 1-5. | VG1670299207 | [1] | HOUSING ASSY-PUMP | |
| 2. | VG1672937500 | [3] | STUD | |
| 3. | VG1673499000 | [1] | RING | |
| 4. | VG1672999000 | [12] | STUD | |
| 5. | VG1672999005 | [2] | STUD | |
| 6. | VG1670399000 | [2] | BUSHING | KOB |
| 7-18. | VG1676099104 | [6] | PLUNGER | KOBASSY |
| 8. | VG1679599002 | [6] | BLOCK-PLUNGER | |
| 9. | VG1677399008 | [6] | VALVE-DELIVERY | |
| 10. | VG1676499000 | [6] | STOP | |
| 11. | VG1683299000 | [6] | WASHER | KOB |
| 12. | VG1921899005 | [6] | O-RING | KOB |
| 13. | VG1927899000 | [12] | O-RING | KOB |
| 14. | VG1673499002 | [6] | O-RING | O-RING |
| 15. | VG1676599007 | [6] | SPRING (FOR A2) | |
| 15. | VG1676599001 | [6] | SPRING (FOR A1,A3) | |
| 16. | VG1676799002 | [6] | GASKET | KOB |
| 17. | VG1676399002 | [6] | BRUSH HOLDER | KOB |
| 18. | VG1927999000 | [6] | O-RING | KOB |
| 19. | VG1673099000 | [6] | TAPPET | KOBASSY |
| 20. | VG1678099002 | [6] | SPRING-PLUNGER (FOR A2,A3) | |
| 20. | VG1678099000 | [6] | SPRING | KOBPLUNGER (FOR A1) |
| 21. | VG1679999000 | [6] | VALVE SEAT | KOBSEAT-UPPER |
| 22. | VG1678199000 | [6] | SPRING SEAT | KOBLOWER |
| 23. | VG1677099101 | [1] | RACK-CONTROL (FOR A1) | |
| 23. | VG1677099102 | [1] | RACK-CONTROL (FOR A3) | |
| 23. | VG1677099015 | [6] | RACK-CONTROL (FOR A2) | |
| 24. | VG1676999000 | [6] | SLEEVE-CONTROL | |
| 25. | VG1670899012 | [1] | CAMSHAFT ASSY (FOR A3) | |
| 25. | VG1670899009 | [1] | CAMSHAFT | KOBASSY (FOR A1,A2) |
| 26. | VG1678390000 | [1] | KEY-WOODRUFF (FOR A1,A2) | |
| 26. | VG1678399006 | [1] | KEY-WOODRUFF (FOR A3) | |
| 27. | VG1673299000 | [1] | HALF-BEARING, CRANKS | KOBBEARING-TAPER |
| 27. | VG1673299003 | [1] | BEARING-TAPER | |
| 28. | VG1980399000 | [1] | BALL BEARING | KOBCENTER |
| 29. | VG1938299015 | [2] | SCREW | |
| 31. | VG1678799000 | [1] | OIL SEAL | KOBSEAL-OIL (FOR A1,A2) |
| 31. | VG1674399002 | [1] | SEAL-OIL (FOR A3) | |
| 32. | VG1678499008 | [1] | COVER (FOR A1,A2) | |
| 32. | VG1678499009 | [1] | COVER (FOR A3) | |
| 33. | VG1927276200 | [4] | SCREW (FOR A1) | |
| 33. | VG1928799005 | [4] | SCREW (FOR A2,A3) | |
| 34. | VG1678699000 | [1] | O-RING | KOB |
| 37. | VG1679690001 | [1] | OVERSIZE INLET VALVE | KOBOVER FLOW Superseded by part number: VG1679699001 |
| 38. | VG1666237500 | [2] | GASKET | |
| 39. | VG1675799002 | [1] | SCREW | KOBBOLT-EYE |
| 40. | VG1677899001 | [2] | GASKET | GASKET |
| 41. | VG1675399007 | [1] | BOLT-EYE | |
| 42. | VG1666237500 | [2] | GASKET | |
| 43. | VG1674599000 | [1] | SHIM T=0.50 | |
| 43. | VG1674599001 | [1] | SHIM T=0.60 | |
| 43. | VG1674599002 | [1] | SHIM T=0.70 | |
| 43. | VG1674599003 | [1] | SHIM T=0.80 | |
| 43. | VG1674599004 | [1] | SHIM | KOBT=0.90 |
| 43. | VG1674599005 | [1] | SHIM T=0.40 | |
| 43. | VG1674599006 | [1] | SHIM T=0.15 | |
| 43. | VG1674599007 | [1] | SHIM T=1.5 | |
| 44. | VG1674499000 | [6] | WASHER | |
| 45. | VG0891524000 | [12] | WASHER-SPRING | |
| 46. | VG1925699001 | [12] | NUT | |
| 47. | VG1931099000 | [1] | PIN | |
| 48. | VG1677299000 | [1] | SCREW | KOBBUSH |
| 49. | VG1678599000 | [1] | SHIM T=0.10 | |
| 49. | VG1678599001 | [1] | SHIM T=0.12 | |
| 49. | VG1678599002 | [1] | SHIM T=0.14 | |
| 49. | VG1678599003 | [1] | SHIM T=0.16 | |
| 49. | VG1678599004 | [1] | SHIM | KOBT=0.18 |
| 49. | VG1678599005 | [1] | SHIM T=0.30 | |
| 49. | VG1678599006 | [1] | SHIM T=0.50 | |
| 50. | VG1674099008 | [1] | COVER (FOR A1,A2) | |
| 50. | VG1674099011 | [1] | COVER (FOR A3) | |
| 51. | VG1674199000 | [1] | GASKET | |
| 52. | VG1933699005 | [12] | SCREW | |
| 53. | VG1673599000 | [1] | PLUG-SCREW | |
| 54. | VG1937199000 | [1] | GASKET | KOB |
| 55. | VG1673599001 | [6] | PLUG-SCREW | |
| 56. | VG1672099000 | [1] | COVER | |
| 57. | VG1682899000 | [2] | WASHER-LOCK | |
| 58. | VG1933699001 | [2] | SCREW | KOB |
| 59. | VG1673699001 | [1] | POINTER (FOR A1,A2) | |
| 59. | VG1673699003 | [1] | POINTER (FOR A3) | |
| 60. | VG1938299017 | [2] | BOLT | |
| 61. | VG1671699000 | [1] | SHIM T=1.2 | |
| 61. | VG1671699001 | [1] | SHIM T=1.5 | |
| 61. | VG1671699002 | [1] | SHIM | KOBSHIM T=1.8 |
| 61. | VG1671699003 | [1] | SHIM T=2.0 | |
| 61. | VG1671699015 | [1] | SHIM T=0.6 | |
| 62. | VG1675399007 | [1] | BOLT-EYE | |
| 63. | VG1666299000 | [2] | GASKET | GASKET |
| 64. | VG1932799004 | [1] | SHIM T=0.1 | |
| 64. | VG1932799005 | [1] | SHIM T=0.2 | |
| 64. | VG1932799006 | [1] | SHIM T=0.5 | |
| 64. | VG1932799007 | [1] | SHIM T=1.0 | |
| 64. | VG1932799015 | [1] | SHIM T=2.0 | |
| 64. | VG1932799016 | [1] | SHIM T=3.5 | |
| 64. | VG1932799017 | [1] | SHIM T=0.25 | |
| 64. | VG1932799018 | [1] | SHIM T=0.15 | |
| 64. | VG1932799019 | [1] | SHIM T=0.3 | |
| 65. | VG1672190002 | [1] | GASKET | KOB(FOR A1) Superseded by part number: VG1672190001 |
| 65. | VG1672190001 | [1] | GASKET | KOB(FOR A2,A3) |
| 66. | VG1682590004 | [3] | WASHER-SPRING (FOR A1) | |
| 66. | VG1926037502 | [3] | WASHER-SPRING (FOR A2,A3) | |
| 67. | VG0891120610 | [3] | NUT | KOB(FOR A2,A3) |
| 67. | VG1925699000 | [3] | NUT (FOR A1) | |
