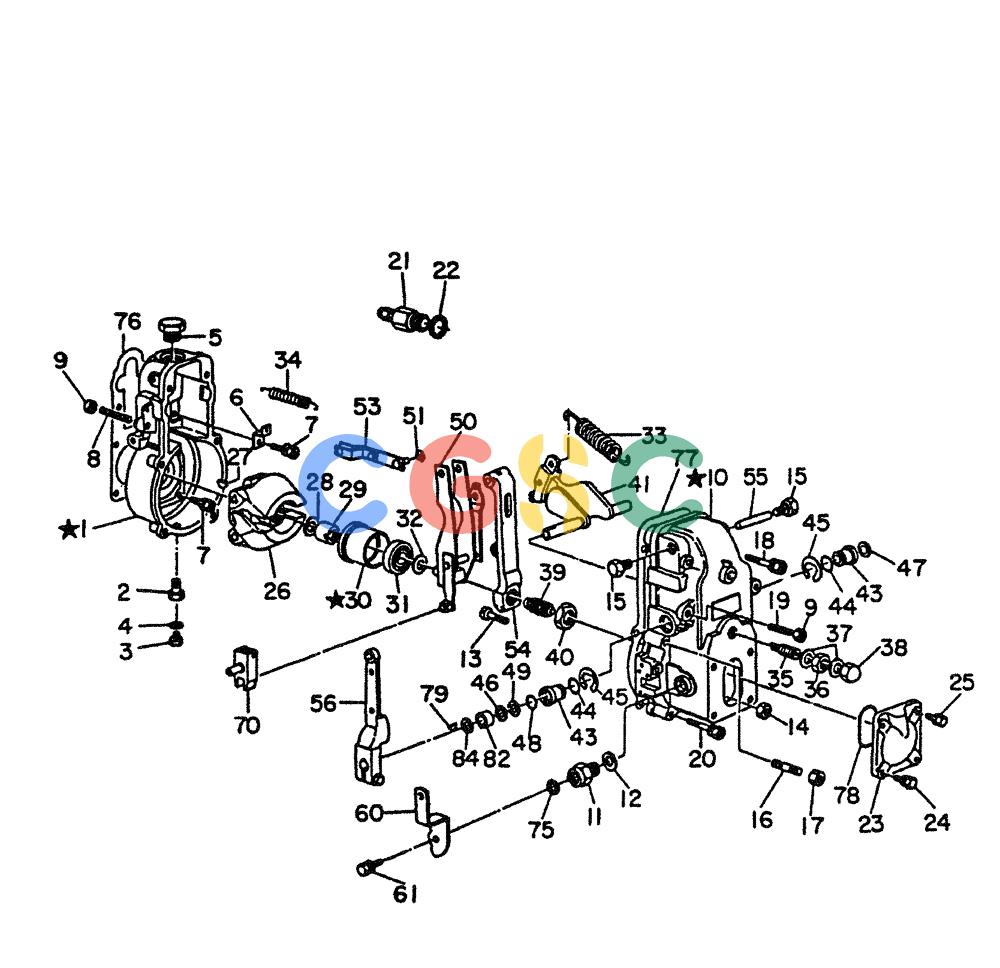

神钢零件查询(PE6T04) - NISSAN DIESEL ENGINE - LK900 & LK700A W/TURBO (1/03-12/06) (05-006) - GOVERNOR, (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
716 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-84. | VG1910196100 | [1] | GLOW PLUG | KOB |
| 1-4. | VG1935699014 | [1] | HOUSING ASSY | |
| 2. | VG1938199000 | [1] | ADAPTER | |
| 3. | VG1922037500 | [1] | PLUG | |
| 4. | VG1921137500 | [1] | GASKET | GASKET |
| 5. | VG1928999000 | [1] | PLUG | |
| 6. | VG1938099000 | [1] | SPRING-EYE | |
| 7. | VG1938290007 | [8] | BOLT | |
| 8. | VG1931090004 | [1] | SCREW | KOBSCREW Superseded by part number: 76602442 |
| 9. | VG1926890000 | [2] | NUT | |
| 10-12. | VG1936899018 | [1] | COVER ASSY | |
| 11. | VG1927699005 | [1] | BUSHING | BUSHING |
| 12. | VG1665937500 | [1] | WASHER | KOBGASKET |
| 13. | VG1933490001 | [1] | SCREW | |
| 14. | VG1935799000 | [1] | NUT | |
| 15. | VG1938290001 | [2] | PLUG | |
| 16. | VG1913290000 | [1] | SCREW | |
| 17. | VG1913390000 | [1] | NUT | |
| 18. | VG1928799000 | [2] | BOLT | |
| 19. | VG1931099001 | [1] | SCREW | |
| 20. | VG1979790001 | [4] | BOLT | |
| 21. | VG1678299000 | [1] | LIMITER | |
| 22. | VG1937199001 | [1] | GASKET | |
| 23. | VG1928699000 | [1] | COVER | |
| 24. | VG1979790000 | [2] | BOLT | |
| 25. | VG1938290004 | [2] | BOLT | |
| 26. | VG1931299001 | [1] | FLYWEIGHT | |
| 27. | VG1674237500 | [1] | KEY-WOOORUFF | |
| 28. | VG1687490001 | [1] | MASHER-SPRING | |
| 29. | VG1932590002 | [1] | NUT | |
| 30.31. | VG1936399000 | [1] | SLEEVE ASSY | |
| 31. | VG1933999000 | [1] | BEARING-BALL | |
| 32. | VG1934290001 | [1] | SHIM T=0.20 | |
| 32. | VG1934290002 | [1] | SHIM T=0.30 | |
| 32. | VG1934290003 | [1] | SHIM T=0.40 | |
| 32. | VG1934290004 | [1] | SHIM T=1.0 | |
| 33. | VG1930390003 | [1] | SPRING | KOB |
| 34. | VG1928090000 | [1] | SPRING | |
| 35. | VG1930399000 | [1] | CAPSULE-SPRING | |
| 36. | VG1931499001 | [1] | NUT | |
| 37. | VG1677899002 | [2] | GASKET | |
| 38. | VG1929090000 | [1] | CAP | |
| 39. | VG1684690002 | [1] | CAPSULE-SPRING | |
| 40. | VG1931490001 | [1] | NUT | |
| 41. | VG1927699000 | [1] | PISTON SWIVEL HEAD | KOBSwivel Head Piston LEVER |
| 43. | VG1927799001 | [1] | GENERATOR BUSH,A | GENERATOR BUSH,A |
| 43. | VG1927799000 | [1] | BUSH,B | |
| 44. | VG1927890000 | [2] | O-RING | KOB Superseded by part number: 76602419 |
| 45. | VG1927990000 | [2] | SNAP RING | KOB Superseded by part number: 76602422 |
| 46. | VG1928390000 | [1] | SHIM | |
| 47. | VG1937890002 | [1] | PLATE | KOB |
| 48. | VG1928290000 | [1] | O-RING | KOBSEAL-OIL |
| 49. | VG1928390001 | [1] | SHIM | |
| 50. | VG1935399000 | [1] | LEVER-GUIDE | |
| 51. | VG1933290001 | [1] | RING-SNAP | |
| 53. | VG1934699000 | [1] | LINK-FLOATING | |
| 54. | VG1933190004 | [1] | LEVER-TENSION | |
| 55. | VG1935090001 | [1] | SHAFT-TENSION | |
| 56. | VG1933499015 | [1] | LEVER | KOBCONTROL |
| 60. | VG1912090000 | [1] | LEVER CONTROL | LEVER CONTROL |
| 61. | VG1938290004 | [1] | BOLT | |
| 70. | VG1912999000 | [1] | LEVER-SPRING | |
| 75. | VG1912490000 | [1] | SHIM T=0.2 | |
| 75. | VG1912590000 | [1] | SHIM T=0.5 | |
| 76. | VG1939099000 | [1] | GASKET | GASKET |
| 77. | VG1913699000 | [1] | GASKET | KOB Superseded by part number: 76602414 |
| 78. | VG1979890000 | [1] | O RING | |
| 79. | VG1934490000 | [1] | KEY | KOB Superseded by part number: 76602465 |
| 82. | VG1685490000 | [1] | COLLAR | |
| 84. | VG1685490001 | [1] | SHIM | |
