斗山零件查询PILOT PIPING(1) - ARTI. BOOM DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
252 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

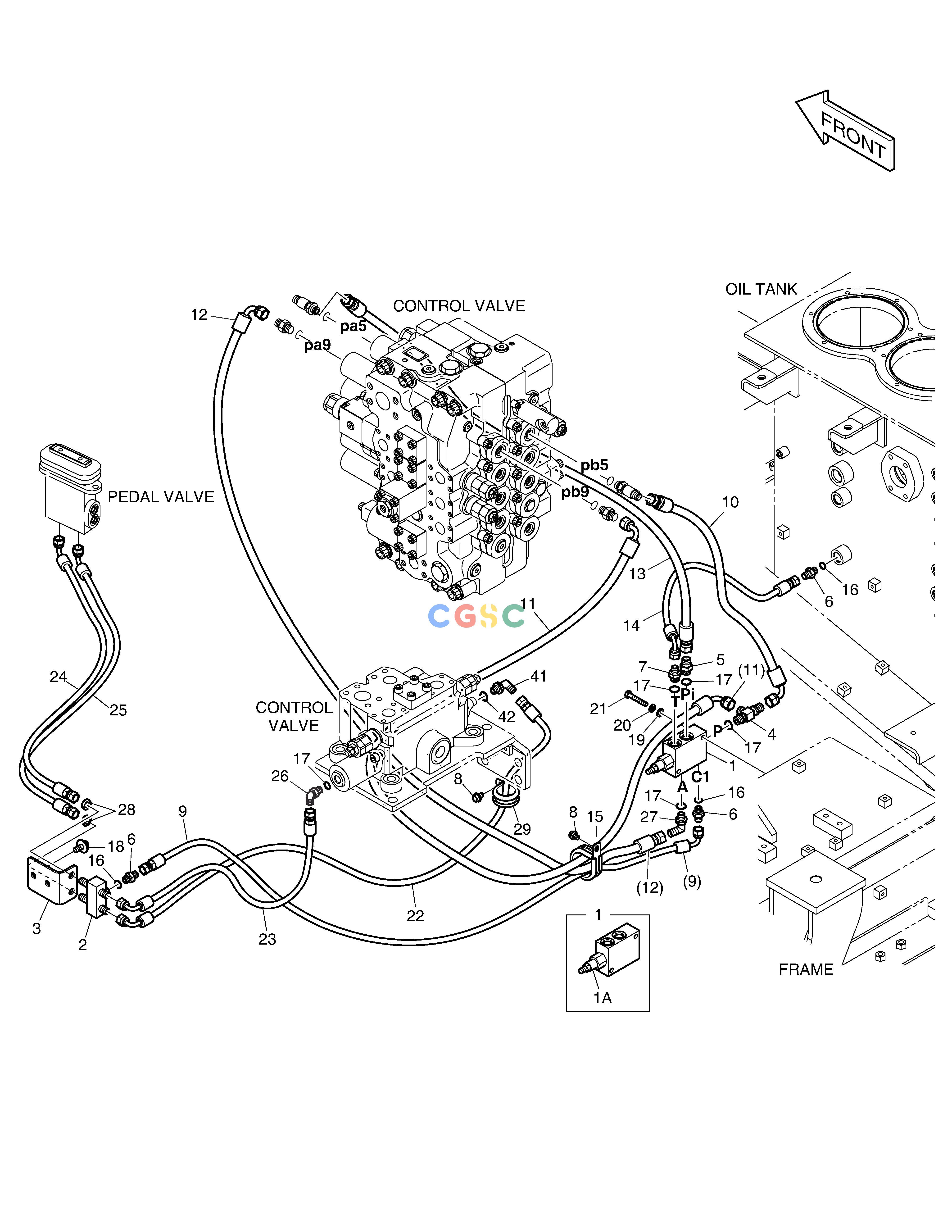

K1048690
|
[-] |
PILOT PIPING;ARTI BOOM
|
|
| 1. |
K1014266
|
[1] |
VALVE;PILOT
|
|
| 10. |
DS2093666
|
[1] |
HOSE PF3/8-745L
|
|
| 11. |
DS2091128
|
[1] |
HOSE
|
|
| 12. |
DS2093382
|
[1] |
HOSE
|
|
| 13. |
DS2094001
|
[1] |
HOSE
|
|
| 14. |
DS2093233
|
[1] |
HOSE
|
|
| 15. |
124-00208D9
|
[1] |
CLIP
|
|
| 16. |
S8000111
|
[3] |
O-RING
|
|
| 17. |
S8000141
|
[5] |
O-RING
|
|
| 18. |
DS0025017
|
[2] |
BOLT
|
|
| 19. |
S5010513
|
[2] |
WASHER
|
|
| 1A. |
2.421-00208
|
[1] |
VALVE;PILOT SHIFT
|
|
| 2. |
420-00476
|
[1] |
VALVE;SHUTTLE
|
|
| 20. |
S5102503
|
[2] |
. WASHER
|
|
| 21. |
S0556366
|
[2] |
BOLT
|
|
| 22. |
DS2093186
|
[1] |
HOSE
|
|
| 23. |
DS2093193
|
[1] |
HOSE
|
|
| 24. |
DS2093021
|
[1] |
HOSE
|
|
| 25. |
DS2093350
|
[1] |
HOSE
|
|
| 26. |
2181-1702D10
|
[1] |
ELBOW
|
|
| 27. |
2181-1702D5
|
[1] |
ELBOW
|
|
| 28. |
121-00010D7
|
[2] |
NUT
|
|
| 29. |
124-00208D2
|
[1] |
CLAMP
|
|
| 3. |
K1023823
|
[1] |
BRACKET
|
|
| 4. |
181-00811
|
[1] |
TEE;SHUTTLE
|
|
| 41. |
2181-1702D10
|
[1] |
ELBOW
|
|
| 42. |
S8000141
|
[1] |
O-RING
|
|
| 5. |
2181-1126D7
|
[1] |
ADAPTER
|
|
| 6. |
2181-1126D14
|
[3] |
ADAPTER
|
|
| 7. |
2181-1126D36
|
[1] |
ADAPTER
|
|
| 8. |
K1001029
|
[2] |
BOLT
|
|
| 9. |
DS2093204
|
[1] |
HOSE
|
|
