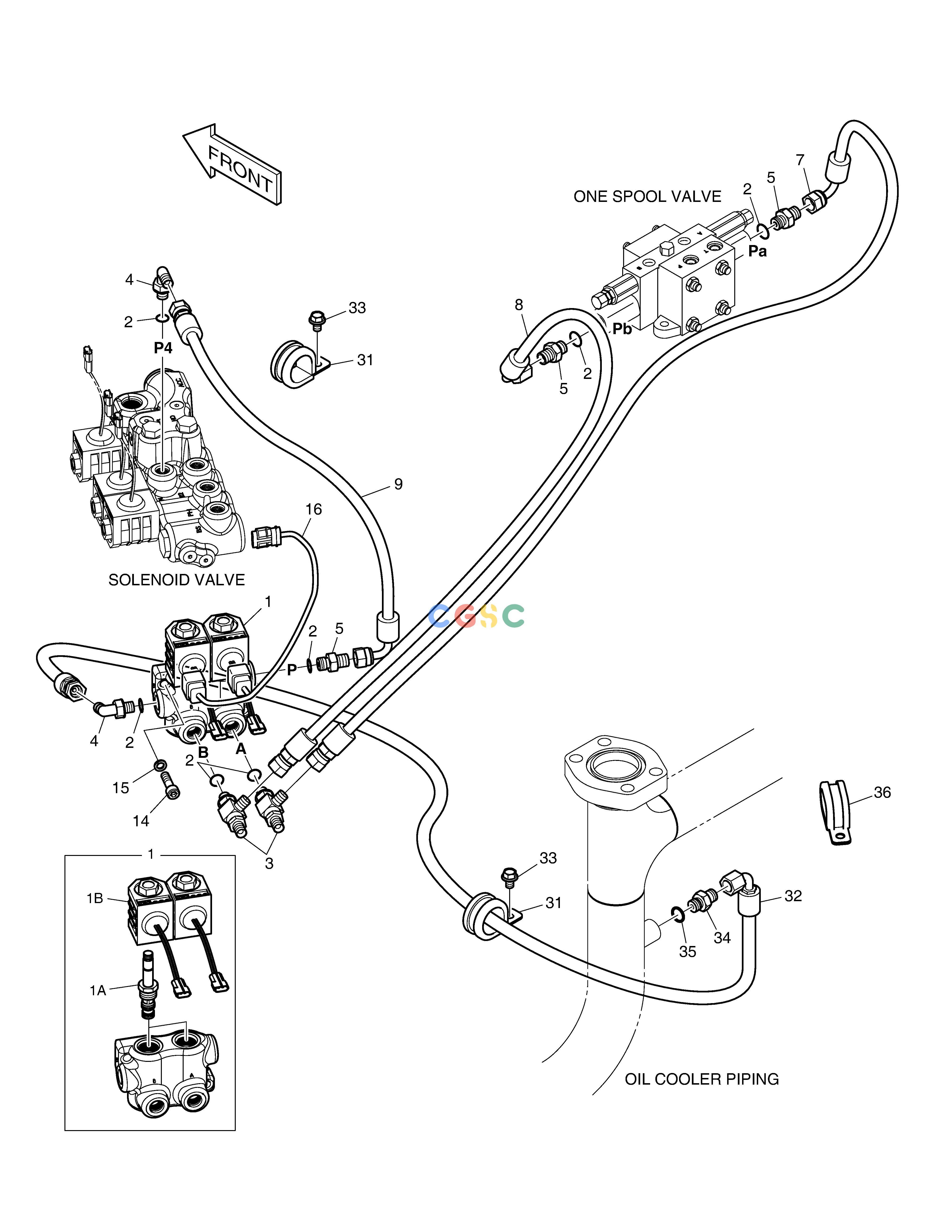

斗山零件查询PILOT PIPING(1) - ROTATING DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
798 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1005787E
|
[-] |
PILOT PIPING-ROTATING
|
|
| 1. |
426-00247B
|
[1] |
VALVE;SOLENOID
|
|
| 14. |
S2209266
|
[2] |
BOLT
|
|
| 15. |
S5110503
|
[2] |
WASHER
|
|
| 16. |
K1000817
|
[1] |
HARNESS
|
|
| 1A. |
K9007393
|
[2] |
GEAR;PLANETARY
|
|
| 1B. |
1.519-00001
|
[2] |
COIL
|
|
| 2. |
S8000111
|
[7] |
O-RING
|
|
| 3. |
181-00779
|
[2] |
TEE
|
|
| 31. |
124-00208D5
|
[2] |
CLIP
|
|
| 32. |
DS2093043
|
[1] |
HOSE
|
|
| 33. |
K1001029
|
[2] |
BOLT
|
|
| 34. |
2181-1126D14
|
[1] |
ADAPTER
|
|
| 35. |
S8000111
|
[1] |
O-RING
|
|
| 36. |
124-00209D4
|
[1] |
CLIP
|
|
| 4. |
2181-1702D4
|
[2] |
ELBOW
|
|
| 5. |
2181-1126D14
|
[3] |
ADAPTER
|
|
| 7. |
DS2093121
|
[1] |
HOSE
|
|
| 8. |
DS2093014
|
[1] |
HOSE
|
|
| 9. |
DS2093024
|
[1] |
HOSE
|
|
