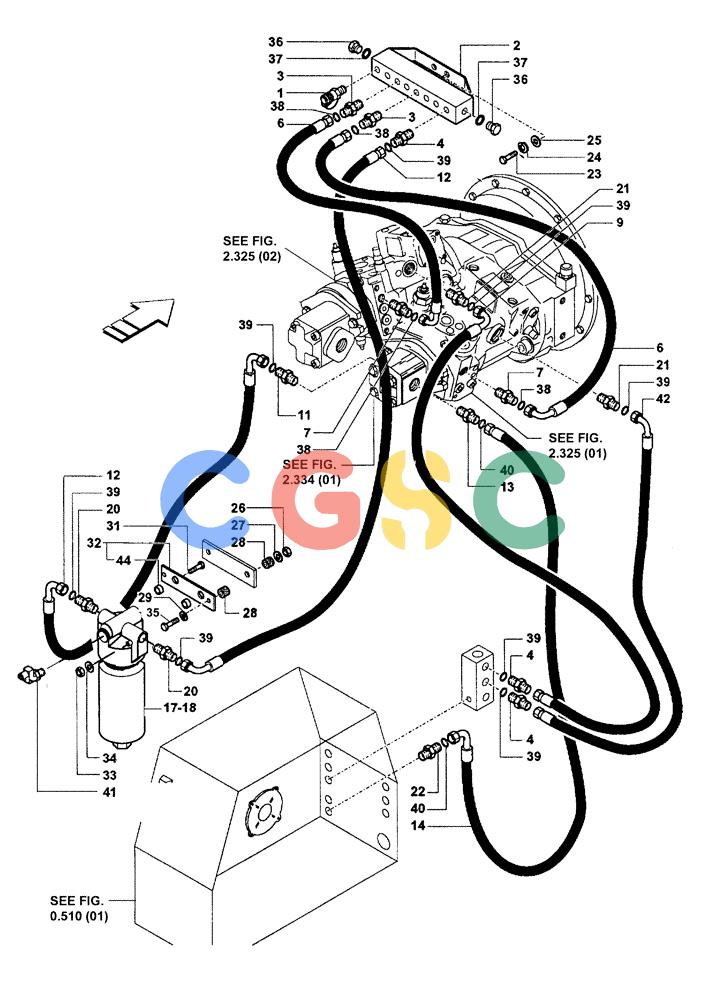

纽荷兰零件查询(DC100) - CRAWLER DOZER (N.A. VERSION) (4/00-) (2.327[02B]) - HYDROSTATIC TRANSMISSION PIPINGS DC80 - DC100 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
375 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76593031 | [1] | HYD CONNECTOR | MAC- PRESSURE MEASURING |
| 2. | 76590981 | [1] | BLOCK | MAC Superseded by part number: 76595997 |
| 3. | 76590982 | [2] | HYD CONNECTOR | MAC |
| 4. | 76590983 | [3] | HYD CONNECTOR | MAC |
| 6. | 76590985 | [2] | HOSE | MAC |
| 7. | 76590986 | [2] | HYD CONNECTOR | MAC |
| 9. | 76605478 | [1] | FLEXIBLE HOSE | MAC |
| 11. | 76590990 | [1] | HYD CONNECTOR | MAC |
| 12. | 76590989 | [2] | HOSE | MAC |
| 13. | 76590992 | [1] | HYD CONNECTOR | MAC |
| 14. | 76590993 | [1] | HOSE | MAC |
| 17. | 76610215 | [1] | FILTER | MACw/ELEMENT 76591390 (REF. 18) |
| 18. | 76591390 | [1] | HYDRAULIC OIL FILTER | MACELEMENT (ALSO PART OF FILTER 7650996 - REF.17) Superseded by part number: 87562745 |
| 21. | 76592905 | [2] | HYD CONNECTOR | MAC |
| 23. | 76590714 | [2] | SCREW | MAC Superseded by part number: 9515003 |
| 24. | 76590721 | [2] | LOCK WASHER | MAC |
| 25. | 76590713 | [2] | WASHER | MAC Superseded by part number: 14496621 |
| 26. | 76590848 | [2] | NUT | MAC- SELF-LOCKING Superseded by part number: 15503611 |
| 27. | 76590895 | [2] | WASHER | MAC Superseded by part number: 86639313 |
| 28. | 76592906 | [4] | PAD | MACDAMPENER |
| 29. | 76590847 | [2] | WASHER | MAC Superseded by part number: 10519624 |
| 31. | 76592907 | [2] | SCREW | MAC |
| 32. | 76610120 | [1] | SUPPORT | MACDC80 |
| 32. | 76592908 | [1] | SUPPORT | MACSUPPORT w/TWO SPACER 76610119 (REF. 44) |
| 33. | 76590934 | [2] | NUT | MAC- SELF LOCKING Superseded by part number: 12574221 |
| 34. | 76590873 | [2] | WASHER | MAC Superseded by part number: 10519404 |
| 35. | 76592909 | [2] | SCREW | MAC |
| 36. | 76595993 | [2] | PLUG | MAC |
| 37. | 76590904 | [2] | WASHER | MAC |
| 38. | 76596045 | [4] | SEAL | MAC- O'RING |
| 39. | 76596046 | [12] | SEAL | MAC- O'RING |
| 40. | 76596051 | [2] | SEAL | MAC- O'RING |
| 41. | 76598440 | [1] | SENSOR | MACINCLUDES ELECTRICAL PLUG |
| 42. | 76605479 | [1] | FLEXIBLE HOSE | MAC |
| 44. | 76610119 | [2] | SPACER | MAC- WELDED TO SUPPORT 76610120 (REF. 32) |
