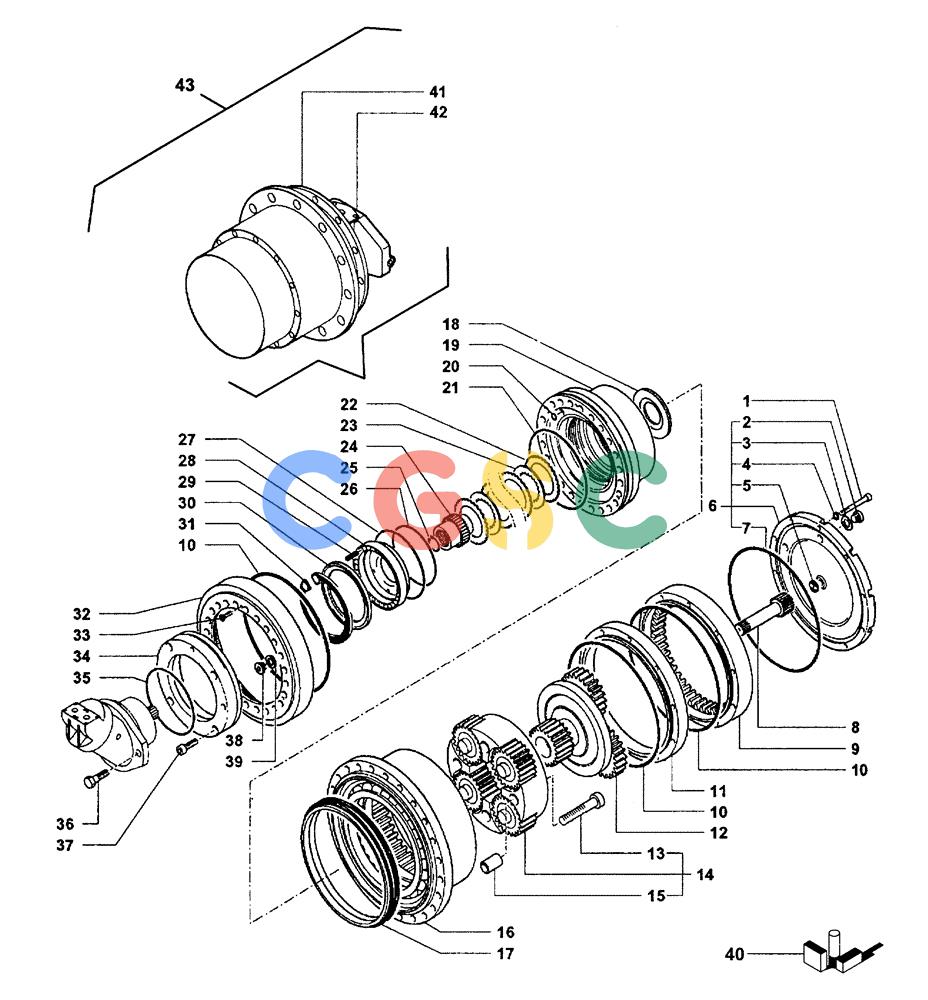

纽荷兰零件查询(DC100) - CRAWLER DOZER (N.A. VERSION) (4/00-) (2.329[01C]) - TRAVEL REDUCTION UNITS DC100 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
732 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76606760 | [10] | SCREW | TOR Superseded by part number: 86625211 |
| 2. | 76606761 | [2] | PLUG | MAC |
| 3. | 76592970 | [2] | WASHER | MAC |
| 4. | 76590727 | [10] | WASHER | MAC Superseded by part number: 412123 |
| 5. | 76606762 | [1] | DISC | MACPAD |
| 6. | 76606763 | [1] | COVER | MACASSY. |
| 7. | 76606764 | [1] | O-RING | MAC |
| 8. | 76606765 | [1] | SHAFT | MACGEAR, SUN |
| 9. | 76606766 | [1] | RING GEAR | MACGEAR, RING |
| 10. | 76592455 | [3] | O-RING | MAC Superseded by part number: 87562133 |
| 11. | 76606767 | [1] | SPACER | MAC |
| 12. | 76606768 | [1] | MOTO-REDUCTION GEAR | MACGEAR, REDUCTION |
| 13. | 76606771 | [4] | SCREW | MAC |
| 14. | 76606796 | [1] | MOTO-REDUCTION GEAR | MACGEAR, REDUCTION |
| 15. | 76606797 | [4] | BUSHING | MAC |
| 16. | 76606799 | [1] | BODY | MACHOUSING |
| 17. | 76592460 | [1] | GASKET | MACSEAL |
| 18. | 76606801 | [1] | RING | MACRETAINER |
| 19. | 76606802 | [1] | HUB | MAC |
| 20. | 76606804 | [2] | O-RING | MAC Superseded by part number: 76592977 |
| 21. | 76592466 | [1] | O-RING | MAC Superseded by part number: 71483163 |
| 22. | 76606805 | [6] | CLUTCH PLATE | MACDISC |
| 23. | 76606806 | [5] | CLUTCH PLATE | MACDISC |
| 24. | 76606807 | [1] | SHAFT | MACBRAKE |
| 25. | 76591448 | [1] | RING | TORSNAP |
| 26. | 76606808 | [1] | O-RING | MAC |
| 27. | 76606809 | [1] | O-RING | MAC |
| 28. | 76606811 | [1] | SPOOL | MACPISTON, BRAKE |
| 29. | 76606814 | [24] | SPRING | MAC Superseded by part number: 76592980 |
| 30. | 76606815 | [1] | RING | MACRETAINER |
| 31. | 76606816 | [1] | SNAP RING | MACRING, SNAP |
| 32. | 76606817 | [1] | COVER | MACASSY. |
| 33. | 76606818 | [3] | SCREW | MAC Superseded by part number: 76592984 |
| 34. | 76606819 | [1] | FLANGE | MAC |
| 35. | 76606820 | [1] | O-RING | MAC |
| 36. | 76606821 | [2] | SCREW | MAC |
| 37. | 76606822 | [4] | SCREW | MAC |
| 40. | 76606823 | [1] | KIT | MACSEAL Superseded by part number: 87562133, 76606820, 76606809, 76606808, 76606764, 76592977, 71483163, 76592460 |
| 41. | 76605900 | [2] | GEAR REDUCTION UNIT | MACGEAR, REDUCTION ASSY. - INCLUDES REFS. 1 - 39 |
| 42. | 76605901 | [2] | HYDRAULIC MOTOR | MACMOTOR, HYDRAULIC - SEE FIG. 2.329 (02) FOR PARTS |
| 43. | 76605902 | [2] | MOTOR | MACTRAVEL GEAR REDUCTION ASSY. - INCLUDES REFS. 41 & 42 Superseded by part number: 76605901, 76605900 |
