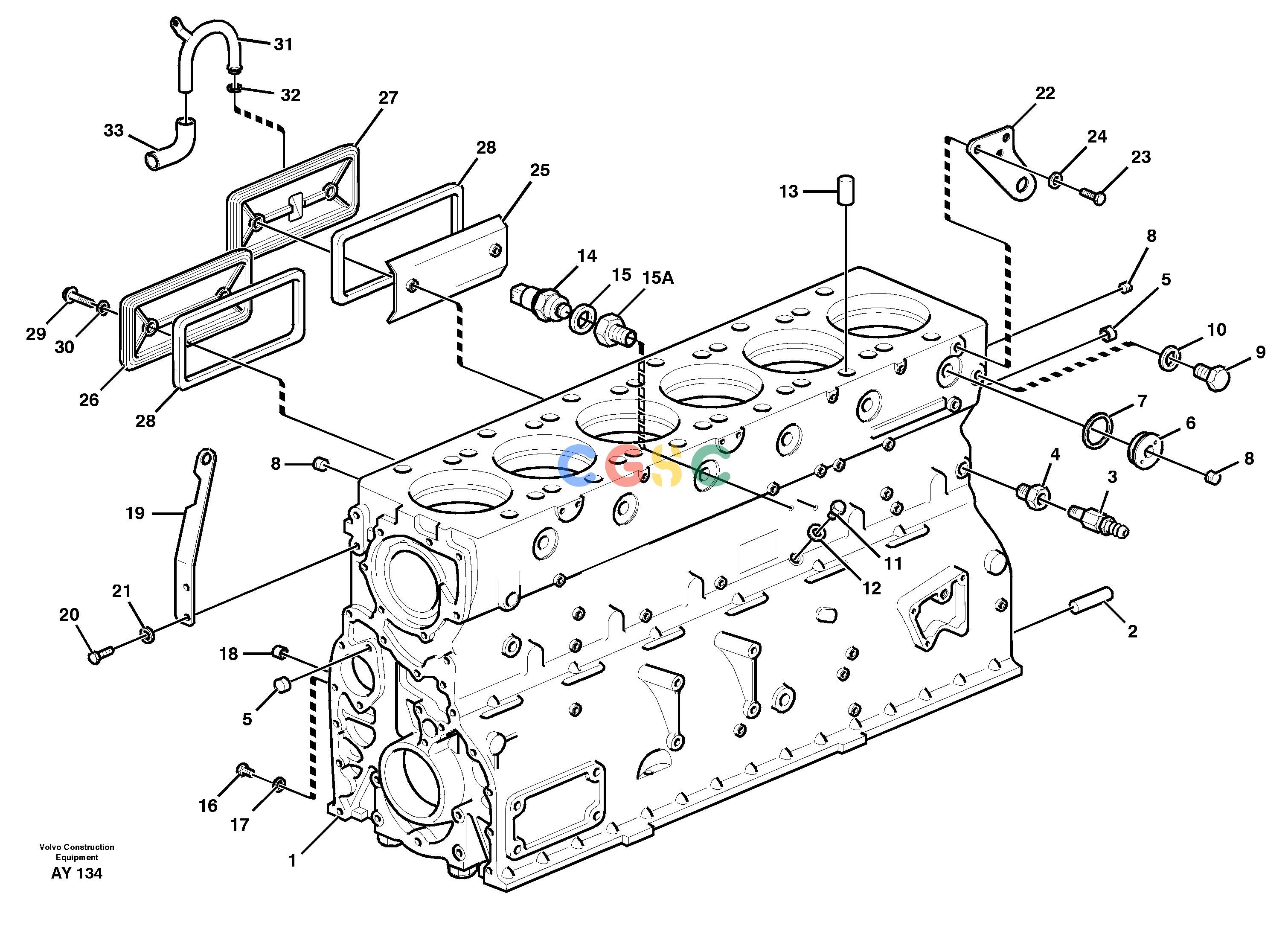

沃尔沃零件查询L220D Cylinder blockSER NO 1001- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
869 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Cylinder block
|
|
| 2. |
VOE191171
|
[2] |
Pin
|
|
| 3. |
VOE997641
|
[1] |
Shut-off Cock
|
|
| 4. |
VOE479954
|
[1] |
Nipple
|
|
| 5. |
VOE13955083
|
[3] |
Cap plug
|
(955083)
|
| 6. |
VOE821335
|
[1] |
Plug
|
|
| 7. |
VOE1556907
|
[1] |
Gasket
|
|
| 8. |
VOE479977
|
[3] |
Plug
|
|
| 9. |
VOE7016318
|
[4] |
Plug
|
|
| 10. |
VOE13947281
|
[4] |
Gasket
|
(907132)
|
| 11. |
VOE13961892
|
[1] |
Plug
|
(961892)
|
| 12. |
VOE976929
|
[1] |
Gasket
|
(969011)
|
| 13. |
VOE14025455
|
[12] |
Cylinder Pin
|
|
| 14. |
VOE3962893
|
[1] |
Sensor
|
SE202
ENG - 243745
|
| |
VOE11039575
|
[1] |
Pressure sensor
|
SE202
ENG 243746 -
|
| 15. |
VOE13947622
|
[1] |
Plane gasket
|
ENG - 243745
|
| 15A. |
VOE11030986
|
[1] |
Nipple
|
ENG - 243745
|
| 16. |
VOE13948187
|
[1] |
Plug
|
(948187)
|
| 17. |
VOE13947625
|
[1] |
Plane gasket
|
(947625)
|
| 18. |
VOE955082
|
[2] |
Cap plug
|
|
| 19. |
VOE4778438
|
[1] |
Lifting eye
|
|
| 20. |
VOE955562
|
[2] |
Hexagon screw
|
|
| 21. |
VOE940280
|
[2] |
Spring washer
|
|
| 22. |
VOE11031336
|
[1] |
Lifting eye
|
|
| 23. |
VOE13960783
|
[2] |
Screw
|
(960783)
|
| 24. |
VOE941912
|
[2] |
Spring washer
|
|
| 25. |
VOE422542
|
[1] |
Splash plate
|
|
| 26. |
VOE423120
|
[2] |
Hatch
|
|
| 27. |
VOE423121
|
[1] |
Hatch
|
|
| 28. |
VOE469823
|
[3] |
Gasket
|
|
| 29. |
VOE422541
|
[6] |
Screw
|
|
| 30. |
VOE471856
|
[6] |
Sealing ring
|
|
| 31. |
VOE11031985
|
[1] |
Pipe
|
|
| 32. |
VOE421158
|
[1] |
Sealing ring
|
|
| 33. |
|
[1] |
Hose
|
|
