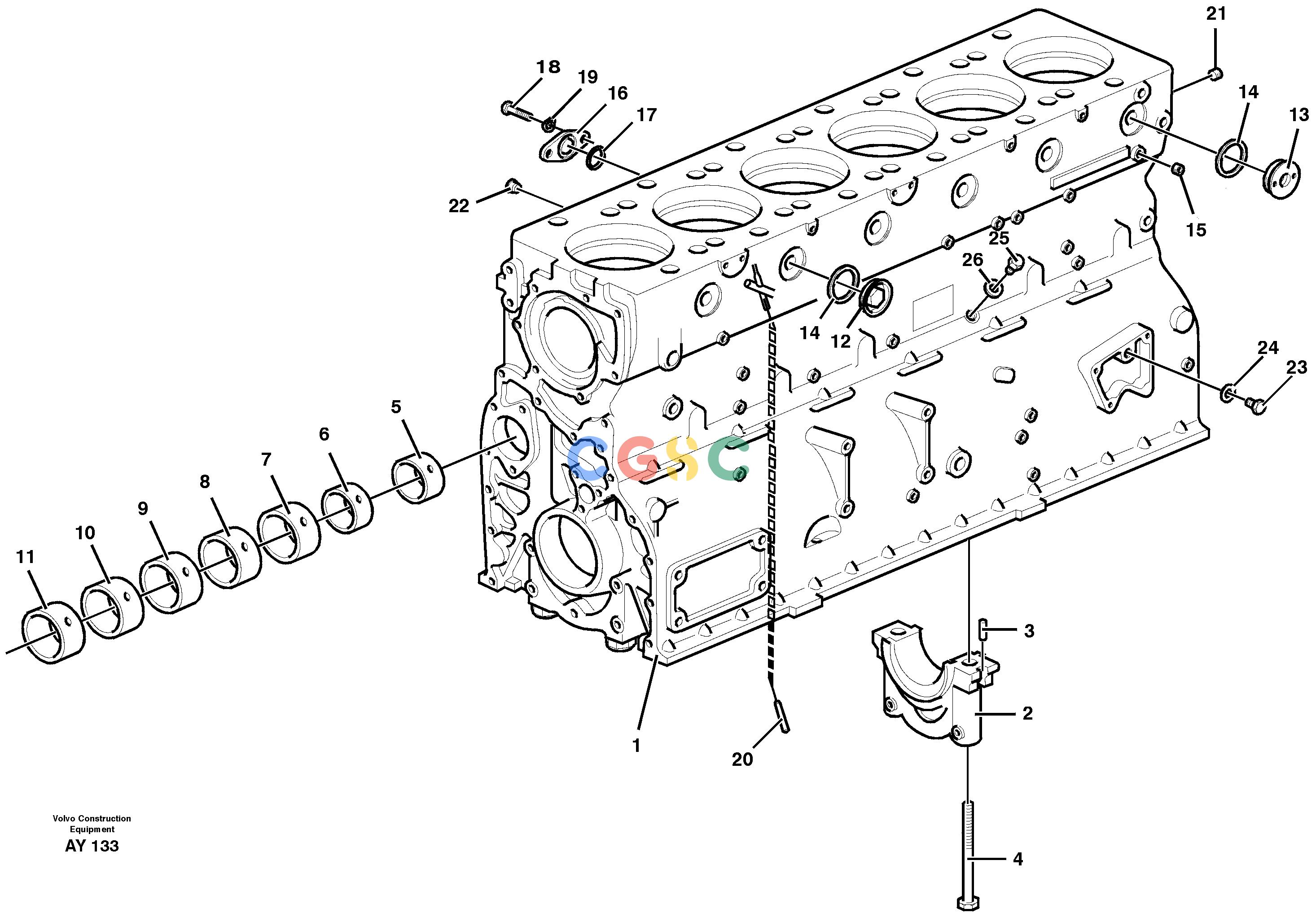

沃尔沃零件查询L220D Cylinder blockSER NO 1001-478992-478990NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
235 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE478992
|
[1] |
Cylinder block
|
|
| |
VOE478992
|
|
Cylinder block
|
|
| 1. |
VOE478991
|
[1] |
Cylinder block
|
|
| 2. |
|
[7] |
Cap
|
|
| 3. |
VOE422426
|
[1] |
Pin
|
|
| 4. |
VOE423444
|
[14] |
Screw
|
|
| 5. |
VOE422076
|
[1] |
Bushing
|
|
| 6. |
VOE422077
|
[1] |
Bushing
|
|
| 7. |
VOE422078
|
[1] |
Bushing
|
|
| 8. |
VOE11000014
|
[1] |
Bushing
|
(422079)
|
| 9. |
VOE422080
|
[1] |
Bushing
|
|
| 10. |
VOE422081
|
[1] |
Bushing
|
|
| 11. |
VOE422082
|
[1] |
Bushing
|
|
| 12. |
VOE467367
|
[5] |
Plug
|
(467649)
|
| 13. |
VOE821335
|
|
Plug
|
|
| 14. |
VOE1556907
|
[5] |
Gasket
|
|
| 15. |
VOE952075
|
[1] |
Plug
|
|
| 16. |
VOE468703
|
|
Cover
|
|
| 17. |
VOE13949657
|
|
O-ring
|
(925060)
|
| 18. |
VOE955524
|
|
Hexagon screw
|
|
| 19. |
VOE13941907
|
|
Washer
|
(941907)
|
| 20. |
VOE468563
|
[1] |
Tube assembly
|
|
| 21. |
VOE479977
|
[1] |
Plug
|
(952077)
|
| 22. |
VOE422369
|
[2] |
Plug
|
|
| 23. |
VOE7016318
|
[1] |
Plug
|
|
| 24. |
VOE13947281
|
[1] |
Gasket
|
(907132)
|
| 25. |
VOE13961892
|
[1] |
Plug
|
(961892)
|
| 26. |
VOE976929
|
[1] |
Gasket
|
(969011)
|
