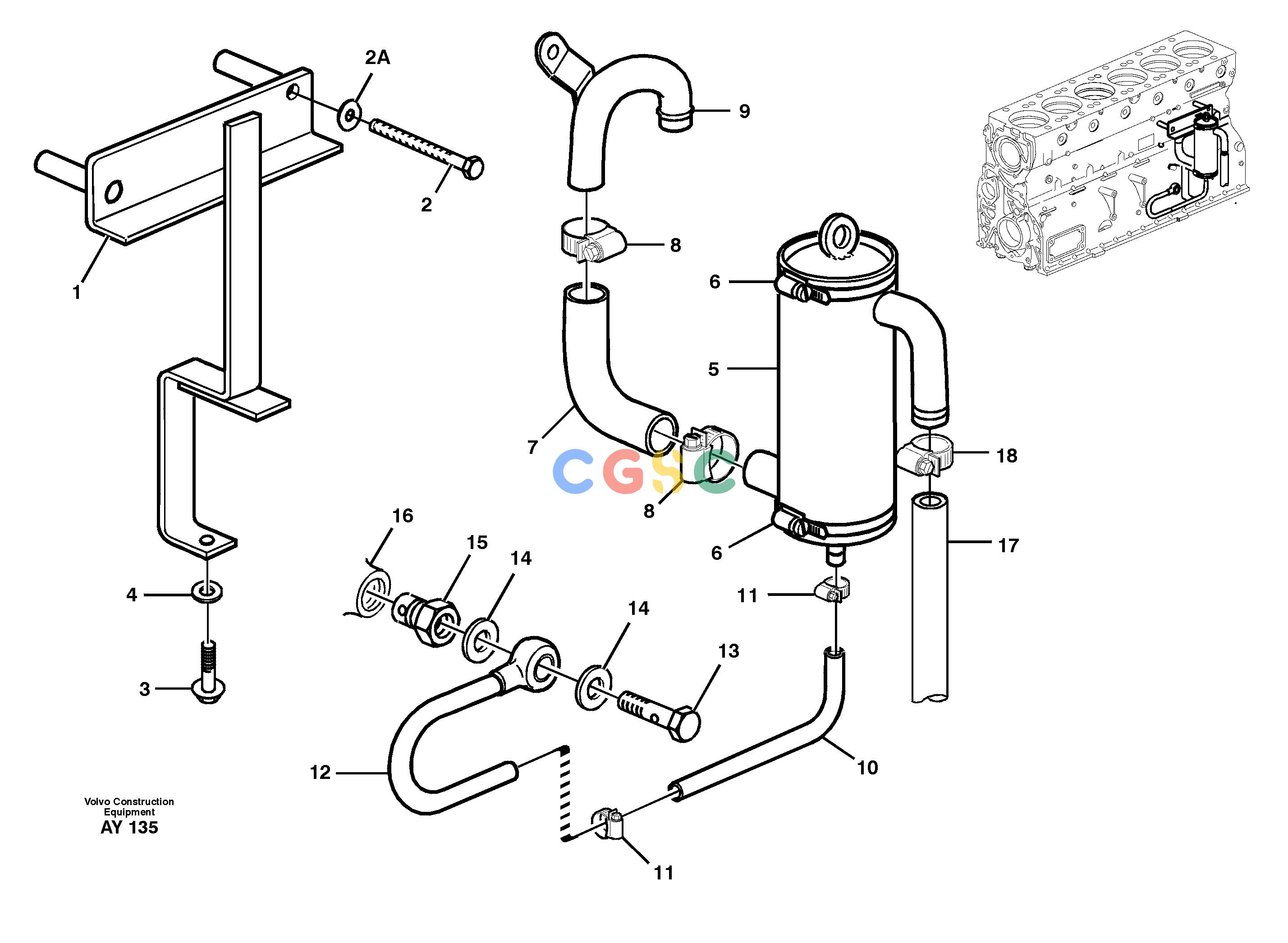

沃尔沃零件查询L220D Crankcase ventilationSER NO 1001- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
652 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11031987
|
[1] |
Bracket
|
|
| 2. |
VOE955529
|
[1] |
Hexagon screw
|
5/16"
|
| |
VOE955541
|
[1] |
Hexagon screw
|
3/8"
|
| 2A. |
VOE13942336
|
[2] |
Spring washer
|
(942336)
|
| 3. |
VOE13946173
|
[1] |
Screw
|
(946173)
|
| 4. |
VOE13955894
|
[1] |
Washer
|
(955894)
|
| 5. |
VOE11033878
|
[1] |
Oil trap
|
|
| 6. |
VOE943483
|
[2] |
Hose clamp
|
|
| 7. |
VOE11032106
|
[1] |
Hose
|
|
| 8. |
VOE943476
|
[2] |
Hose clamp
|
|
| 9. |
|
[1] |
Pipe
|
|
| 10. |
VOE983342
|
[REQ] |
Hose
|
L = 350 MM
|
| 11. |
VOE943470
|
[2] |
Hose clamp
|
|
| 12. |
VOE11030944
|
[1] |
Pipe
|
|
| 13. |
VOE60113509
|
[1] |
Hollow screw
|
|
| 14. |
VOE976929
|
[2] |
Gasket
|
(969011)
|
| 15. |
VOE11127015
|
[1] |
Reduction nipple
|
|
| 16. |
|
[1] |
Cylinder block
|
|
| 17. |
VOE927661
|
[REQ] |
Rubber hose
|
L = 700 MM
|
| 18. |
VOE943475
|
[1] |
Hose clamp
|
|
