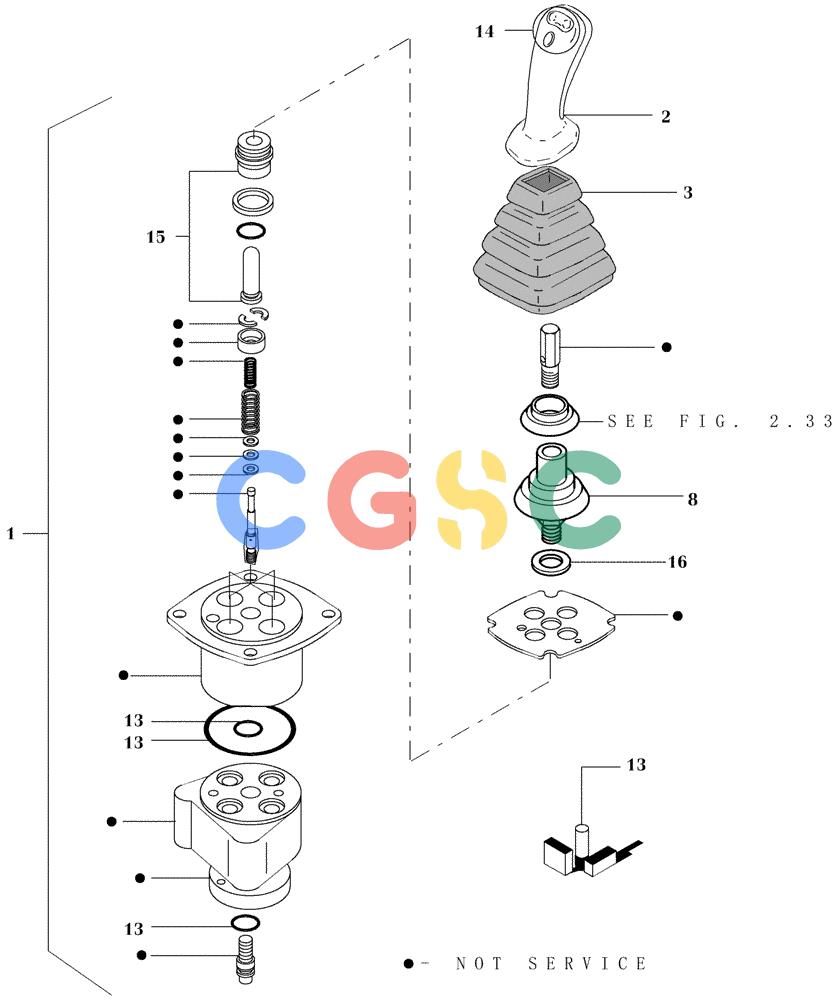

纽荷兰零件查询(DC100) - CRAWLER DOZER (N.A. VERSION) (4/00-) (2.339[02H]) - TRAVEL CONTROL PILOT VALVE - MANIPULATOR - DC100 STD. S/N 13111094 & UP; LGP S/N 13115017 & UP New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
296 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76610061 | [1] | MANIPULATOR | MAC |
| 2. | 76593115 | [1] | HANDLE | MAC Superseded by part number: 71485944 |
| 3. | 76593116 | [1] | BOOT | MAC Superseded by part number: 72115637 |
| 8. | NS | [1] | NOT SERVICED | BASARTICULATION |
| 13. | 47323109 | [1] | SERVICE KIT | TORKIT - SEALS Superseded by part number: 87548848 |
| 14. | 71436610 | [1] | KIT | TOR- BUTTON Superseded by part number: 76066716 |
| 15. | 47323110 | [1] | PISTON | TORKIT - FRONT AND REAR Superseded by part number: 87614023 |
