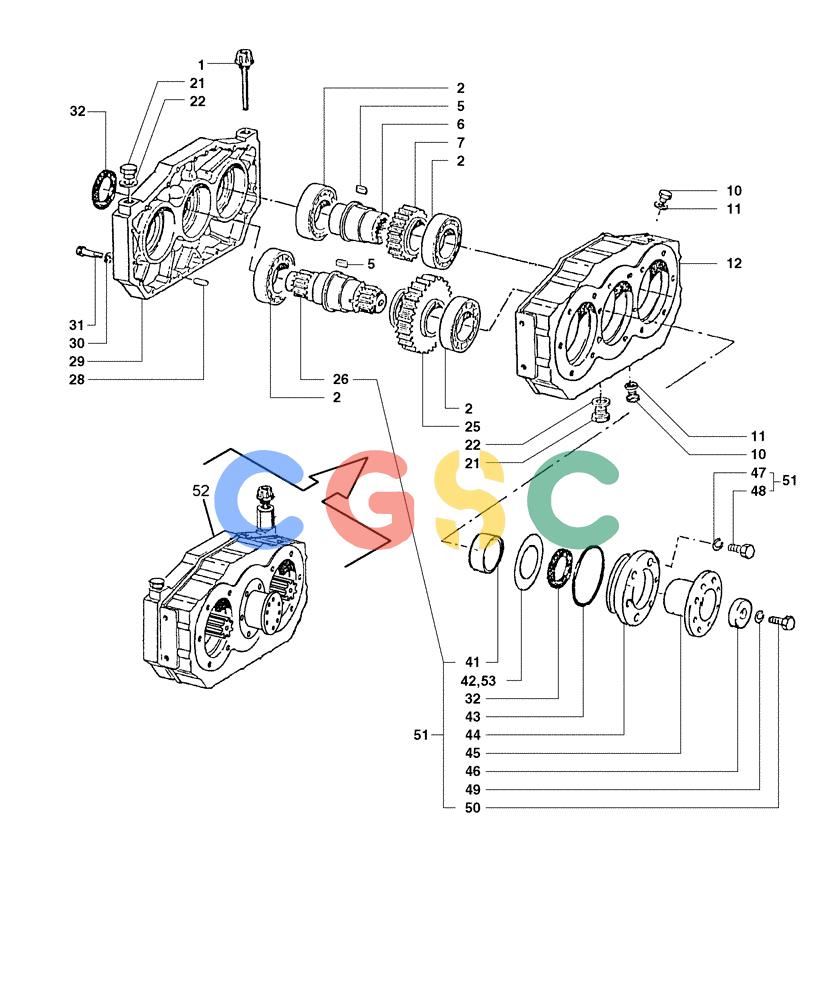

纽荷兰零件查询(DC100) - CRAWLER DOZER (N.A. VERSION) (4/00-) (9.380[01E]) - HYDROSTATIC DRIVE COUPLER WITH PTO DC100 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
744 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76596055 | [1] | DIPSTICK | MAC |
| 2. | 76596056 | [6] | BEARING | MAC Superseded by part number: 84330092 |
| 5. | 76596057 | [3] | KEY | MACPIN, ROLL |
| 6. | 47323096 | [2] | SHAFT | MAC |
| 7. | 47323098 | [2] | GEAR | MAC |
| 10. | 76595993 | [3] | PLUG | MAC |
| 11. | 76592970 | [3] | WASHER | MAC |
| 12. | 47323099 | [1] | BOX | MACHOUSING |
| 21. | 76591437 | [2] | PLUG | MAC Superseded by part number: 10304911 |
| 22. | 76591438 | [2] | GASKET | MAC Superseded by part number: 98429280 |
| 25. | 47323100 | [1] | GEAR | MAC |
| 26. | 47323097 | [1] | SHAFT | MAC |
| 28. | 76596058 | [1] | PIN | MACGUIDE |
| 29. | 47323101 | [1] | COVER | MAC |
| 30. | 76590721 | [23] | LOCK WASHER | MACWASHER, LOCK |
| 31. | 76590714 | [23] | SCREW | MAC Superseded by part number: 9515003 |
| 32. | 76596059 | [2] | GASKET | MAC |
| 41. | 76596060 | [1] | SPACER | MAC |
| 42. | 76591434 | [1] | SHIM | MAC Superseded by part number: 76606889 |
| 43. | 76590938 | [1] | O-RING | MAC Superseded by part number: 70923601 |
| 44. | 76596062 | [1] | COVER | MAC |
| 45. | 76596063 | [1] | FLANGE | MAC |
| 46. | 76596064 | [1] | LOCK WASHER | MACWASHER, LOCK |
| 48. | 76590946 | [6] | SCREW | LEC |
| 49. | 76590727 | [1] | WASHER | MAC Superseded by part number: 412123 |
| 50. | 76590781 | [1] | SCREW | MAC Superseded by part number: 615-12035 |
| 51. | 76596023 | [1] | COUPLING | MACFLANGE |
| 52. | 76604202 | [1] | QUICK FEMALE COUPLING | MACCOUPLER WITH PTO |
| 53. | 76606889 | [1] | SHIM | MAC |
