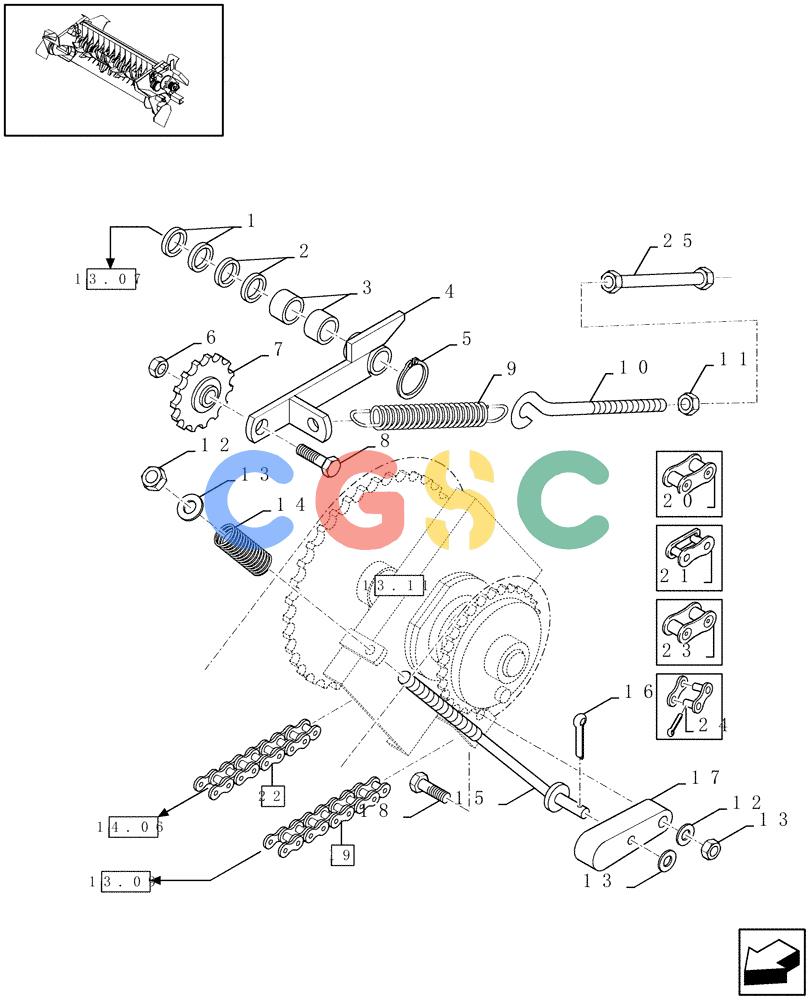

凯斯零件查询(RBX341) - SILAGE PACK ROUND BALER (3/03-12/05) (13.10[01]) - FEEDER AND CROPCUTTER ASSEMBLY, FRAME Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
804 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
80140104
|
[2] |
WASHER
|
ZED
Superseded by part number: 140104
|
| 2. |
80140229
|
[1] |
WASHER
|
ZED
Superseded by part number: 140229
|
| 3. |
84024582
|
[2] |
BUSHING
|
PLO
|
| 4. |
84024511
|
[1] |
LEVER
|
PLO
|
| 5. |
80370002
|
[1] |
CIRCLIP
|
ZED
Superseded by part number: 370002
|
| 6. |
80380424
|
[1] |
LOCK NUT
|
ZED
M20 Superseded by part number: 380424
|
| 7. |
84024220
|
[1] |
DRIVEN SPROCKET,12T
|
PLO
Z=12
|
| 8. |
89838134
|
[1] |
SCREW
|
ZED
Superseded by part number: 9847023
|
| 9. |
80056686
|
[1] |
SPRING
|
PLO
Superseded by part number: 56686
|
| 10. |
84025887
|
[1] |
EYEBOLT
|
PLO
|
| 10. |
80450876
|
[1] |
EYEBOLT
|
PLO
Superseded by part number: 450876
|
| 11. |
100016
|
[1] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 12. |
86514720
|
[2] |
NUT
|
WIN
M10 Superseded by part number: 190003888452
|
| 13. |
80378244
|
[3] |
LOCK WASHER
|
ZED
10MM Superseded by part number: 378244
|
| 14. |
84822364
|
[1] |
|
|
| 15. |
84024366
|
[1] |
ROD
|
PLO
|
| 16. |
80130003
|
[1] |
COTTER PIN
|
ZED
Superseded by part number: 130003
|
| 17. |
84024343
|
[1] |
GUIDE
|
PLO
|
| 18. |
80120070
|
[1] |
SCREW
|
ZED
M10x60 Superseded by part number: 120070
|
| 19. |
84024312
|
[1] |
CHAIN
|
PLO
(20,21) Superseded by part number: 340437249
|
| 20. |
80025805
|
[65] |
CONNECTING LINK
|
ZED
Superseded by part number: 241-1115
|
| 21. |
80025194
|
[1] |
CONNECTING LINK
|
ZED
Superseded by part number: 86537460
|
| 22. |
84024313
|
[1] |
CHAIN,80, 86 Links x 25.4mm = 2184.4mm
|
PLO
(23,24)
|
| 23. |
80140774
|
[85] |
LINK
|
PLO
Superseded by part number: 140774
|
| 24. |
80410402
|
[1] |
LINK CHAIN
|
ZED
Superseded by part number: 410402
|
| 25. |
84078701
|
[1] |
ADJUSTMENT ROD
|
PLO
|
