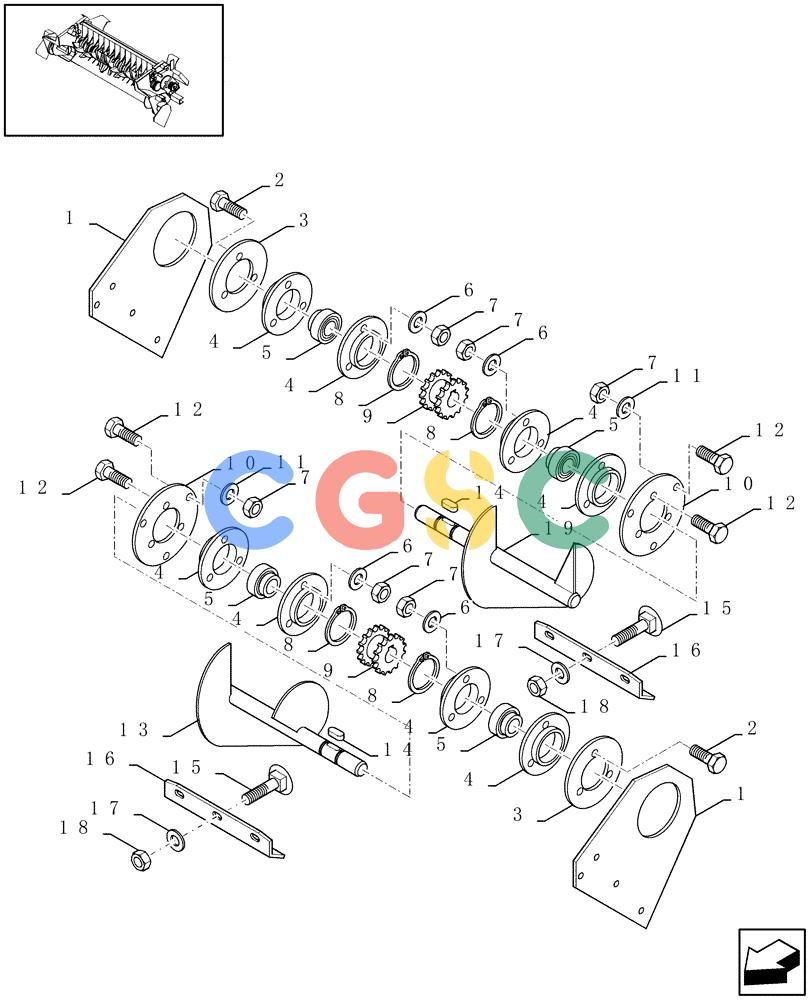

凯斯零件查询(RBX341) - SILAGE PACK ROUND BALER (3/03-12/05) (13.09[01]) - FEEDER AND CROPCUTTER ASSEMBLY, FRAME Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
199 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84024459
|
[2] |
COVER PLATE
|
PLO
|
| 2. |
80043139
|
[6] |
BOLT,M10 x 25mm
|
ZED
Superseded by part number: 11106231
|
| 3. |
84024461
|
[2] |
DISC
|
PLO
|
| 4. |
80040697
|
[8] |
FLANGE
|
ZED
Superseded by part number: 86974088
|
| 5. |
80325106
|
[4] |
BEARING ASSY
|
ZED
Superseded by part number: 325106
|
| 6. |
80140028
|
[12] |
SPRING WASHER
|
ZED
10MM Superseded by part number: 140028
|
| 7. |
100016
|
[18] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 8. |
80370003
|
[4] |
CIRCLIP
|
ZED
Superseded by part number: 370003
|
| 9. |
84024256
|
[2] |
DRIVEN SPROCKET
|
PLO
|
| 10. |
84822251
|
[2] |
DISC
|
PLO
, Serial Range: -C667 Superseded by part number: 84820198
|
| 10. |
84820198
|
[2] |
DISC
|
PLO
, Start Serial: D668
|
| 11. |
80140045
|
[6] |
WASHER
|
ZED
Superseded by part number: 140045
|
| 12. |
80120109
|
[12] |
SCREW
|
ZED
M10x20 Superseded by part number: 43138
|
| 13. |
84822357
|
[1] |
AUGER
|
PLO
LH, Serial Range: -C667
|
| 13. |
84820197
|
[1] |
AUGER
|
PLO
, Start Serial: D668
|
| 14. |
80170030
|
[2] |
KEY
|
ZED
Superseded by part number: 170030
|
| 15. |
80120037
|
[6] |
BOLT
|
ZED
M8x20 Superseded by part number: 86507486
|
| 16. |
84822372
|
[2] |
COVER PLATE
|
PLO
, Serial Range: -C667
|
| 16. |
84820194
|
[2] |
COVER PLATE
|
PLO
, Start Serial: D668
|
| 17. |
80322358
|
[6] |
LOCK WASHER
|
ZED
Superseded by part number: 322358
|
| 18. |
43362
|
[6] |
NUT,M8 x 1.25, Cl 10
|
BHB
|
| 19. |
84822356
|
[1] |
AUGER
|
PLO
RH, Serial Range: -C667
|
| 19. |
84820193
|
[1] |
AUGER
|
PLO
RH, Start Serial: D668
|
