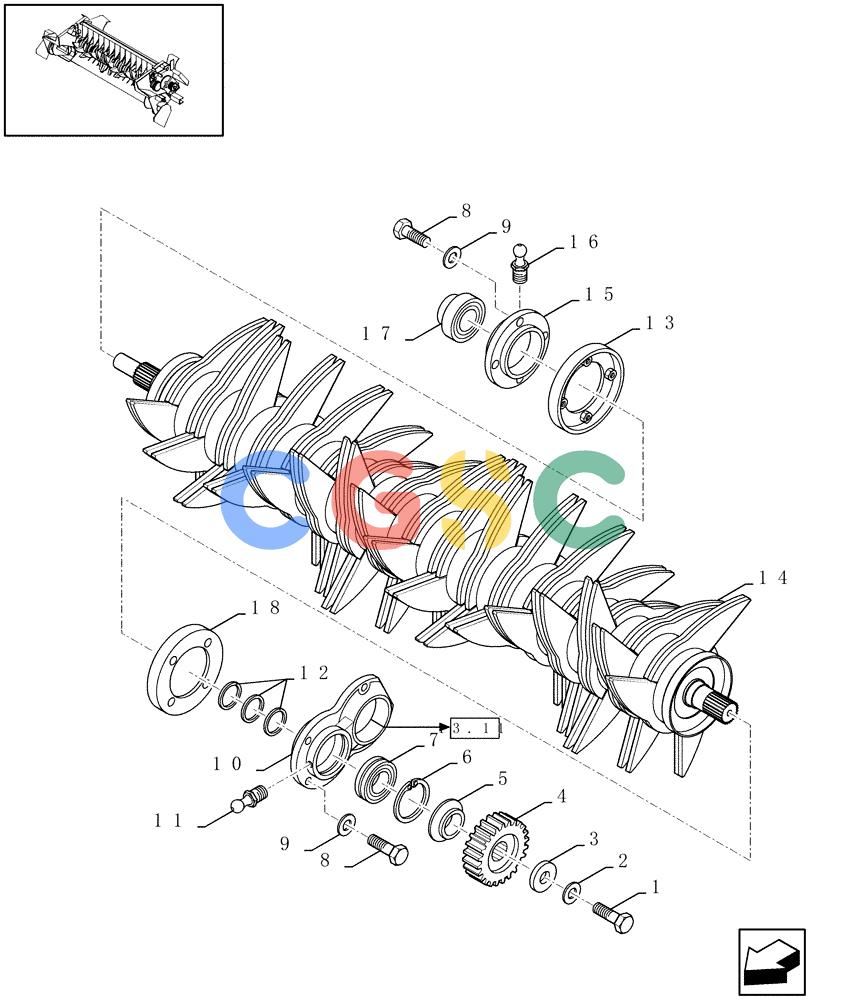

凯斯零件查询(RBX341) - SILAGE PACK ROUND BALER (3/03-12/05) (13.12[01]) - FEEDER AND CROPCUTTER ASSEMBLY Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
979 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
80120120
|
[1] |
SCREW
|
ZED
M12X30 Superseded by part number: 9706687
|
| 2. |
80140046
|
[1] |
WASHER
|
ZED
12MM Superseded by part number: 140046
|
| 3. |
84429794
|
[1] |
WASHER
|
PLO
|
| 4. |
84429795
|
[1] |
GEAR
|
PLO
|
| 5. |
84429823
|
[1] |
SPACER
|
PLO
|
| 6. |
80301652
|
[1] |
SNAP RING
|
ZED
Superseded by part number: 301652
|
| 7. |
84074234
|
[1] |
BEARING, ROLLER, CYL,60mm ID x 110mm OD x 28mm W
|
ZED
Superseded by part number: 428162
|
| 8. |
84045865
|
[7] |
BOLT,Hex, M10 x 35mm, Cl 10.9
|
ZED
M10x35 Superseded by part number: 84078461
|
| 9. |
80140045
|
[7] |
WASHER
|
ZED
10MM Superseded by part number: 140045
|
| 10. |
84429820
|
[1] |
BEARING HOUSING
|
PLO
|
| 11. |
321204
|
[1] |
LUBE NIPPLE,M6 x 1.0 x 16mm OAL
|
ZED
|
| 12. |
84429792
|
[3] |
WASHER
|
PLO
|
| 13. |
86634127
|
[1] |
DISC
|
PA
|
| 14. |
84429799
|
[1] |
ROTOR
|
PLO
|
| 14. |
84429800
|
[1] |
ROTOR
|
PLO
(19), Serial Range: -C639 Superseded by part number: 84819464
|
| 14. |
84819464
|
[1] |
ROTOR
|
PLO
(19), Start Serial: D640
|
| 15. |
84024183
|
[1] |
BEARING HOUSING
|
PLO
|
| 16. |
80323787
|
[1] |
LUBE NIPPLE
|
ZED
Superseded by part number: N13505
|
| 17. |
84024179
|
[1] |
BALL BEARING,45mm ID x 90mm OD x 22mm W
|
PLO
|
| 18. |
84429825
|
[1] |
COVER
|
PLO
|
| 19. |
84819463
|
[1] |
TINE
|
PLO
Superseded by part number: 84790282, 84790079
|
