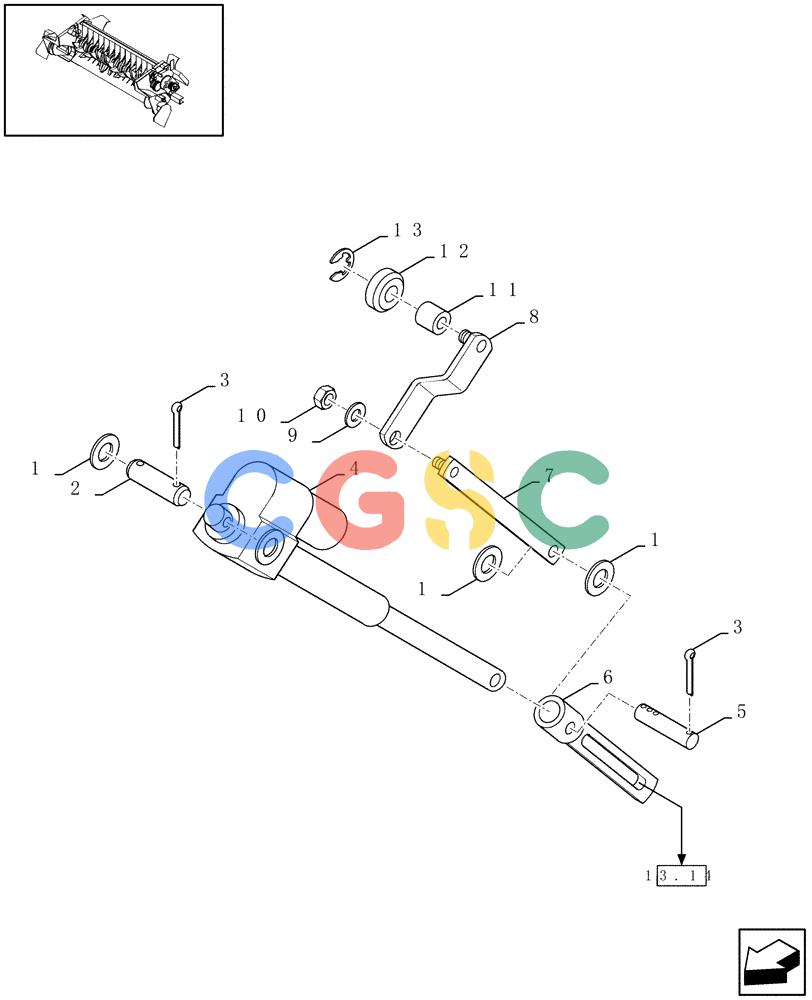

凯斯零件查询(RBX341) - SILAGE PACK ROUND BALER (3/03-12/05) (13.13[01]) - CROPCUTTER, ACTUATOR Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
124 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
80378245
|
[6] |
WASHER
|
ZED
12MM Superseded by part number: 378245
|
| 2. |
84017216
|
[1] |
PIN,12.7mm OD x 64.5mm L
|
ZED
|
| 3. |
80130003
|
[6] |
COTTER PIN
|
ZED
Superseded by part number: 130003
|
| 4. |
84320858
|
[1] |
ACTUATOR
|
PLO
|
| 5. |
84024799
|
[1] |
PIN
|
PLO
|
| 6. |
84024568
|
[1] |
GUIDE
|
PLO
|
| 7. |
84024798
|
[1] |
COVER PLATE
|
PLO
|
| 8. |
84062211
|
[1] |
SUPPORT
|
PLO
|
| 9. |
80378243
|
[1] |
WASHER
|
ZED
8MM Superseded by part number: 378243
|
| 10. |
80100067
|
[1] |
NUT
|
ZED
M8 Superseded by part number: 86528579
|
| 11. |
84024794
|
[1] |
BUSHING
|
NH
|
| 12. |
84024806
|
[1] |
SPACER
|
PA
|
| 13. |
83981963
|
[1] |
SNAP RING,M8 x 0.66mm Thk
|
ZED
|
