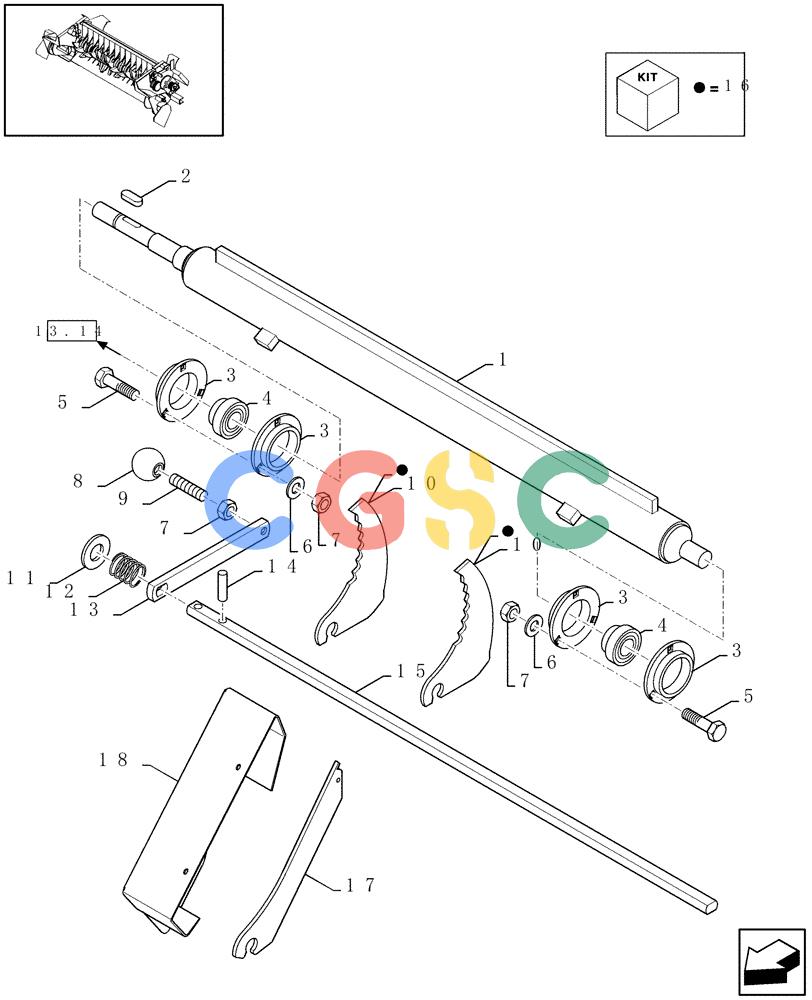

凯斯零件查询(RBX341) - SILAGE PACK ROUND BALER (3/03-12/05) (13.15[01]) - CROPCUTTER ASSEMBLY, KNIVES Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
582 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84100455
|
[1] |
SHAFT
|
PLO
, Serial Range: -C639 Superseded by part number: 84790057
|
| 1. |
84790057
|
[1] |
SHAFT
|
PLO
, Start Serial: D640
|
| 2. |
80170008
|
[1] |
KEY
|
ZED
, Serial Range: -C639 Superseded by part number: 170008
|
| 2. |
80170010
|
[1] |
KEY
|
ZED
, Start Serial: D640 Superseded by part number: 170010
|
| 3. |
80036403
|
[4] |
FLANGE
|
ZED
Superseded by part number: 86620026
|
| 4. |
80322360
|
[2] |
BEARING ASSY
|
ZED
Superseded by part number: 322360
|
| 5. |
80120109
|
[6] |
SCREW
|
ZED
M10x20 Superseded by part number: 43138
|
| 6. |
80140028
|
[6] |
SPRING WASHER
|
ZED
10MM Superseded by part number: 140028
|
| 7. |
100016
|
[7] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 8. |
84025436
|
[1] |
HANDLE GRIP
|
POL
Superseded by part number: 340441109
|
| 9. |
84024518
|
[1] |
STUD
|
PLO
M10x40
|
| 10. |
84607325
|
[15] |
KNIFE
|
PLO
|
| 10. |
84790406
|
[15] |
KNIFE
|
PLO
|
| 11. |
80726059
|
[1] |
WASHER
|
ZED
Superseded by part number: 84814994
|
| 12. |
84024285
|
[1] |
SPRING
|
PLO
|
| 13. |
84024507
|
[1] |
SHIM
|
PLO
|
| 14. |
80130050
|
[2] |
ROLL PIN
|
ZED
Superseded by part number: 300872
|
| 15. |
84024276
|
[1] |
SHAFT
|
PLO
|
| 16. |
84607753
|
[1] |
KIT
|
PLO
SET OF 15 KNIVES Superseded by part number: 84607325
|
| 16. |
84800607
|
[1] |
DIA KIT, HARVESTER
|
PLO
SET OF 15 KNIVES
|
| 17. |
84817683
|
[15] |
PLATE
|
ZED
, Serial Range: -C603 Superseded by part number: 84818602
|
| 17. |
84818602
|
[15] |
PLATE
|
PLO
, Start Serial: D604
|
| 18. |
84817684
|
[1] |
SUPPORT
|
PLO
|
