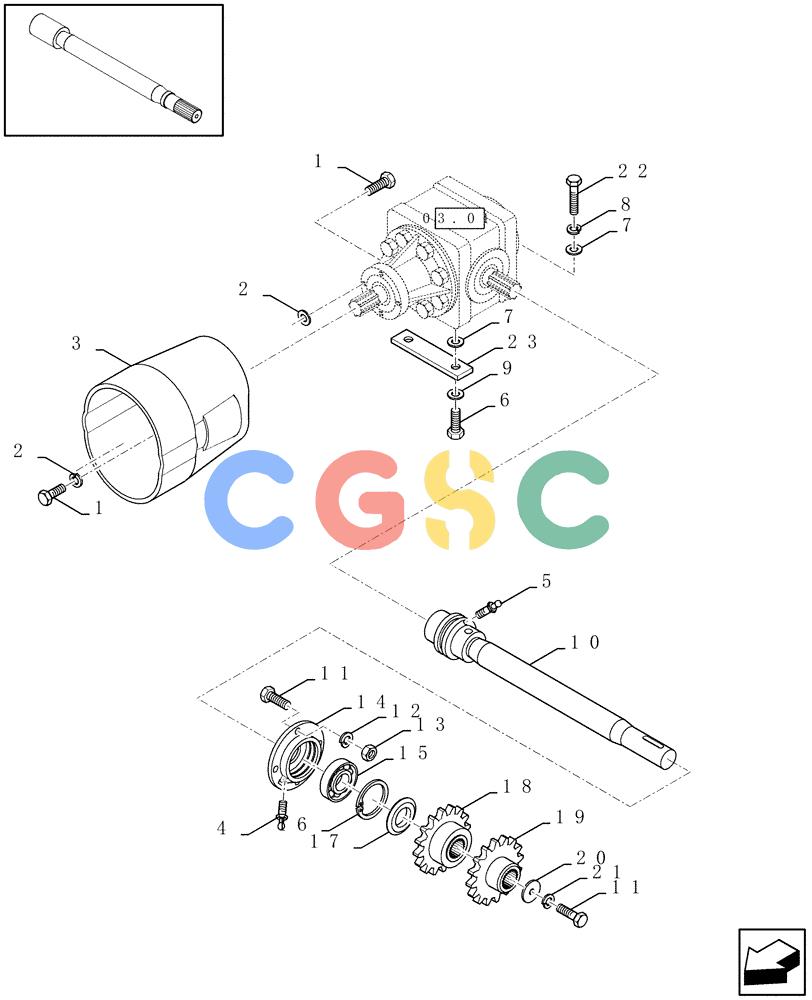

凯斯零件查询(RBX341) - SILAGE PACK ROUND BALER (3/03-12/05) (14.01[01]) - MAIN DRIVE Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
874 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
80120103
|
[4] |
BOLT,M8 x 1.25 x 16mm, Cl 8.8
|
ZED
M8x16 Superseded by part number: 16043224
|
| 2. |
80322358
|
[4] |
LOCK WASHER
|
ZED
8MM Superseded by part number: 322358
|
| 3. |
84025169
|
[1] |
SHIELD
|
PLO
|
| 4. |
80323787
|
[1] |
LUBE NIPPLE
|
ZED
Superseded by part number: N13505
|
| 5. |
321204
|
[1] |
LUBE NIPPLE,M6 x 1.0 x 16mm OAL
|
ZED
|
| 6. |
80120091
|
[4] |
SCREW
|
ZED
M16x60 Superseded by part number: 323866
|
| 7. |
80066271
|
[1] |
SHIM
|
PLO
THK.:1MM Superseded by part number: 66271
|
| 7. |
84058068
|
[1] |
SHIM,47.5mm OD x 0.5mm Thk
|
PLO
THK.:0.5MM
|
| 8. |
80140048
|
[4] |
WASHER
|
ZED
16MM Superseded by part number: 140048
|
| 9. |
80333040
|
[4] |
WASHER
|
ZED
Superseded by part number: 333040
|
| 10. |
84025895
|
[1] |
CONTROL SHAFT
|
PLO
|
| 11. |
80120120
|
[5] |
SCREW
|
ZED
M12X30 Superseded by part number: 9706687
|
| 12. |
80412123
|
[4] |
LOCK WASHER
|
ZED
12MM Superseded by part number: 412123
|
| 13. |
100018
|
[4] |
NUT,M12, Cl 8, ZND
|
NNA
Superseded by part number: 892-11012, 892-11012, 9706685
|
| 14. |
84024397
|
[1] |
BEARING HOUSING,50.5 mm ID x 155 mm OD x 40.6 mm
|
PLO
|
| 15. |
84007335
|
[1] |
SPHERICAL BEARING,45mm ID x 85mm OD x 23mm W
|
PLO
|
| 16. |
80370021
|
[1] |
CIRCLIP
|
ZED
Superseded by part number: 370021
|
| 17. |
84025458
|
[1] |
BUSHING,45mm ID x 84.5mm OD x 12mm L
|
PLO
|
| 18. |
84062679
|
[1] |
GEAR
|
PLO
|
| 18. |
84024252
|
[1] |
DRIVEN SPROCKET
|
PLO
|
| 20. |
80327084
|
[1] |
WASHER
|
PLO
Superseded by part number: 327084
|
| 21. |
80140046
|
[1] |
WASHER
|
ZED
12MM Superseded by part number: 140046
|
| 22. |
80120106
|
[4] |
SCREW,M8 x 40mm
|
ZED
M16x30 Superseded by part number: 16044024
|
| 23. |
84025167
|
[2] |
PLATE
|
PLO
|
