凯斯零件查询(RBX341) - SILAGE PACK ROUND BALER (3/03-12/05) (14.02[01]) - IDLER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
556 次

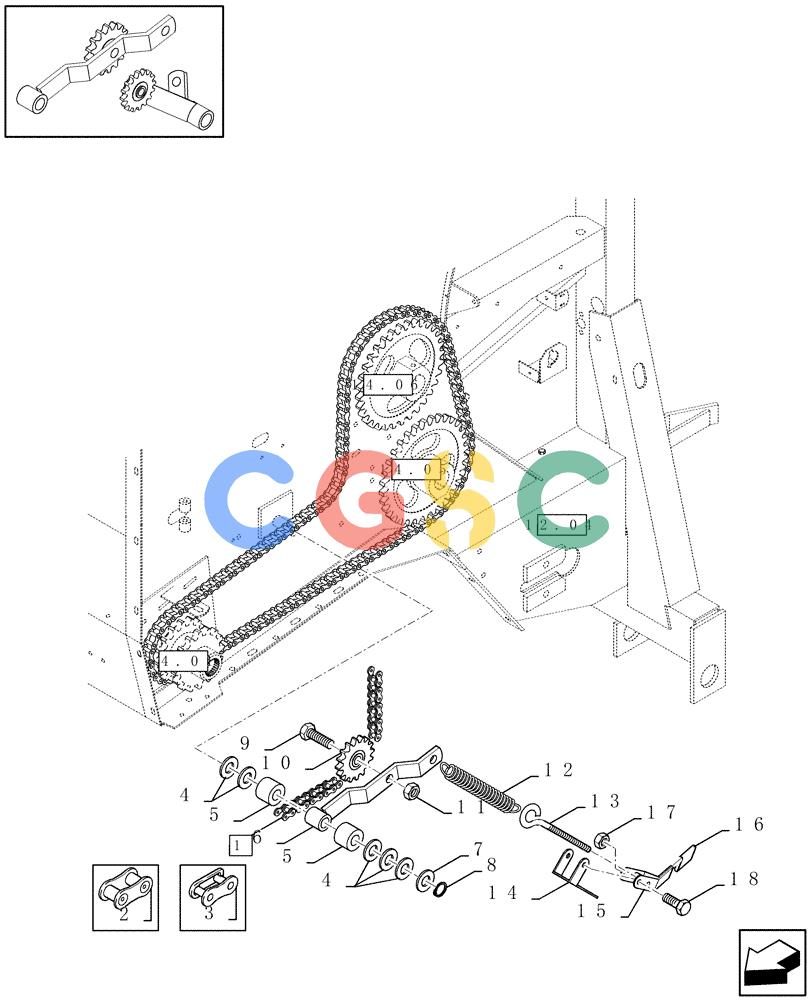

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84429994
|
[1] |
CHAIN,80 HV, 100 Links x 25.4mm = 2540mm
|
PLO
(2,3)
|
| 2. |
89850043
|
[1] |
LINK CHAIN
|
PLO
Superseded by part number: 9850043
|
| 3. |
89850045
|
[1] |
LINK CHAIN
|
ZED
Superseded by part number: 9850045
|
| 4. |
80140103
|
[1] |
WASHER
|
ZED
Superseded by part number: 140229
|
| 5. |
84024582
|
[2] |
BUSHING
|
PLO
|
| 6. |
84025475
|
[1] |
IDLER PINION
|
PLO
|
| 7. |
80140104
|
[1] |
WASHER
|
ZED
Superseded by part number: 140104
|
| 8. |
80370002
|
[1] |
CIRCLIP
|
ZED
Superseded by part number: 370002
|
| 9. |
80374890
|
[1] |
SCREW
|
ZED
M20x60 Superseded by part number: 374890
|
| 10. |
84024220
|
[1] |
DRIVEN SPROCKET,12T
|
PLO
|
| 11. |
80380424
|
[1] |
LOCK NUT
|
ZED
M20 Superseded by part number: 380424
|
| 12. |
89814943
|
[1] |
SPRING
|
ZED
|
| 13. |
84024416
|
[1] |
BOLT
|
PLO
|
| 14. |
84024408
|
[1] |
VOLTAGE REGULATOR
|
PLO
|
| 15. |
84024415
|
[1] |
LEVER
|
PLO
|
| 16. |
80357545
|
[1] |
HANDLE GRIP
|
ZED
Superseded by part number: 357545
|
| 17. |
80100037
|
[2] |
NUT,M10 x 1.5, Class 8
|
ZED
Superseded by part number: 100037
|
| 181. |
80120109
|
[2] |
SCREW
|
ZED
M10x20 Superseded by part number: 43138
|
