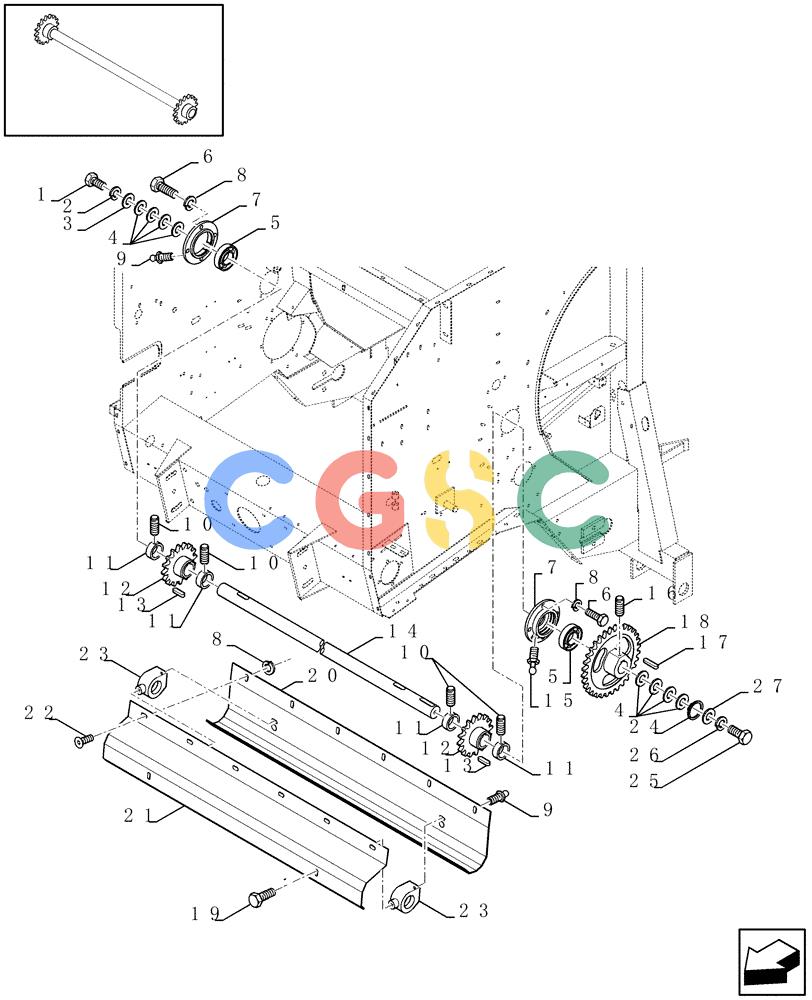

凯斯零件查询(RBX341) - SILAGE PACK ROUND BALER (3/03-12/05) (14.06[01]) - DRIVE ROLL BARS Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
168 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
80120119
|
[1] |
SCREW
|
ZED
M12x20 Superseded by part number: 43151
|
| 2. |
80140046
|
[1] |
WASHER
|
ZED
12MM Superseded by part number: 140046
|
| 3. |
84025181
|
[1] |
WASHER
|
PLO
13MM
|
| 4. |
84005527
|
[1] |
WASHER,46mm ID x 70mm OD x 1mm Thk
|
ZED
|
| 5. |
84024179
|
[2] |
BALL BEARING,45mm ID x 90mm OD x 22mm W
|
PLO
|
| 6. |
80043139
|
[8] |
BOLT,M10 x 25mm
|
ZED
Superseded by part number: 11106231
|
| 7. |
84024183
|
[2] |
BEARING HOUSING
|
PLO
|
| 8. |
80140045
|
[16] |
WASHER
|
ZED
10MM Superseded by part number: 140045
|
| 9. |
321204
|
[3] |
LUBE NIPPLE,M6 x 1.0 x 16mm OAL
|
ZED
|
| 10. |
80300480
|
[4] |
SET SCREW
|
ZED
M10x10 Superseded by part number: 300480
|
| 11. |
84024124
|
[4] |
RING
|
PLO
|
| 12. |
84024115
|
[2] |
DRIVEN SPROCKET
|
PLO
|
| 13. |
80170066
|
[2] |
KEY
|
ZED
Superseded by part number: 170066
|
| 14. |
84068801
|
[1] |
SHAFT
|
PLO
|
| 15. |
80323787
|
[1] |
LUBE NIPPLE
|
ZED
Superseded by part number: N13505
|
| 16. |
80300482
|
[1] |
STUD
|
ZED
M10x20 Superseded by part number: 82895780
|
| 17. |
80323624
|
[1] |
KEY
|
ZED
Superseded by part number: 323624
|
| 18. |
84024177
|
[1] |
DRIVEN SPROCKET
|
PLO
|
| 19. |
80412671
|
[2] |
SCREW
|
PLO
M10x20 Superseded by part number: 725583
|
| 20. |
84058100
|
[1] |
SUPPORT
|
PLO
|
| 21. |
84058102
|
[1] |
SUPPORT
|
PLO
|
| 22. |
80320772
|
[6] |
SCREW
|
ZED
M10x25 Superseded by part number: 320772
|
| 23. |
84058103
|
[2] |
GUIDE
|
PLO
|
| 24. |
80370007
|
[1] |
CIRCLIP
|
ZED
Superseded by part number: 370007
|
| 25. |
80120110
|
[1] |
BOLT,M12 x 1.5 x 25mm, Cl 8.8
|
ZED
M10x20 Superseded by part number: 80043139
|
| 27. |
84025233
|
[1] |
WASHER
|
PLO
11MM
|
