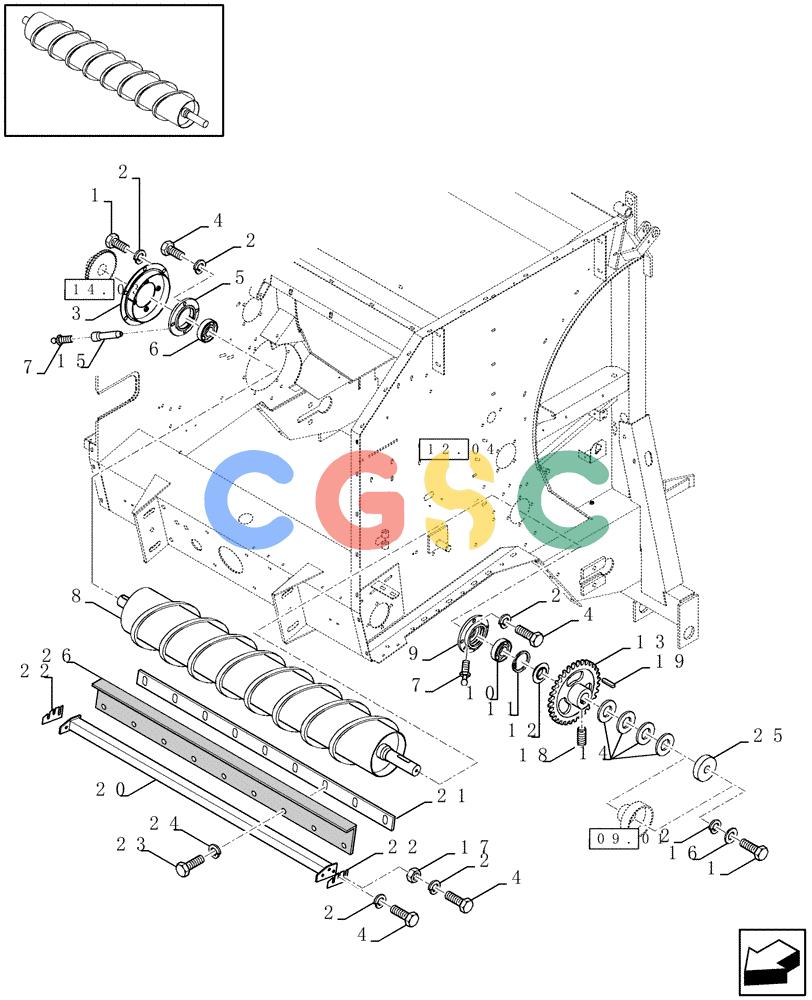

凯斯零件查询(RBX341) - SILAGE PACK ROUND BALER (3/03-12/05) (14.05[01]) - STRIPPER ROLL Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
275 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
80120109
|
[6] |
SCREW
|
ZED
M10x20 Superseded by part number: 43138
|
| 2. |
80140045
|
[1] |
WASHER
|
ZED
10MM Superseded by part number: 140045
|
| 3. |
84822297
|
[1] |
PLATE
|
PLO
, Serial Range: -C667 Superseded by part number: 84820685
|
| 3. |
84820685
|
[1] |
PLATE
|
PLO
, Start Serial: D668
|
| 4. |
80043139
|
[1] |
BOLT,M10 x 25mm
|
ZED
Superseded by part number: 11106231
|
| 5. |
84024183
|
[1] |
BEARING HOUSING
|
PLO
|
| 6. |
84024179
|
[1] |
BALL BEARING,45mm ID x 90mm OD x 22mm W
|
PLO
|
| 7. |
80323787
|
[2] |
LUBE NIPPLE
|
ZED
Superseded by part number: N13505
|
| 8. |
84078585
|
[1] |
ROLLER
|
PLO
|
| 9. |
84024397
|
[1] |
BEARING HOUSING,50.5 mm ID x 155 mm OD x 40.6 mm
|
PLO
|
| 10. |
84007335
|
[1] |
SPHERICAL BEARING,45mm ID x 85mm OD x 23mm W
|
PLO
|
| 11. |
80370021
|
[1] |
CIRCLIP
|
ZED
Superseded by part number: 370021
|
| 12. |
84024432
|
[1] |
SPACER,45mm ID x 84.5mm OD x 18.6mm L
|
PLO
|
| 13. |
84024177
|
[1] |
DRIVEN SPROCKET
|
PLO
|
| 14. |
84005527
|
[1] |
WASHER,46mm ID x 70mm OD x 1mm Thk
|
ZED
|
| 15. |
84429982
|
[1] |
EXTENSION
|
PLO
|
| 16. |
84025233
|
[1] |
WASHER
|
PLO
|
| 17. |
100016
|
[6] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 18. |
80300482
|
[1] |
STUD
|
ZED
M10x20 Superseded by part number: 82895780
|
| 19. |
80323624
|
[1] |
KEY
|
ZED
14x9x63 Superseded by part number: 323624
|
| 20. |
84078599
|
[1] |
SUPPORT
|
PLO
|
| 21. |
84025544
|
[1] |
KNIFE
|
PLO
, Serial Range: -C639 Superseded by part number: 84790400
|
| 21. |
84790400
|
[1] |
KNIFE
|
PLO
, Start Serial: D640
|
| 22. |
84429975
|
[1] |
ADJUSTING PLATE
|
PLO
|
| 23. |
80120103
|
[9] |
BOLT,M8 x 1.25 x 16mm, Cl 8.8
|
ZED
M8x16 Superseded by part number: 16043224
|
| 24. |
80322358
|
[9] |
LOCK WASHER
|
ZED
8MM Superseded by part number: 322358
|
| 25. |
84025232
|
[1] |
SPACER,47mm ID x 57mm OD x 30mm L
|
PLO
|
| 26. |
84607007
|
[1] |
CANVAS
|
PLO
, Serial Range: -C639
|
