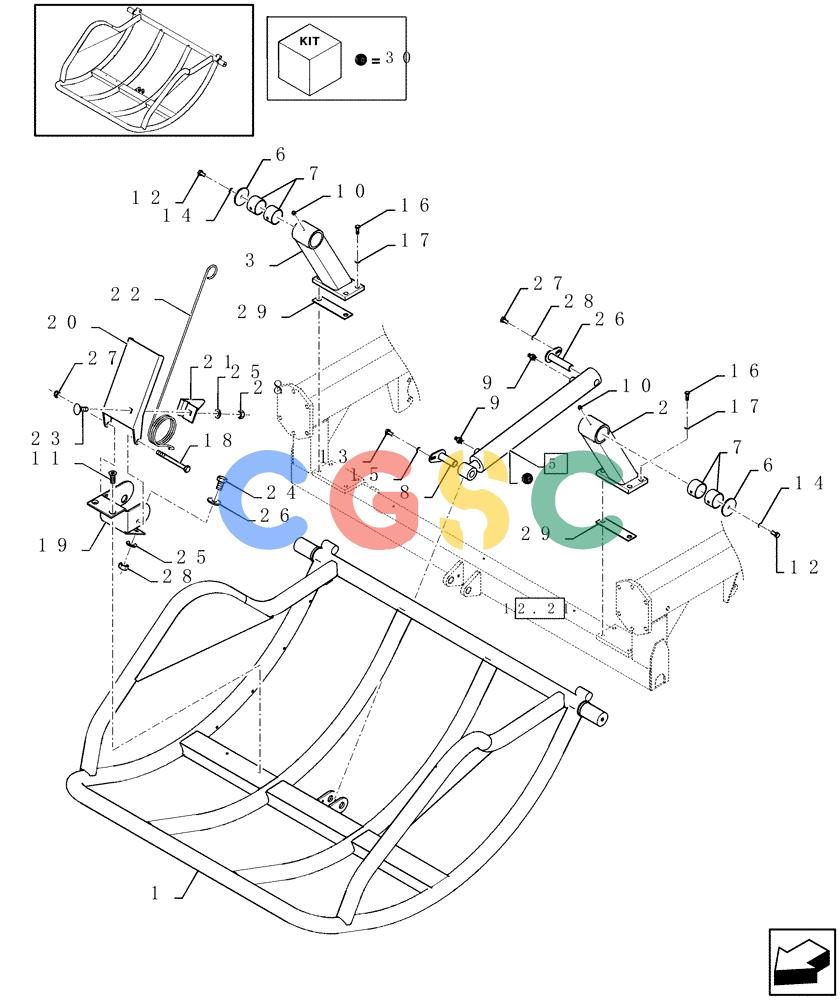

凯斯零件查询(RBX341) - SILAGE PACK ROUND BALER (3/03-12/05) (15.21A[01]) - BASKET GROUP - D652 Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
171 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84821003
|
[1] |
BASKET ASSY
|
PLO
Superseded by part number: 84972900
|
| 2. |
84820978
|
[1] |
SUPPORT
|
PLO
|
| 3. |
84820979
|
[1] |
SUPPORT
|
PLO
|
| 4. |
-
|
[1] |
, Serial Range: (18-25)
|
|
| 5. |
84818031
|
[1] |
HYDRAULIC CYLINDER
|
PLO
(30) Superseded by part number: 87540056
|
| 6. |
84821014
|
[2] |
WASHER
|
PLO
|
| 7. |
84821019
|
[4] |
SLEEVE
|
PLO
|
| 8. |
84821010
|
[1] |
PIN
|
PLO
|
| 9. |
80395019
|
[2] |
HYD CONNECTOR
|
ZED
Superseded by part number: 395019
|
| 10. |
321204
|
[2] |
LUBE NIPPLE,M6 x 1.0 x 16mm OAL
|
ZED
|
| 11. |
84814921
|
[2] |
HEX SOC SCREW,CSS, M8 x 25mm, Cl 10.9
|
ZED
M8x25 Superseded by part number: 14442134
|
| 12. |
80043139
|
[2] |
BOLT,M10 x 25mm
|
ZED
Superseded by part number: 11106231
|
| 13. |
80120103
|
[1] |
BOLT,M8 x 1.25 x 16mm, Cl 8.8
|
ZED
M8x16 Superseded by part number: 16043224
|
| 14. |
80140045
|
[2] |
WASHER
|
ZED
10MM Superseded by part number: 140045
|
| 15. |
80322358
|
[1] |
LOCK WASHER
|
ZED
8MM Superseded by part number: 322358
|
| 16. |
80043168
|
[8] |
BOLT
|
ZED
M16x40 Superseded by part number: 43168
|
| 17. |
80140048
|
[8] |
WASHER
|
ZED
16MM Superseded by part number: 140048
|
| 18. |
80120065
|
[1] |
SCREW
|
ZED
M8x110 Superseded by part number: 16045421
|
| 19. |
84823218
|
[1] |
SUPPORT
|
PLO
|
| 20. |
84823219
|
[1] |
DEFLECTOR
|
PLO
|
| 21. |
84823220
|
[1] |
BRACKET
|
PLO
|
| 22. |
84320184
|
[1] |
SPRING
|
PLO
|
| 23. |
80120028
|
[1] |
M8x20
|
SCREW
|
| 24. |
80043127
|
[1] |
SCREW,M8 x 25mm
|
ZED
M8x25 Superseded by part number: 43127
|
| 26. |
80378243
|
[1] |
WASHER
|
ZED
Superseded by part number: 378243
|
| 27. |
832-46408
|
[1] |
NUT,M8 x 1.25, Cl 8
|
CAS
Superseded by part number: 86528579
|
| 29. |
84821139
|
[1] |
SHIM
|
PLO
|
| 30. |
84819501
|
[1] |
SEAL KIT
|
PLO
|
| 28. |
89706690
|
[1] |
NUT,M8, Cl 8
|
ZED
Superseded by part number: 43362
|
