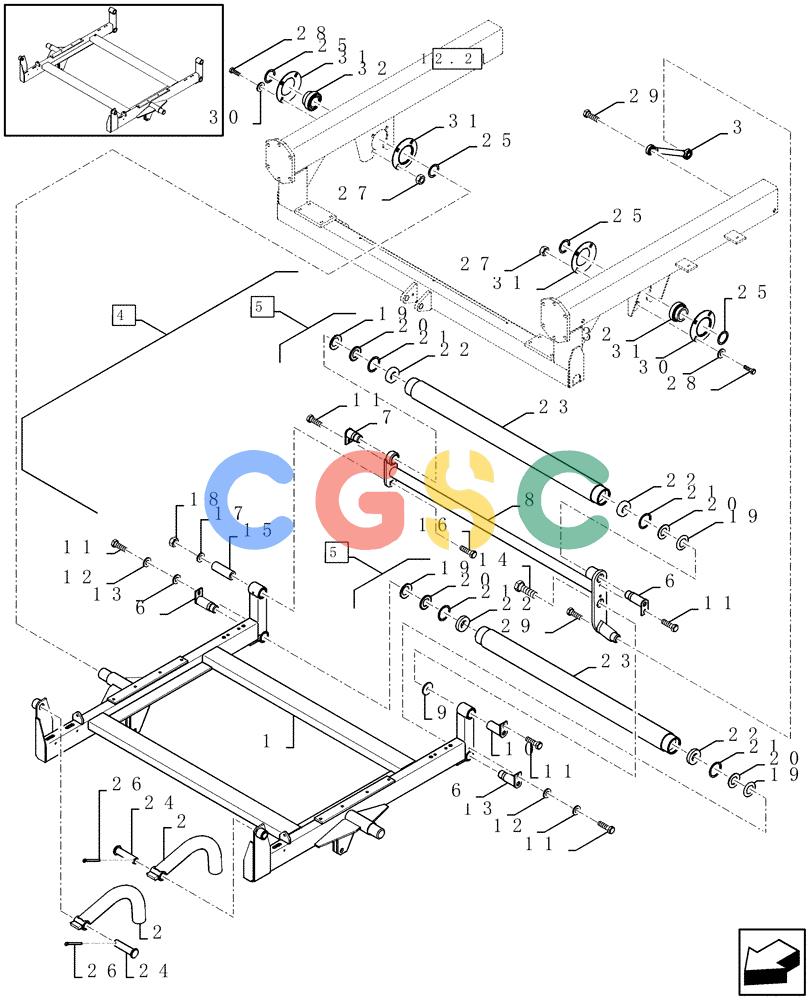

凯斯零件查询(RBX341) - SILAGE PACK ROUND BALER (3/03-12/05) (15.22[01]) - TABLE - C651 Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
202 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84821051
|
[1] |
FRAME
|
PLO
|
| 2. |
84821059
|
[2] |
GUIDE
|
PLO
|
| 3. |
84821065
|
[1] |
ROD
|
PLO
|
| 4. |
-
|
[1] |
, Serial Range: (5-18)
|
|
| 5. |
84820956
|
[2] |
ROLLER
|
PLO
, Serial Range: (19-23)
|
| 6. |
84820957
|
[3] |
PIN
|
PLO
|
| 7. |
84821030
|
[1] |
PIN
|
PLO
|
| 8. |
84821053
|
[1] |
SUPPORT
|
PLO
|
| 9. |
84821031
|
[1] |
WASHER
|
PLO
|
| 10. |
84820997
|
[1] |
PIN
|
PLO
|
| 11. |
80043139
|
[5] |
BOLT,M10 x 25mm
|
ZED
Superseded by part number: 11106231
|
| 12. |
80394629
|
[5] |
LOCK WASHER
|
ZED
10.5MM Superseded by part number: 394629
|
| 13. |
80140045
|
[5] |
WASHER
|
ZED
10MM Superseded by part number: 140045
|
| 14. |
80300388
|
[1] |
SCREW,M12 x 25mm
|
ZED
M12x35 Superseded by part number: 300388
|
| 15. |
84821109
|
[1] |
BUSHING
|
PLO
|
| 16. |
322362
|
[1] |
CARRIAGE BOLT,M16 x 100mm, Cl 8.8
|
NH
Superseded by part number: 80322362
|
| 17. |
80140048
|
[1] |
WASHER
|
ZED
16MM Superseded by part number: 140048
|
| 18. |
100020
|
[1] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 19. |
84820954
|
[4] |
COVER
|
PLO
|
| 20. |
84820955
|
[4] |
SEAL,39mm ID x 70mm OD x 5mm Thk
|
PLO
|
| 21. |
80370018
|
[4] |
SNAP RING
|
ZED
Superseded by part number: 370018
|
| 22. |
80025953
|
[4] |
BALL BEARING
|
ZED
Superseded by part number: 84438926
|
| 23. |
NSS
|
[2] |
NOT SOLD SEPARAT
|
CON
|
| 24. |
84821110
|
[2] |
PIN
|
PLO
|
| 25. |
84821111
|
[6] |
WASHER
|
PLO
|
| 26. |
80300596
|
[2] |
ROLL PIN
|
NH
|
| 27. |
80100038
|
[8] |
NUT
|
ZED
M12 Superseded by part number: 100038
|
| 28. |
80300389
|
[8] |
BOLT,M12 x 35mm
|
ZED
M12x35 Superseded by part number: 628-12035
|
| 29. |
89847023
|
[2] |
SCREW
|
ZED
M12x50 Superseded by part number: 9847023
|
| 30. |
86511324
|
[8] |
WASHER,13mm ID x 24mm OD x 2.5mm Thk
|
NH
Superseded by part number: 87364
|
| 31. |
84821116
|
[4] |
FLANGE
|
PLO
|
| 32. |
84821117
|
[2] |
BALL BEARING
|
PLO
|
