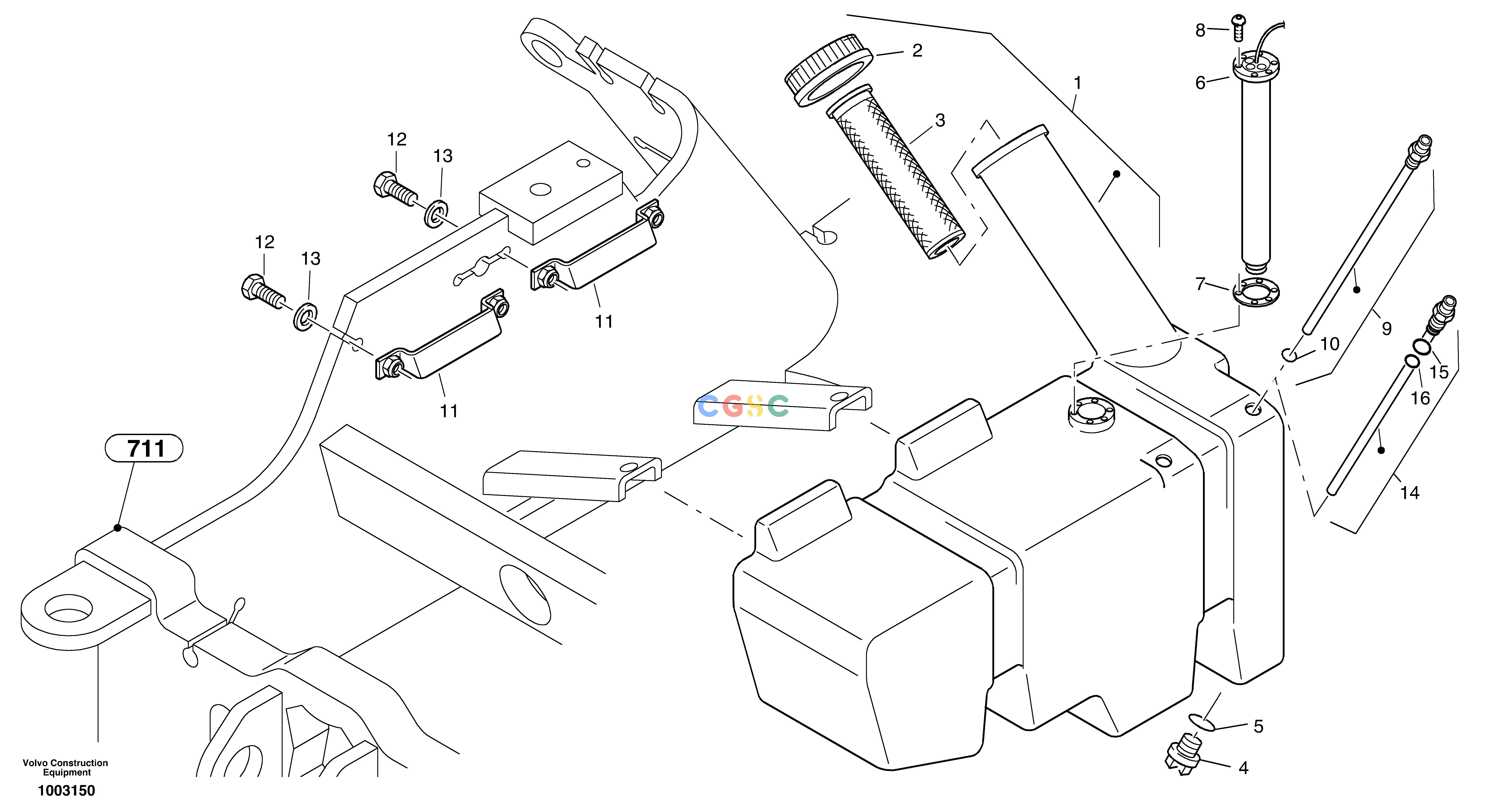

沃尔沃零件查询L25B Fuel tankTYPE 175 SER NO - 0499 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
140 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11370536
|
[1] |
Fuel tank
|
-1750262
|
| 1. |
VOE11309003
|
[1] |
Conversion kit
|
1750263-
|
| 2. |
VOE11370262
|
[1] |
Filler cap
|
|
| 3. |
VOE11370263
|
[1] |
Fuel Strainer
|
|
| 4. |
ZM7099428
|
[1] |
Screw plug
|
M18X1,5
|
| 5. |
ZM1086268
|
[1] |
O-ring
|
16X3
|
| 6. |
ZM2805649
|
[1] |
Fuel level sensor
|
|
| 7. |
ZM2906069
|
[1] |
Gasket
|
|
| 8. |
VOE11305438
|
[6] |
Screw
|
M4X12
|
| 9. |
ZM2816077
|
[1] |
Suction line
|
-1750262
|
| 10. |
ZM2906070
|
[1] |
O-ring
|
|
| 11. |
VOE11305412
|
[2] |
Retainer
|
|
| 12. |
VOE983245
|
[4] |
Hexagon screw
|
M8X40
|
| 13. |
VOE11117464
|
[4] |
Plain washer
|
8,4X22X2
|
| 14. |
VOE11306081
|
[1] |
Suction pipe
|
1750263-1751710
|
| |
VOE11308933
|
[1] |
Suction pipe
|
1751711 -
|
| 15. |
VOE11370540
|
[1] |
O-ring
|
22x5,5
|
| 16. |
VOE11370541
|
[1] |
O-ring
|
14x5
|
