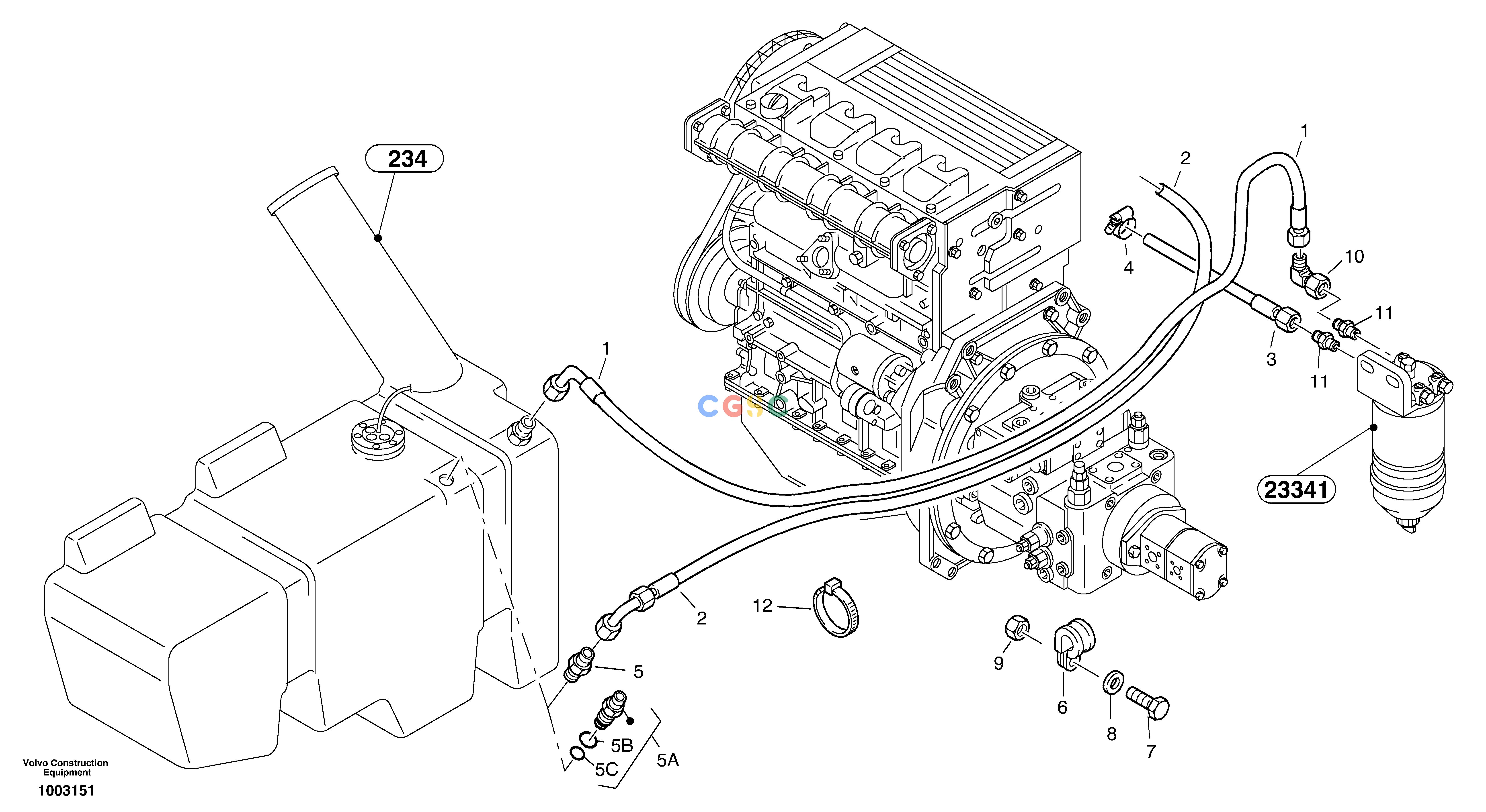

沃尔沃零件查询L25B Fuel pipesTYPE 175 SER NO - 0499 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
948 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11305405
|
[1] |
Fuel hose
|
|
| 2. |
VOE11305406
|
[1] |
Fuel hose
|
|
| 3. |
ZM2811483
|
[1] |
Fuel hose
|
|
| 4. |
VOE943470
|
[1] |
Hose clamp
|
|
| 5. |
ZM2811249
|
[1] |
Pipe end
|
-1750262
|
| 5A. |
VOE11306079
|
[1] |
Fitting
|
1750263-
|
| 5B. |
VOE11370540
|
[1] |
O-ring
|
22x5,5, 1750263-
|
| 5C. |
VOE11370541
|
[1] |
O-ring
|
14x5, 1750263-
|
| 6. |
VOE952634
|
[1] |
Clamp
|
|
| 7. |
VOE13948356
|
[1] |
Flange screw
|
|
| 8. |
VOE60110304
|
[1] |
Washer
|
|
| 9. |
VOE993868
|
[1] |
Hexagon nut
|
|
| 10. |
VOE13945357
|
[1] |
Elbow nipple
|
|
| 11. |
VOE11306928
|
[2] |
Stud
|
|
| 12. |
VOE14016673
|
[1] |
Strip clamp
|
|
