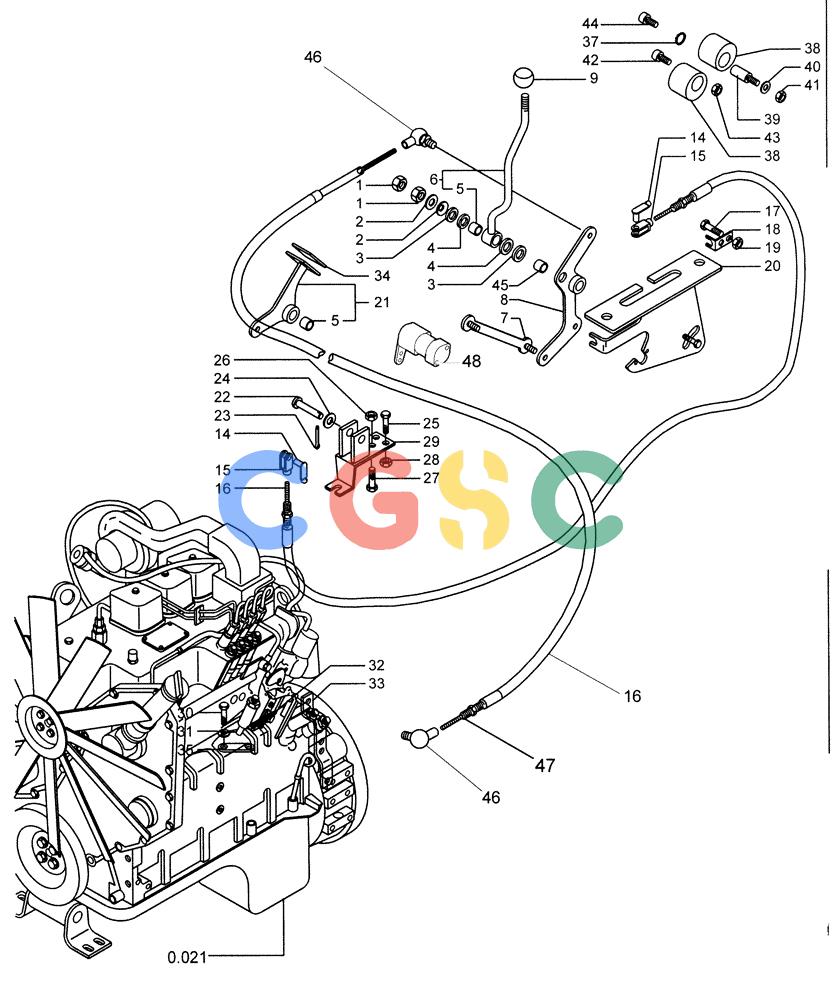

纽荷兰零件查询(DC100) - CRAWLER DOZER (N.A. VERSION) (4/00-) (0.520[01E]) - THROTTLE CONTROL DC100 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
1017 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76598525 | [2] | NUT | MAC Superseded by part number: 62275 |
| 2. | 76598526 | [2] | SPRING | MAC |
| 3. | 76598527 | [2] | LOCK WASHER | MAC |
| 4. | 76598528 | [2] | LOCK WASHER | MAC |
| 5. | 76598529 | [2] | BUSHING | MAC |
| 6. | 76598530 | [1] | THROTTLE CONTROL | MAC |
| 7. | 76598532 | [1] | TIE-ROD | MACTIE |
| 8. | 76598536 | [1] | LEVER | MAC |
| 9. | 76590910 | [1] | KNOB | MAC |
| 14. | 76598539 | [1] | PIN | MAC Superseded by part number: 5132588 |
| 15. | 76598540 | [2] | YOKE | MACFORK Superseded by part number: 5132588 |
| 16. | 76592831 | [2] | CABLE | MAC |
| 17. | 76590845 | [1] | SCREW | MAC |
| 18. | 76598542 | [1] | SUPPORT | MAC |
| 19. | 76590848 | [1] | NUT | MAC Superseded by part number: 15503611 |
| 20. | 76598543 | [1] | SUPPORT | MAC |
| 21. | 76598544 | [1] | PEDAL | MAC |
| 22. | 76598545 | [1] | PEDAL | MAC |
| 23. | 76598546 | [1] | LOCK KEY | MACCOTTER Superseded by part number: 10796501 |
| 24. | 76595955 | [1] | WASHER | MAC Superseded by part number: 86511327 |
| 25. | 76590928 | [2] | SCREW | MAC Superseded by part number: 16043824 |
| 26. | 76598537 | [1] | SCREW | MAC Superseded by part number: 76605523 |
| 27. | 76598547 | [1] | SCREW | MAC |
| 29. | 76598541 | [1] | SUPPORT | MAC |
| 31. | 76598290 | [1] | LOCK WASHER | MACLOCK Superseded by part number: 11194079 |
| 32. | 76598548 | [1] | SPRING | MAC |
| 33. | 76598549 | [1] | LEVER | MACLEVER |
| 34. | 76598550 | [1] | RUBBER PEDAL PAD | MACPEDAL COVERING |
| 35. | 76598551 | [1] | SUPPORT | MAC |
| 37. | 10516674 | [1] | LOCK WASHER,M8 | TTF Superseded by part number: 83990583 |
| 38. | 76598239 | [2] | LOCK WASHER | MAC Superseded by part number: 76605521 |
| 39. | 76598538 | [1] | PIN | MAC Superseded by part number: 76605522 |
| 40. | 76590716 | [2] | WASHER | MAC |
| 41. | 76590715 | [1] | NUT | MAC |
| 42. | 76601107 | [1] | SCREW | MACSCREW |
| 45. | 76606081 | [1] | BUSHING | MACBUSHING |
| 46. | 76593028 | [2] | ARTICULATION | MAC Superseded by part number: 154104301 |
| 48. | 76590916 | [1] | POTENTIOMETER | MAC |
