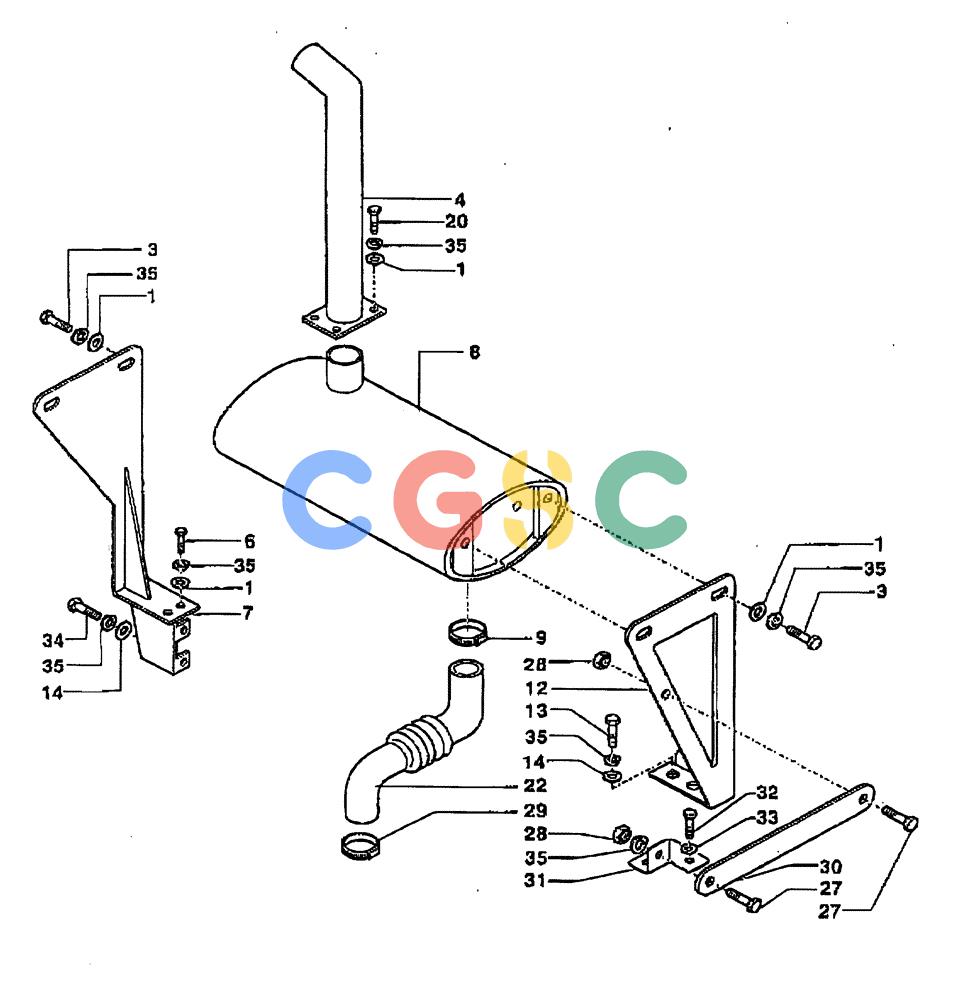

纽荷兰零件查询(DC100) - CRAWLER DOZER (N.A. VERSION) (4/00-) (0.530[01E]) - MUFFLER DC100 (AFTER JULY 2000 ) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
902 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76590716 | [10] | WASHER | MAC |
| 3. | 76590946 | [5] | SCREW | LEC |
| 4. | 76595986 | [1] | EXHAUST SYSTEM PIPE | MACTUBE, EXHAUST |
| 6. | 76606982 | [2] | SCREW | MAC Superseded by part number: 9515003 |
| 7. | 76598213 | [1] | SUPPORT | MAC |
| 8. | 76598726 | [1] | MUFFLER | MAC |
| 9. | 76605855 | [1] | COLLAR | MACCLAMP |
| 12. | 76598238 | [1] | SUPPORT | MAC |
| 13. | 76607069 | [2] | SCREW | MAC Superseded by part number: 626-12035 |
| 14. | 76590728 | [2] | WASHER | MAC Superseded by part number: 895-11012 |
| 20. | 76590719 | [4] | SCREW | MAC Superseded by part number: 9706704 |
| 22. | 76605856 | [1] | RIGID TUBE | MACTUBE, FLEX |
| 23. | NS | [1] | NOT SERVICED | BASELBOW - CUMS ENGINE PART (XS9018) |
| 24. | 76605858 | [1] | SCREW | MAC |
| 25. | 76598290 | [1] | LOCK WASHER | MACWASHER Superseded by part number: 11194079 |
| 26. | 76605859 | [1] | SUPPORT | MAC Superseded by part number: 76606960, 76606961 |
| 28. | 76590715 | [1] | NUT | MAC |
| 29. | 76605857 | [1] | COLLAR | MACCLAMP Superseded by part number: 589165 |
| 30. | 76606960 | [1] | SUPPORT | MAC |
| 31. | 76606961 | [1] | SUPPORT | MACSupprt |
| 32. | 76607277 | [2] | SCREW | MAC |
| 33. | 76590713 | [2] | WASHER | MAC Superseded by part number: 14496621 |
| 34. | 76592867 | [2] | SCREW | MAC Superseded by part number: 83931335 |
| 35. | 76590721 | [12] | LOCK WASHER | MACWasher,Lock |
