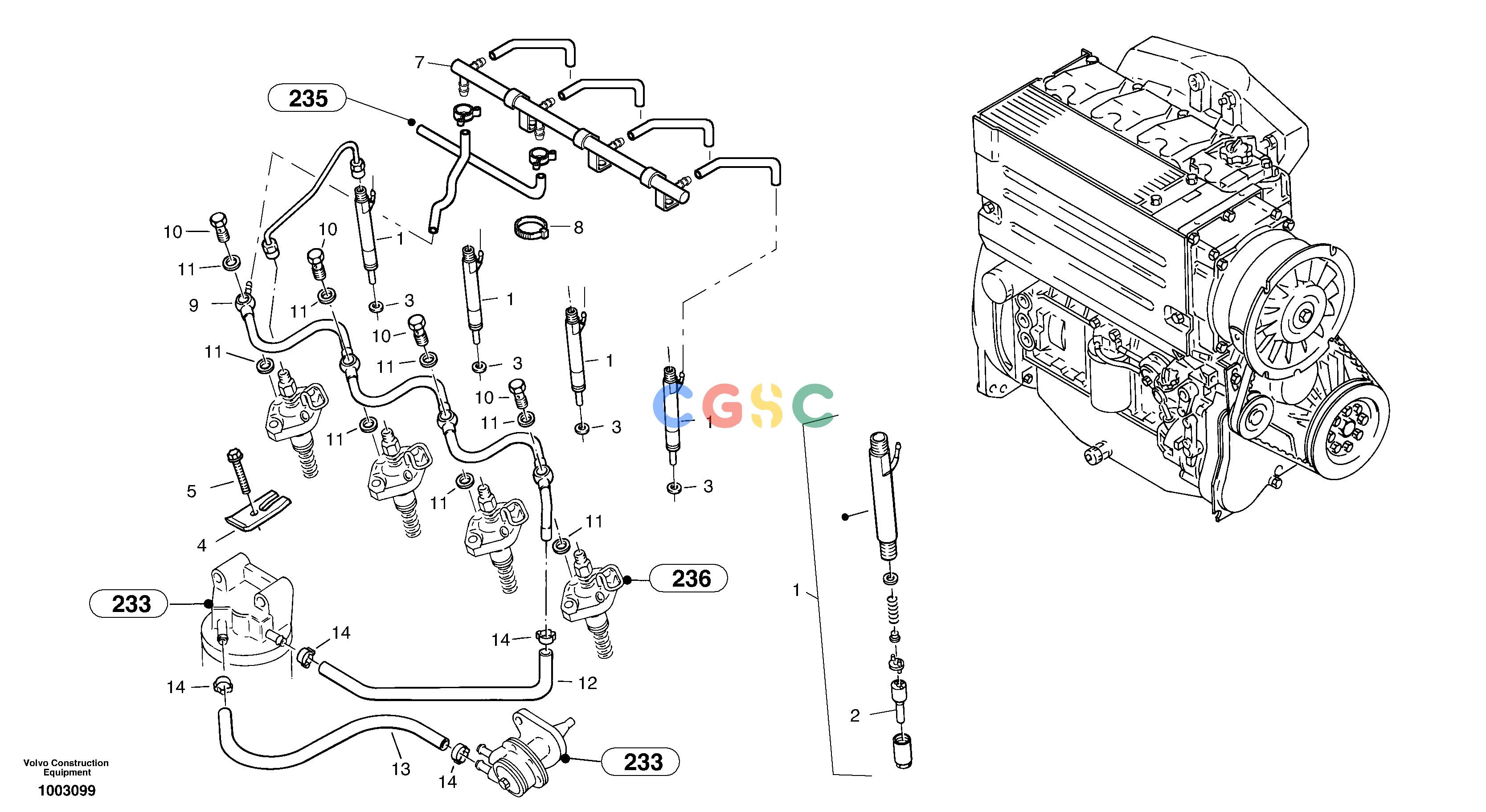

沃尔沃零件查询L25B Injection pipes, Injection valveTYPE 175 SER NO - 0499 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
817 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11370195
|
[4] |
Injection valve
|
|
| 2. |
ZM2904383
|
[4] |
Nozzle element
|
|
| 3. |
VOE11700426
|
[4] |
Sealing ring
|
|
| 4. |
ZM2904139
|
[4] |
Stabilisor
|
|
| 5. |
ZM2908510
|
[4] |
Screw
|
|
| 6. |
ZM2908514
|
[4] |
Injection pipes
|
|
| 7. |
VOE11370196
|
[1] |
Overflow pipe
|
|
| 8. |
ZM2905336
|
[1] |
Holder ribbon
|
|
| 9. |
VOE11370224
|
[1] |
Fuel pipe
|
|
| 10. |
VOE20460936
|
[4] |
Hollow screw
|
|
| 11. |
VOE11370245
|
[8] |
Sealing washer
|
|
| 12. |
VOE60113926
|
[0REQ] |
Hose
|
|
| 13. |
VOE60113926
|
[0REQ] |
Hose
|
|
| 14. |
VOE20914426
|
[4] |
Hose Clamp
|
|
