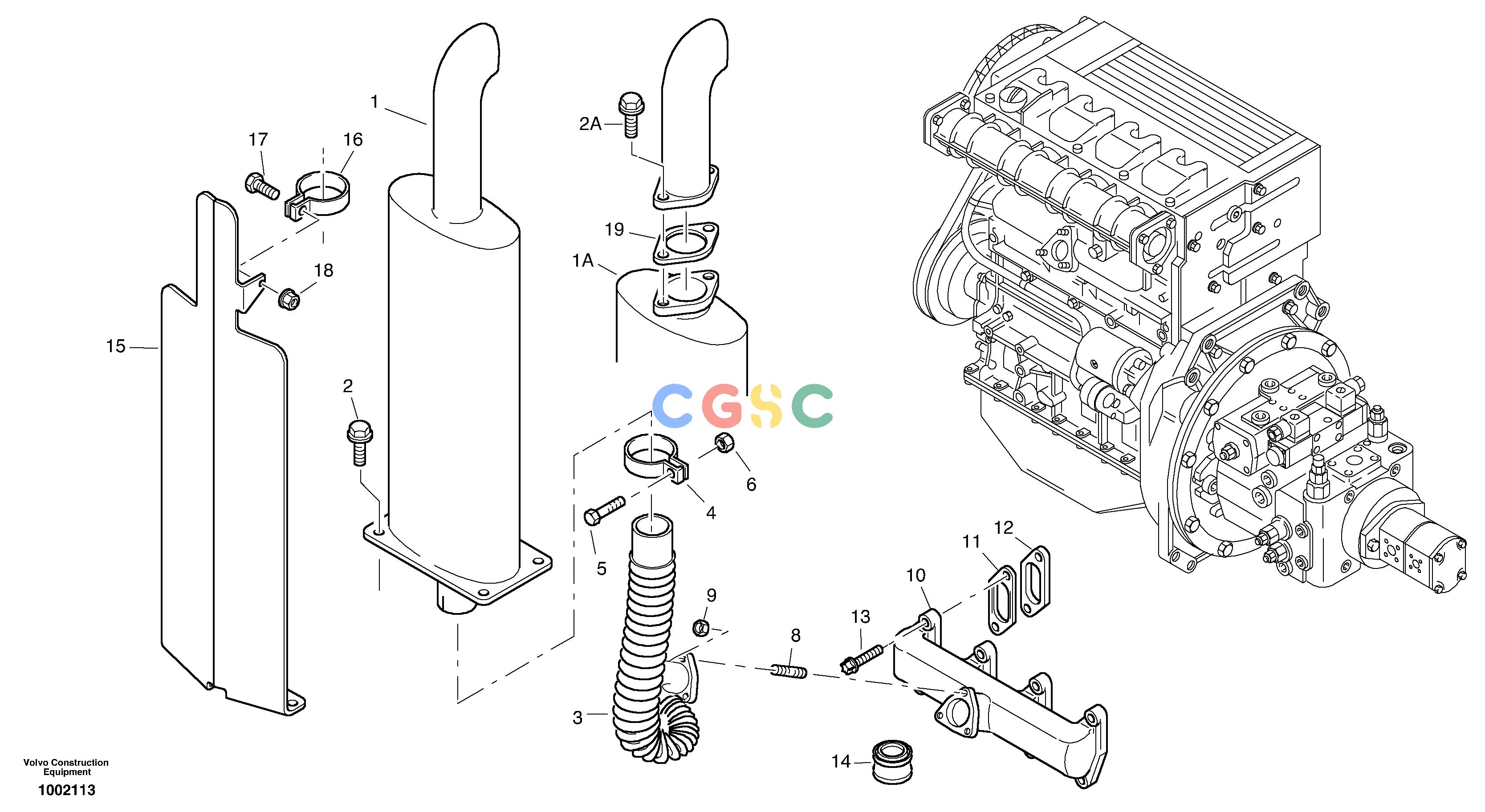

沃尔沃零件查询L25B Exhaust systemTYPE 175 SER NO - 0499 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
246 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11305127
|
[1] |
Silencer
|
|
| 1. |
VOE11306271
|
[REQ] |
Silencer
|
|
| 1A. |
VOE11306051
|
[1] |
Silencer
|
Exhaust pipe, short
|
| 2. |
VOE946441
|
[4] |
Flange screw
|
|
| 2A. |
VOE13965191
|
[2] |
Screw
|
Exhaust pipe, short
|
| 3. |
VOE15215594
|
[1] |
Exhaust hose
|
|
| 4. |
VOE11306075
|
[1] |
Clamp
|
|
| 5. |
VOE13945444
|
[1] |
Screw
|
|
| 6. |
VOE13945408
|
[1] |
Nut
|
|
| 8. |
VOE20450994
|
[3] |
Stud
|
|
| 9. |
ZM7098010
|
[3] |
Nut
|
|
| 10. |
VOE17443562
|
[1] |
Exhaust manifold
|
|
| 11. |
ZM4083910
|
[1] |
Stiffener
|
|
| 12. |
ZM2904038
|
[4] |
Flange
|
|
| 13. |
VOE11370270
|
[8] |
Screw
|
|
| 14. |
ZM2908435
|
[REQ] |
Gasket compound
|
|
| 15. |
VOE11306250
|
[1] |
Shield
|
Canopy
|
| 16. |
VOE11306257
|
[1] |
Clamp
|
Canopy
|
| 17. |
VOE13945444
|
[1] |
Screw
|
Canopy
|
| 18. |
VOE945408
|
[1] |
Flange nut
|
Canopy
|
| 19. |
VOE11306057
|
[1] |
Gasket
|
Exhaust pipe, short
|
