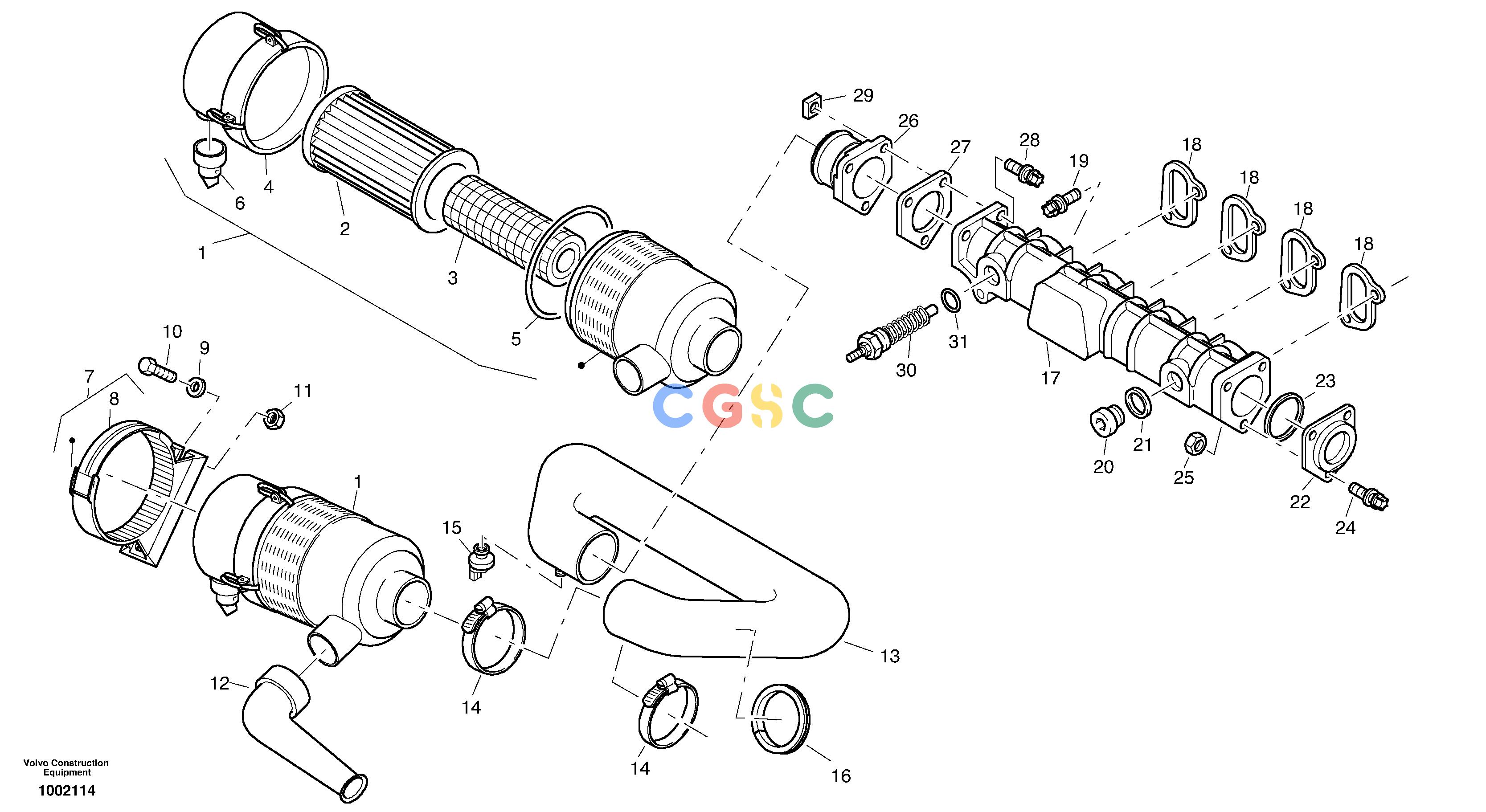

沃尔沃零件查询L25B Suction system, filterTYPE 175 SER NO - 0499 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
468 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2811086
|
[1] |
Air filter
|
|
| 2. |
ZM2903849
|
[1] |
Insert
|
|
| 3. |
ZM2903850
|
[1] |
Insert
|
|
| 4. |
ZM2907907
|
[1] |
Air filter housing
|
|
| 5. |
ZM2907908
|
[1] |
Ring
|
|
| 6. |
ZM2061390
|
[1] |
Dust discharge valve
|
|
| 7. |
ZM2804863
|
[1] |
Retainer
|
|
| 8. |
ZM2903851
|
[1] |
Spring
|
|
| 9. |
VOE13955894
|
[2] |
Washer
|
|
| 10. |
VOE983245
|
[2] |
Hexagon screw
|
|
| 11. |
VOE983303
|
[2] |
Hexagon nut
|
|
| 12. |
ZM2808883
|
[1] |
Exhaust pipe
|
|
| 13. |
VOE11305060
|
[1] |
Suction hose
|
|
| 14. |
VOE943481
|
[2] |
Hose clamp
|
|
| 15. |
ZM2813695
|
[1] |
Switch
|
|
| 16. |
ZM4388103
|
[REQ] |
Moulding
|
300 mm
|
| 17. |
VOE11370225
|
[1] |
Inlet manifold
|
|
| 18. |
ZM2903605
|
[4] |
Gasket
|
|
| 19. |
ZM2900002
|
[8] |
Screw
|
|
| 20. |
ZM7099424
|
[1] |
Lock plug
|
|
| 21. |
VOE20460026
|
[1] |
Sealing ring
|
|
| 22. |
ZM2900004
|
[1] |
Flange
|
|
| 23. |
ZM2900003
|
[1] |
O-ring
|
|
| 24. |
ZM2900005
|
[3] |
Screw
|
|
| 25. |
VOE20405733
|
[3] |
Hexagon nut
|
|
| 26. |
ZM4084010
|
[1] |
Connection piece
|
|
| 27. |
ZM4083990
|
[1] |
Nut
|
|
| 28. |
VOE3586624
|
[3] |
Hexagon screw
|
|
| 29. |
ZM7098451
|
[3] |
Square Nut
|
|
| 30. |
ZM4065780
|
[1] |
Support
|
|
| 31. |
VOE20460026
|
[1] |
Sealing ring
|
|
